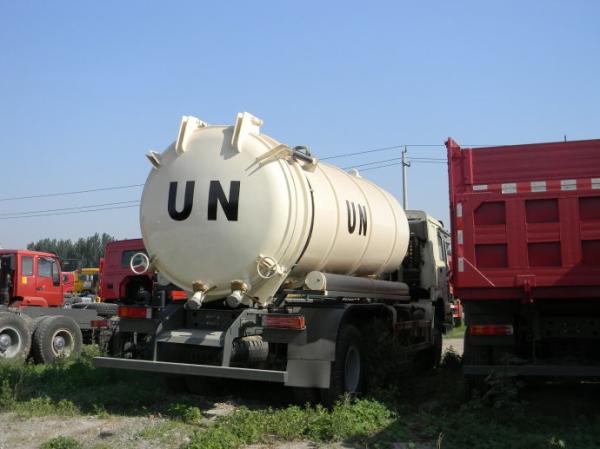

10m3 to 12m3 Full Driving 12 Wheel UN Sewage Tanker Truck with Self Dumping System
Product Description
1. Vacuum Sewage Suction Truck for off road use.
2. High quality truck chassis, as well as famous chinese brand Sinotruk, JAC, Dongfeng, etc
3. Full Wheel Driving with 11R22.5 Tire or 12R22.5, special design for off road.
4. Long last wind cooling vacuum pump in Word Best Brand Italian Jurop pump.
4. 12,000liter tank capacity which can carry about 8Ton to 10ton sewage.
5. Self Tipping system with rear openning door, With rubber pipe for rust resistant.
Sinotruk HOWO Sewage Suction Truck | ||||
Overall Dimension | 9300 x 2500 x 3500 mm | Wheel Base | 4300+1350mm | |
Curb Weight | 9500kg | Loading Weight | 10,000kg | |
Cabin | HW76 Standard Cabin, RHD, 1 Sleeper, Air Conditioner, 3 Passengers, | |||
Engine | SINO Truck Diesel WD615.46, Euro II, 371HP Watering Cooling, Four Stroke, 6 Cylinder in Line, Direct Injection | |||
Gearbox | HW13710, 10 forwards & 2 reverse | |||
Clutch | Reinforced diaphragm clutch, diameter 430mm | |||
Steering Gear | ZF 8118,power steering, hydraulic steering with power assistance | |||
Tire | 11R22.5, all tubeless tires with one spare , 6 pieces with 1 spare | |||
Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels, Auxiliary brake: engine exhaust valve brake | |||
Sewage Suction System | ||||
Sewage Tanker | Capacity | 12 cubic meter | ||
Material | Q235 high tension steel, 5mm Tank body and End Plate, | |||
Dumping System | Middle Tipper | Hydraulic Controlled Rear Door and Middle lifting. | ||
Rear Door | Hydraulic controlled with sewage drain pipe | |||
Pump | High Efficiency Italian Brand Jurop PN84D Vacuum Suction Pump | |||
Vacuum Pressure | -0.092Mpa | |||
Sewage Pipe | 5 meters Rubber Pipe | |||
Other Parts | Water-gas separator, Oil-gas separator, Four way valve, Safety valve, Anti overflow valve, Anti overflow warning device |
Products Show
Sales Service
①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of Sewer cleaning truck I can order from your company?
A: We can supply normal sewege suction truck and high pressure sewer flushing and sewage suction truck, the difference between those two kinds of sewer cleaning truck are water tank and high pressure water pump. Basically speaking, we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.
Q2: What is your production standard of Mobile Advertisement Truck products? Whether your Mobile Advertisement Truck can export to USA, Canada and Europen countries?
A: Our CBU Sewer cleaning truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 50 units sewage suction truck's super structure and 20 units sewage suction sewage trailer to Australia market in the past two years.
Q3: Can we adopts International brand sewage pump for sewage suction truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
