Specifications
Brand Name :
CLW
Model Number :
CLW5089
Certification :
CCC SGS BV
Place of Origin :
SUIZHOU,CHINA
MOQ :
1 Unit
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Units per month
Delivery Time :
30 days after receiving deposit at account
Packaging Details :
naked,waxed,bulk ship,ro-ro
Chassis Brand :
DONGFENG,ISUZU,FAW,HOWO,JAC,JMC
Towing capacity :
3ton,4ton,5ton,5tons,3t,4t,5t,
Color :
White,yellow,Blue as customized
Steering :
LHD,RHD,right hand drive,left hand drive
Engine :
154hp
Wrecker Type :
wheel lift,intergrated,flatbed,lift flatbed
Description

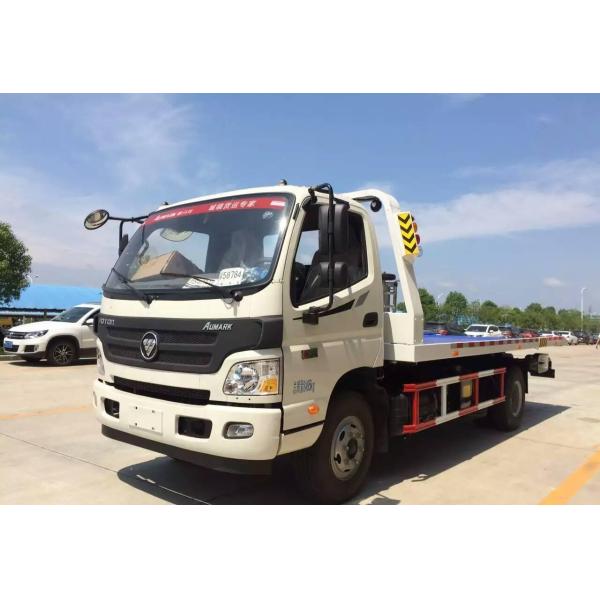

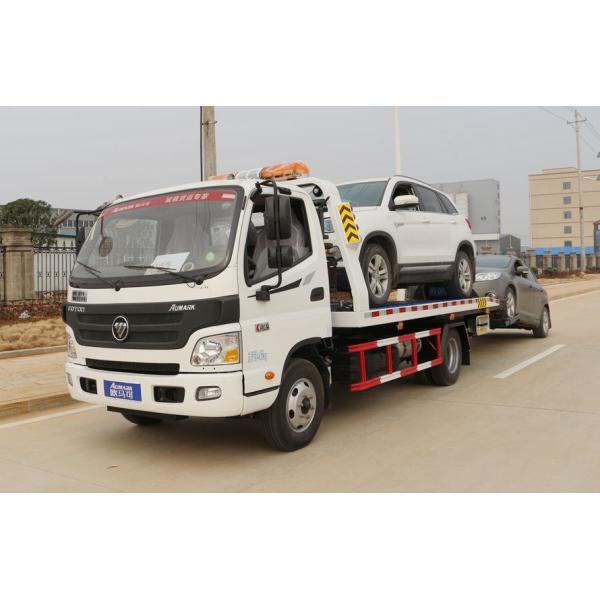

4ton wheel-lift breakdown truck Foton 6-wheel flatbed breakdown tow lorry

Product Description

1) Purpose of 4ton wheel-lift breakdown truck: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.

2) Optional brand of 4ton wheel-lift breakdown truck:howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...

3) Spare parts of 4ton wheel-lift breakdown truck:

Italy brand multi-way valve and balance valve;

Gernamy Roxroth technology hydraulic cylinder and joint;

imported sealing element;

strengthed checked plate

4) Capacity range of 4ton wheel-lift breakdown truck:3ton,4ton,5ton,6ton,8ton,12ton,16ton,20ton,25ton,31ton,40ton,50ton

Specification of 4ton wheel-lift breakdown truck

Item No. Parameters
Overall Dimension 7390x2300x2500 mm
Driving ModelL LHD or RHD
Cabin 2~3 persons
Gross Vehicle Weight 8280 kg
Curb Weight 4820 kg
Loading Weight 3460 Kg
Wheel Base 3800 mm
Front/rear Tread 1210/2470 mm
Approach/Departure Angle 24/12 degree
Front Axle 2840 kg
Rear Axle 5440 kg
Engine Cummins
Engine horsepower 154 HP EURO III
Displacement 3760mL (Diesel)
Max Driving Speed 90 km/h
Tire 7.00-16( 7 pieces)
Loading Plate
Body Material Q235A carbon steel
Lifting Weight 3000kg
Loading Plate Dimensions 4450*2200mm
Loading Plate Glide Range 2700mm
Min. Slope Anglo 8 degree
Steel Rope Length 21m
Winch Speed 5m/min
Towing Weight 4000kg
Wheel Lift Max. Length 1640mm
Wheel Lift Extension 1340mm
Tool Box no. 1
Auxiliary wheel no. 2
“L” bracket no. 1
LOGO Company Logo or any advertisement can be printed on the carriage body according to the customer's design.
4 Ton Wheel Lift Breakdown Wrecker Tow Truck Foton 6 Wheel Flatbed Breakdown Tow Lorry
4 Ton Wheel Lift Breakdown Wrecker Tow Truck Foton 6 Wheel Flatbed Breakdown Tow Lorry
4 Ton Wheel Lift Breakdown Wrecker Tow Truck Foton 6 Wheel Flatbed Breakdown Tow Lorry

Structure drawing

4 Ton Wheel Lift Breakdown Wrecker Tow Truck Foton 6 Wheel Flatbed Breakdown Tow Lorry
Item No. Name
1 chassis
2 Warning lamp
3 Single lamp(white-front clearance lamp;red-rear clearance lamp
4 Winch and steel rope
5 Loading plate
6 Side signal lamp
7 Chain hook
8 Wheel lift
9 “L” bracket
10 Operation and hydraulic system
11 Auxiliary wheel
12 Side guard rail
13 Tool box and accessories
14 PTO and oil pump
15 Witch and operation handle of PTO

Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment

FAQ

Q1: What kinds of wheel-lift breakdown truck I can order from your company?


A: There are various sizes of wheel-lift breakdown truck with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied wheel-lift breakdown truck to any overseas companies?


A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.

Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
