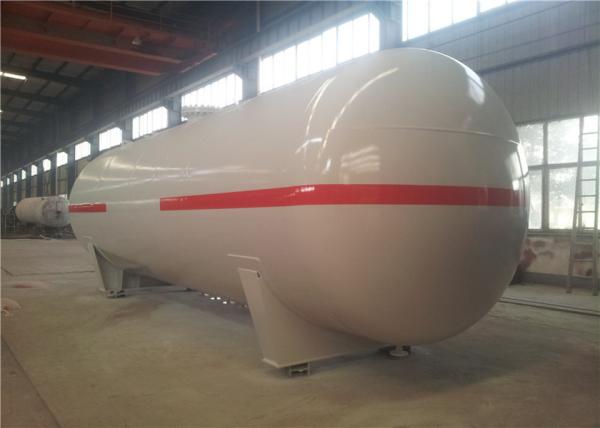

LPG Tanker Large Lpg Storage Tanks 20CBM 10 Tons GB / ASME Standard
LPG Tanker Large Lpg Storage Tanks 20CBM 10 Tons GB / ASME Standard
LPG Tanker Large Lpg Storage Tanks 20CBM 10 Tons GB / ASME Standard
LPG Tanker Large Lpg Storage Tanks 20CBM 10 Tons GB / ASME Standard
LPG Tanker Large Lpg Storage Tanks 20CBM 10 Tons GB / ASME Standard
LPG Tanker Large Lpg Storage Tanks 20CBM 10 Tons GB / ASME Standard
LPG Tanker Large Lpg Storage Tanks 20CBM 10 Tons GB / ASME Standard
LPG Tanker Large Lpg Storage Tanks 20CBM 10 Tons GB / ASME Standard
LPG Tanker Large Lpg Storage Tanks 20CBM 10 Tons GB / ASME Standard
LPG Tanker Large Lpg Storage Tanks 20CBM 10 Tons GB / ASME Standard
LPG Tanker Large Lpg Storage Tanks 20CBM 10 Tons GB / ASME Standard
LPG Tanker Large Lpg Storage Tanks 20CBM 10 Tons GB / ASME Standard
Specifications
Brand Name :
CLW
Model Number :
CLW9070
Certification :
CCC ISO ASME
Place of Origin :
China
MOQ :
1 unit
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300units/month
Delivery Time :
Within 30days after received advance payments
Packaging Details :
Naked package, With waterproof cover
After-sales Service Provided :
Spare parts supply and engineer support
Tanker Volume :
20CBM/20000Liters/10MT/10tons
Tank Material :
Q345R/SA516
Loading material :
Propane/Liquefied petroleum gas/LPG
Design Pressure :
1.77MPa
Medium Density :
20Kg/m³ 450Kg/m³ 460Kg/m³ 480Kg/m³ 500Kg/m³ 520Kg/m³ 540Kg/m³
Mechanical property test :
Tensile, Strength, Impact test
Thickness of Shell and Endplate :
12mm
Description

20CBM 10tons LPG tanker China GB Standard and ASME Standard 10MT 10t LPG storage tanker

Product Description

1. Storage medium: LPG, Liquid ammoina and Aether etc.

2. Effective capacity: 5m³~200m³

3. Manufacturing standards: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008. This tanker is 20CBM/20,000Liters.

4. LPG storage tanker for gas filling plant

Specification of 12CBM LPG Tanker
Volume of Tank(CBM/Liters) 20CBM/20,000Liters
Filling Weight(kg) 9500 kg
Tank Weight(kg) 5050 kg
Thickness of Shell (mm) 12.0 mm
Thickness of End plate (mm) 12.0/14.0 mm
Tank Diameter (mm) 1800 mm
External Dimensions (mm) (length x width x height) 6154*2124*2714 mm
Material of Tank and Main Pressure Parts Carbon Steel Q345R
Filling Medium Liquefied Petroleum Gas ( Propane)
Design Pressure(MPa) 1.77 Mpa
Corrosion Allowance(mm) 1.0 mm
Medium Density(kg/cbm) 420-590 kg/cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Safety accessories for 10CBM/20CBM LPG Tanker
Item Specification Quantity(pc)
Cut-off Valve DN80 J41N-2.5-50/80 1
Cut-off Valve DN50 J41N-2.5-50 6
Cut-off Valve DN25 J41N-2.5-25 2
Needle Valve M20×1.5 J24W-320-DN6 1
Thermometer M33×2 2.5Level WTQ-280 1
Pressure gauge M20×1.5 1.5Level 0～4MPA Y-100T 1
Magnetic reversible level gauge HG21584-95 1
Safety Valve Model A42F-2.5-80
Version Built-in
Diameter(mm) 80
Normal pressure 2.5 Mpa
Re-seating pressure ≥80% of opening pressure
Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge.

Products Show

LPG Tanker Large Lpg Storage Tanks 20CBM 10 Tons GB / ASME Standard

LPG Tanker Large Lpg Storage Tanks 20CBM 10 Tons GB / ASME Standard

LPG Tanker Large Lpg Storage Tanks 20CBM 10 Tons GB / ASME Standard

Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
