Specifications
Brand Name :
CLW
Model Number :
CLW090TXCE
Certification :
ISO, CCC
Place of Origin :
China
MOQ :
1 UNIT
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
280units/month
Delivery Time :
35 days after received advance payments
Packaging Details :
Naked package
Water tanker :
1.5CBM
Garbage tanker :
6.0CBM
Deputy engine :
ISUZU brand
Fan :
China famous brand
Water pump :
China famous brand
Drive model :
4x2/6 Wheels/4*2
Wheelbase(mm) :
3800mm/3815mm/3900mm
Color :
White; Blue; Green; Yellow; Customized
Description

Dongfeng 6CBM Road sweeper road cleaning truck 1.5CBM water tank 6CBM dust tank 4x2 vacuum sweeper truck

Product Description

1. Purpose: The main working place of this vacuum sweeper truck is cement plant, steel-making plant, coal factory and so on.

2. Main parts: Deputy engine, water pump, fan and hydraulic system etc.

3. Deputy engine brand: ISUZU brand

Chassis
Drive Model 4X2, Left hand drive
Vehicle Main Dimensions Dimensions(L x W x H)(mm) 6800*2300*2590
Wheel base (mm) 3800/3815
Overhang (front/rear) (mm) 1015/1815
Wheel track (front/rear) (mm) 1504/1425
Approach/Departure angle(°) 24/13
Weight in KGS Curb Weight (kg) 4880
Front/Rear axle loading(kg) 4000/6000
Max. driving speed(km/h) 90
Engine Model CY4120
Horse Power(HP) 120
Displacement (ml) 3856
Emission standard Euro III
Gearbox 5 forwards & 1 reverse
Steering Gear Power steering, hydraulic steering with power assistance
Brakes Hydraulic oil brake
Tire 8.25-16 tire , 6 + 1(spare tire)
Upper & Equipment
Tank Garbage tank Tank material Stainless steel 304
Tank volume(cbm) 6.0 cbm
Water tank Tank material Stainless steel 304
Tank volume(cbm) 1.0/1.5cbm
Operation detail Max. Operation ability(m2/h) 40000
Max. Sucking dimension(mm) 50
Auxiliary engine Model ISUZU Brand
Quantity(No.) 1
Power(kw/HP) 55 /75
Vacuum cleaner Main Vacuum cleaner Quantity(No.) 1
Width(mm) 1800
Side Vacuum cleaner Quantity(No.) 2
Width(mm) 600
Max. Working width(mm) 2400
Sucking Nozzle wheel Quantity(No.) 4
Height Adjustable
Remarks

1. Rear LED pilot lamp

2. Self unloading box body

3. Power system: DC 24V

4. The color will be designed on basis of your requirements.

5. Rear sucking hose as per customer request

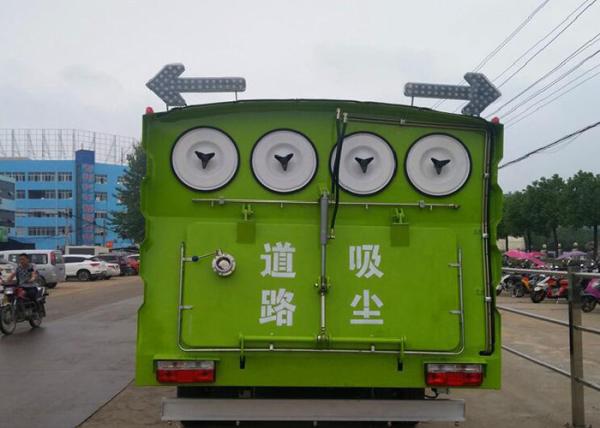

Products Show

Dongfeng 6CBM Road Sweeper Truck Road Cleaning With Customized Color

Dongfeng 6CBM Road Sweeper Truck Road Cleaning With Customized Color

Dongfeng 6CBM Road Sweeper Truck Road Cleaning With Customized Color

Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of Sweeper Truck products I can order from your company?

A: We can supply all kinds of sweeper trucks, Vacuum sweeper truck, High pressure road sweeper truck, Normal road sweeper etc.

Q2: What is your production standard of Sweeper Truck products? Whether your Mobile Advertisement Truck can export to USA, Canada and Europen countries?

A: Our CBU Sweeper Truck is produced as per China GB local standard; We can't export CBU Sweeper Truck to those countries, but we can export super structure to those market, we exported 50 units Sweeper Truck to USA market at the beginning of 2017.

Q3: Have you supplied to Sweeper Truck any renowned companies?

A: Our group company is a regular strategic partner of some big government department and waste treatment company. We have supplied many different type Sweeper Truck for them with different chassis brand.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
