Specifications
Brand Name :
CLW
Model Number :
CLW5080
Certification :
ISO, CCC
Place of Origin :
China
MOQ :
1 UNIT
Price :
negotiable
Payment Terms :
D/A, D/P, Western Union, MoneyGram
Supply Ability :
300 units per month
Delivery Time :
30-35days after received advance payments
Packaging Details :
Naked packing
Tank Material :
Carbon steel, Stainless steel, Aluminium alloy
Sewage Tank Capacity(CBM) :
6CBM 7CBM 8cbm 6000liters 7000liters 8000liters
Max. Loading Weight|(tons) :
6tons,6t,7tons,7t,8t,8tons
Loading medium :
Sewage Fecal Waste water,sewer,sewage
Sewage pump :
China famous brand/Italy brand
Drive model :
4x2 As per sewage tank size
Wheelbase(mm) :
3800mm
Color :
White; Blue; Green; Yellow; Customized
Description

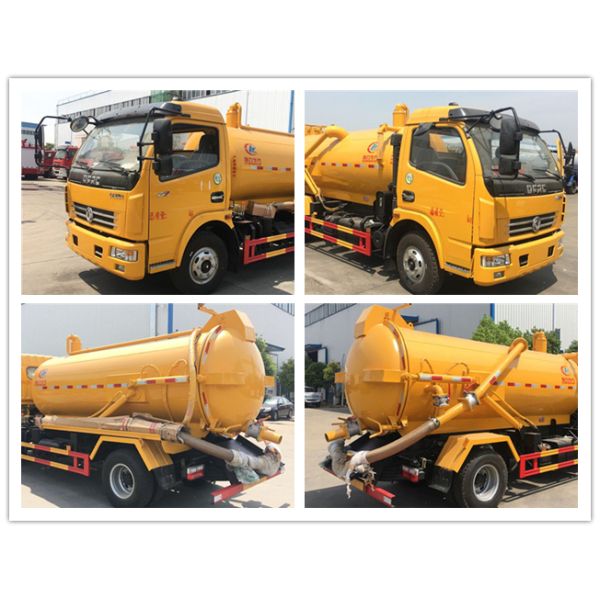

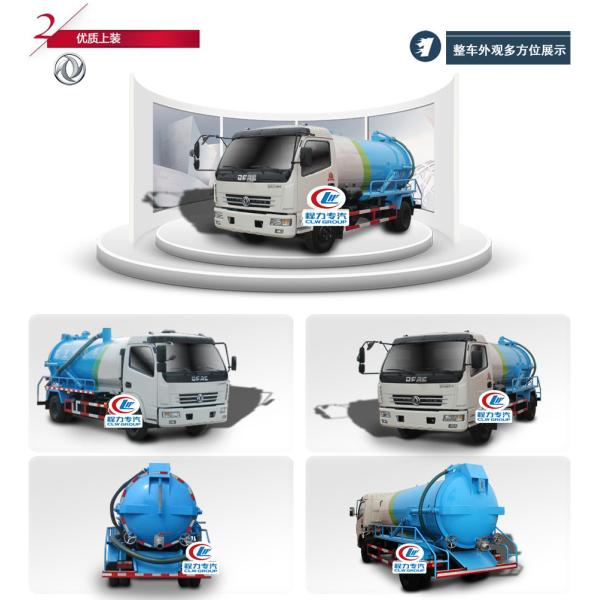

Dongfeng 120hp sewer jetter truck 8ton sewage jet vacuum truck 8cbm

Product Description

1. Purpose of sewer jetter truck :

It used for city and factory sewer cleaning and sewege transportation, it's one of our sanitation truck series. Our mission is assist urban sanitation project and make world cleaning.

2. Main parts of sewer jetter truck:

Water-gas separator, Oil-gas separator, Sewage pump and Four way valve etc.

3. Features of sewer jetter truck:

Easy for operating and controlled by hydraulic system.

Condition New condition/Left hand drive/4x2
Chassis Brand Dongfeng
Curb weight(kg) 8275kg
Wheelbase(mm) 3800 mm
Dimensions(mm) 6500*2150*2700 mm
Front/Rear Axle loading(kg) 3310/4965 kg
Wheel track (front/rear) (mm) 1740/1610 mm
Front/Rear overhang(mm) 1185/1285mm
Approach/Departure angle(°) 21/12
Max. driving speed(km/h) 95 km/h
Clutch Reinforced diaphragm clutch

Brakes

Air brake

Steering Gear Power steering, hydraulic steering with power assistance
Tire Quantity 6 pcs with one spare tire
Specifications 7.50R16
Transmission Manual type, 6 Forwards and 1 reverse
Cab It can accommodate three people. With Air Conditioner

Engine

Brand Chaochai
Fuel type Diesel
Horsepower(HP) 120
Emission standard Euro 3
Sewage Suction & Cleaning System
Sewage tank Capacity(cbm/liters) 8cbm/8000 liters
Tank material Q235 carbon steel
Vacuum pump China famous brand/Italy brand
Inlet and Outlet pipe 6m/7m/9m/15m

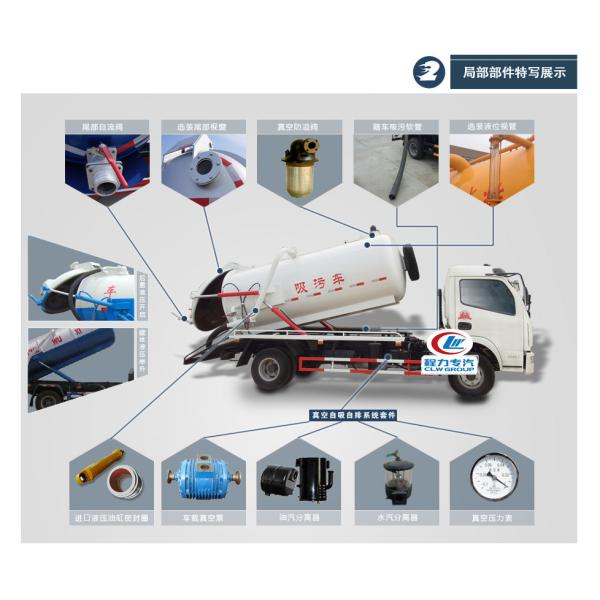

Main parts

1. Water-gas separator

2. Oil-gas separator

3. Four way valve

Remarks

The color is optional

120hp Sewer Jetter Truck , Dongfeng Suction Sewage Truck 8 Ton 8cbm

120hp Sewer Jetter Truck , Dongfeng Suction Sewage Truck 8 Ton 8cbm

120hp Sewer Jetter Truck , Dongfeng Suction Sewage Truck 8 Ton 8cbm

Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of sewer vacuum truck I can order from your company?

A: We can supply normal sewege suction truck and high pressure sewer flushing and sewage suction truck, the difference between those two kinds of sewer cleaning truck are water tank and high pressure water pump. Basically speaking, we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.

Q2: What is your production standard of sewer vacuum truck? Whether your sewer vacuum truck can export to USA, Canada and Europen countries?

A: Our CBU sewer vacuum truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 50 units sewage suction truck's super structure and 20 units sewage suction sewage trailer to Australia market in the past two years.

Q3: Can we adopts International brand sewage pump for sewage suction truck?

A: Sure, we already cooperated with Italy Jourp and a Germany brand.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
