Specifications
Brand Name :
CLW
Model Number :
CLW5110
Certification :
CCC,SGS,BV
Place of Origin :
SUIZHOU,CHINA
MOQ :
1 Unit
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 UNITS/MONTH
Delivery Time :
30 days after receiving deposit
Packaging Details :
naked,waxed,bulk ship,ro-ro
Truck Chassis :
Dongfeng,Howo,ISUZU,Shacman,CAMC,Foton
Capacity :
3t,3ton,3tons
Type :
water tank fire truck,foam,dry powder fire truck,rescue fire truck
Fire Pump :
Chinese brand
Fire monitor range :
≥50M
Flow rate of monitor :
48L/s
Flow rate of pump :
60L/s
Steering :
LHD or RHD
Description

ISUZU 3.5ton 4t water tank fire brigade truck 4000liters water fire fighting truck

Product Description

1. water tank fire brigade truck is composed with truck body and cabin,cabin is two rows,which can allow 6 persons.The front part of truck body is equipment room,middle is water tank and foam tank,rear is pump room.

2) To ensure good performance of fire trucks,water tank fire brigade truck is equipped with middle and low pressure fire pump CB20.10/30.6o with flow rate at 60L/S and Chengdu Wester fire monitor PL48(PM160)or PS60W(SG160).

3) water tank fire brigade truck are widely used in factory,terminal,oil&gas depot to insure emergency fire cases.

Spec. of water tank fire brigade truck

Model Parameters others
Overall Dimension 7542×2200×3000mm
GVW 10000kg
Engine Model 4HK1-TCG40
Engine Power 139kW
Wheelbase 4175mm
Driving Type 4×2
Max.speed 110km/h
Emission Standard 5193ml Euro4
Passengers 3+3
Fire pump rated flow 30L/s@1.0Mpa Vacuum pump
water monitor rated flow 30-50L/s@1.0MPa
Water monitor range Water range≥55m
Passengers 3+3
Approach angle ≥21°
Departure angle ≥13°

Item Parameters Parameters others
1 Water tank capacity water 3000kg Built-in type
2 Fire pump model CB20.10/15.30 Shanghai rongshen
3 Fire pump performance 30L/s@1.0Mpa;15L/S@2.0Mpa Use vacuum pump to priming water
4 the installation site of fire pump rear
5 The quantity of fire pump water outlet 4
6 Pressure gauge 0-2.5 Mpa 2.6 level
7 Vacuum gauge -0.1- -1 MPa 2.6 level

8

Water monitor

(PS30-50D)

 Injection pressure water:≥55m
1.0Mpa
Depression/Elevation angle -30-+70°
Turning angle 360°
9 PTO Model YTQ250 (MOTOR)

The Overall layout

The overall layout

The front and two sides of the middle of the body are storage compartments. It is built-in type

independent water tank in the middle position of the central compartment. The back of the body

is pump compartment.

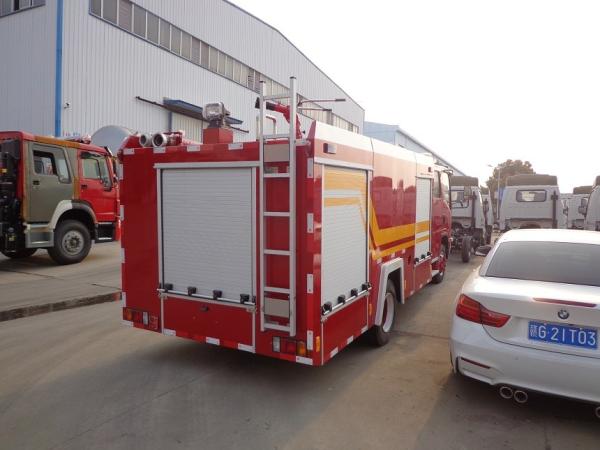

The aluminum alloy shutters are installed at both sides of the body and the back of the pump compartment,

the ladders are installed on the back of the body at the right side.
Technological requirements

All welding panels and skeleton steels are through strict process of anti-rust, anti-corrosion and phosphating

pickling. All the accessories,standard components are processed of galvanization,electroplate,Dacromet

treatments and so on. After completing welding of the tank, the tank will be clear up and removed possible

defects such as empty solder. And then it will be through 24-hour hydrostatic test to assure no leakage.

The frame body

Material

The outer frame of the body are all high quality Q235A, the inner frame use high strength aluminum alloy,

the bottom panel adopt aluminum panels with anodic oxidation treatment.
The doors

The doors are aluminum alloy structure with locks which are good sealing and dustproof.

Water tank

structure Built-in tank, all metal welding structure, the overall corrosion resistance, have shock absorption measures
Material

High quality carbon steel Q235A,3-5mm(bottom thickness 5mm,side thickness 4mm,

top thickness 3mm)
capacity Water 4000KG
Structure 1 DN 470mm inlet hole
1 suction hole at the rear of pump room
1 overflow valve device
1 drain outlet with ball valve
2 DN65 inlets at both sides, structure:ball valve with inside bend upturning pipeline

Fire control system

Consist of fire pump,fire monitor,pipeline system,system operation panel

1,Fire pump

Model No CB20.10/15.30 fire pump

CB20.10/15.30 fire pump
Type Medium/low pressure Centrifugal pump
Rated flow 30L/s@1.0Mpa;15L/S@2.0Mpa
Outlet pressure ≤2.0 MPa
Maximum pumping height 7m
Maximum vaccum ≥85kpa
Priming device Vacuum pump
Priming time ≤35s

2,Fire monitor

Model No PS30-50D fire monitor

PS30-50D fire monitor
Manufacturer Zhangqiu fire equipment co., LTD
Rated flow 30-50L/S adjustable straight stream/spray/mist spray
Angle ≥90°
Range water: ≥50m
Rotation angle ≥360°

3,Pipeline system

Suction piping

1 DN100 suction hole at the rear of the pump room with filter screen and pneumatic

Butterfly valve switch
Injection pipeline 2 DN65 injection holes on both sides, 1 DN65 injection hole inside pump room.
Injecting water to tank injecting water from pump to water tank through 1 Φ65mm injection hole inside pump room
Outlet pipeline Two DN80 normal pressure outlets at the rear
Cooling pipelune Cooling pipeline,control valve to cooling PTO
Heat device To raise temperature in pump room(optional)
Cover All inlet and outlet holes with covers

Electrical equipments

Display and control

Marks on all operation buttons,with pipeline layout and operation/maintenance illustration.

Dashboard lays upper-left in the pump room with RPM/Vacuum/water pressure/liquid level

indicator and lighting/valves control switches
PRM control of pump

1.control in the drive cabin

2.remote manual control in the pump room

Additional electrical Independent circuit
Auxiliary lighting

Headlamps are installed in the pump compartment and storage compartment. operating dashboard

is equipped with lighting switch, indicator light.etc. It is convenient for observation.
Side flashing light A set of red and blue flashing lights are installed on both sides of the vehicle body.
The warning device of the cabin

Long red light 1 piece, which is installed on the top of the cabin;

Electronic alarm 1 piece, which is installed in the cabin;

The control box is installed below in front of the driver
The fire lighting

The fire lighting 1 piece

24V,60W remote omni-directional rotation fire lighting
The main power The vehicle battery is installed battery main switch.

Water Tank Fire Brigade Truck ISUZU 3.5ton 4t 4000 Liters Water Fire Fighting Truck

Water Tank Fire Brigade Truck ISUZU 3.5ton 4t 4000 Liters Water Fire Fighting Truck

Working Scene of water tank fire brigade truck

Water Tank Fire Brigade Truck ISUZU 3.5ton 4t 4000 Liters Water Fire Fighting Truck

Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment

FAQ

Q1: What kinds of water tank fire brigade truck I can order from your company?


A: There are various sizes and types of water tank fire brigade trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied water tank fire brigade truck to any overseas companies?


A: Yes,with need of government project,we offered water tank fire brigade trucks to many Africa and south-east Asian,south-American countries.

Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
