Specifications
Brand Name :
CLW
Model Number :
CLW5250GYQ
Certification :
ASME,CCC,BV,SGS
Place of Origin :
SUIZHOU,CHINA
MOQ :
1 Unit
Price :
negotiable
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 units/month
Delivery Time :
30 days after receiving deposit
Packaging Details :
naked,waxed,bulk ship,ro-ro
material :
Q345R,Q370R,Q420R
standard :
GB150-2011,GB/T19905-2005,ASME VIII Section II
Tank capacity :
10MT,10TON,10t,10tons,12mt,12ton,12tons,12t
Tank size :
20cbm,20000liters,20000litres,20000L
Tire :
10R22.5 tubeless tire or 10.00R20
Thickness :
10mm
Level gauge :
Manual Rotator or rochester floatball
Color :
white,red,customized
Description

Product Description

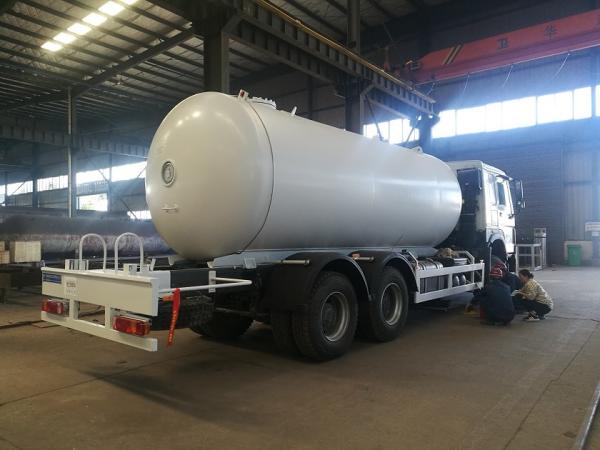

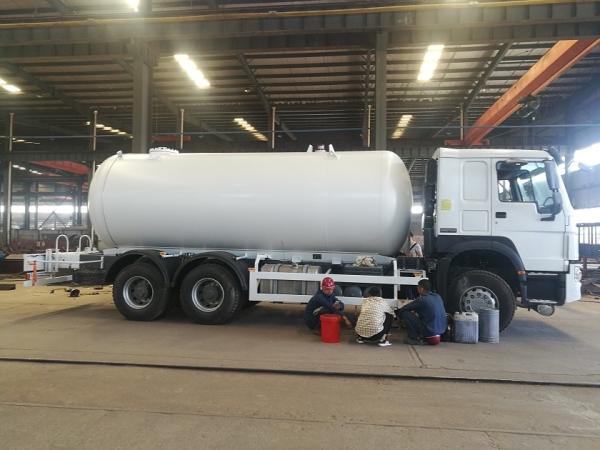

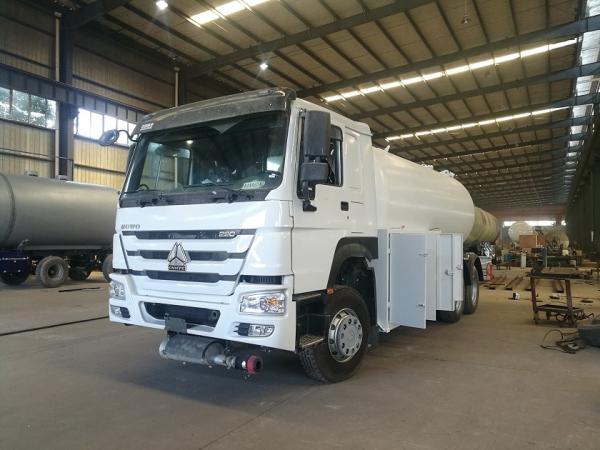

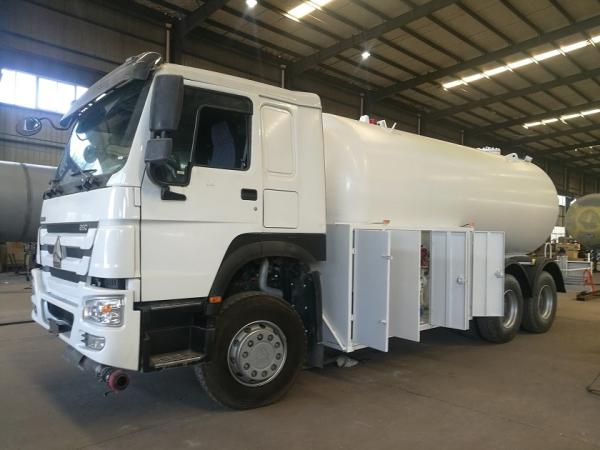

10MT LPG Bobtail Sinotruk Howo 6X4 20cbm 10ton lpg bobtail tanker truck

1) LPG bobtail truck is used to transport or deliver lpg or liquid petroleum gas mobile and supply lpg to lpg stations.We can supply lpg bobtail truck from 2ton to 18ton.

2) Manufacturing standards of lpg bobtail: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008

3) Optional accessories of lpg bobtail:ROCHESTER level gauge,flow meter,sunshelter

4) Standard equipment of lpg bobtail truck:flow meter or computer controled filling machine,chinese lpg pump or corken,blackmer pump.

5)

Specifications of 10MT LPG Bobtail Sinotruk Howo 6X4 20cbm 10ton lpg bobtail tanker truck

Item No. Parameters
Overall Dimension 10590x2495x3350 mm
Driving Model Left hand drive
Gross Vehicle Weight 25000 kg
Curb Weight 14000kg
Payload 10000kg(10Ton)
Wheel Base 4600+1350 mm
Front/rear Tread 2022/1830 mm
Approach/Departure Angle 16/12 degree
Front Axle HF7,7000kg
Rear Axle ST16,16000kgX2
Engine WD615.87,4-stroke direct injection,6-cylinder in-line with water cooling,turbo-charging and inner cooling
Engine horsepower 290HP EUROII
Displacement 9760mL (Diesel)
Max Driving Speed 95 km/h
Gearbox HW19710
Cabin Standard HW76 cabin,2~3 Passenger allowed,with Air Conditioner
Tire 12R22.5 (11 pieces)
LPG tank
Volume: 20cbm
Tank material: Q345R
Tank diameter: 2050mm
Tank thickness: 10mm
End plate 10mm
Tank length: 7644mm
Gas phase DN50
Liquid Phase DN80 according to Niger market
Filling gas Propane(LPG)
Design Pressure: 1.61Mpa

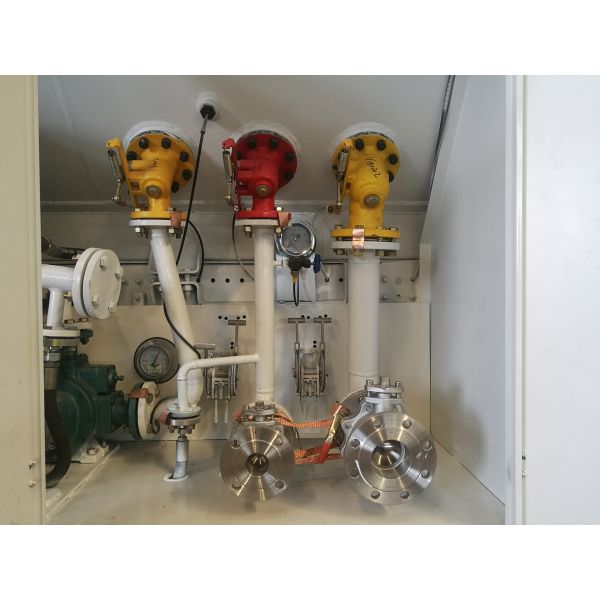

Accessory
LPG Pump 1 pc
Filling hose with filling nozzle 15M
Level Gauge Rochester float-ball level gauge
Safety Valve 1,DN80
Tool and Valve Box 1
Thermometer 1
Pressure Gauge 1
Emergency Valve 1
Fender Steel
Fire Extinguisher 2
Exhaust shaft At the front of truck for safety
Bobtail LPG Gas Tanker Truck Howo 6X4 20cbm 10 Ton For Lpg Transportation

Bobtail LPG Gas Tanker Truck Howo 6X4 20cbm 10 Ton For Lpg Transportation

Bobtail LPG Gas Tanker Truck Howo 6X4 20cbm 10 Ton For Lpg Transportation

Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment

FAQ

Q1: What kinds of LPG products I can order from your company?


A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?


A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?


A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.

Q4: What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
