Foton Frozen Delivery Truck Refrigerated Box Truck 3 Ton 4.1 Meters Customized Color
Foton Frozen Delivery Truck Refrigerated Box Truck 3 Ton 4.1 Meters Customized Color
Foton Frozen Delivery Truck Refrigerated Box Truck 3 Ton 4.1 Meters Customized Color
Foton Frozen Delivery Truck Refrigerated Box Truck 3 Ton 4.1 Meters Customized Color
Foton Frozen Delivery Truck Refrigerated Box Truck 3 Ton 4.1 Meters Customized Color
Foton Frozen Delivery Truck Refrigerated Box Truck 3 Ton 4.1 Meters Customized Color
Foton Frozen Delivery Truck Refrigerated Box Truck 3 Ton 4.1 Meters Customized Color
Foton Frozen Delivery Truck Refrigerated Box Truck 3 Ton 4.1 Meters Customized Color
Foton Frozen Delivery Truck Refrigerated Box Truck 3 Ton 4.1 Meters Customized Color
Foton Frozen Delivery Truck Refrigerated Box Truck 3 Ton 4.1 Meters Customized Color
Specifications
Brand Name :
CLW
Model Number :
CLW5049
Certification :
ISO, CCC,SGS,BV
Place of Origin :
Suizhou,China
MOQ :
1 UNIT
Price :
negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, Western Union, L/C
Supply Ability :
500 units/month
Delivery Time :
30-35 days after received deposit
Packaging Details :
Naked,Waxed,bulk ship,Ro-Ro
Box External thickness(mm) :
1.2mm 1.5mm 1.8mm 2.0mm
Internal thickness(mm) :
1.2mm 1.5mm 1.8mm 2.0mm
Interbed material :
Polyurethane foam
Interbed thickness(mm) :
80mm 100mm 120mm
Interior and external of box :
Fiber glass，color steel
Drive model :
4x2/6x4/8x4; As per super structure size
Wheelbase(mm) :
3300mm 3800mm 4500mm 4700mm 5600mm; 4300+1350mm; 1350mm+4300+1350mm
Color :
White; Blue; Green; Yellow; Customized
Description

Foton frozen delivery truck 3ton 4.1Meters fresh vegetable meat delivery truck

Product Description

1. Purpose of frozen delivery truck : It used for transporting frozen fish, meat, chicken, duck, fresh vegetable and vaccinum etc.

2. Main parts of frozen delivery truck: Refrigerating unit and control system.

3. Features of frozen delivery truck: International chassis brand and International refrigerating unit brand for optional.

Spec of frozen delivery truck

Condition New condition/Left hand drive/4x2

Chassis

 Brand Foton
Curb weight(kg) 2910 kg
Payload(kg) 1500 kg
Wheelbase(mm) 3360 mm
Dimensions(mm) 5995*2200*3000 mm
Front/Rear axle loading(kg) 6000/10000 kg
Front/Rear overhang(mm) 1430/2960 mm
Wheel track (front/rear) (mm) 1880/1800mm
Approach/Departure angle(°) 20/8
Max. driving speed(km/h) 90 km/h
Clutch Reinforced diaphragm clutch
Brakes Hydraulic oil brake
Steering Gear Power steering, hydraulic steering with power assistance
Tire Quantity 6pcs with one spare tire
Specifications 6.50R16
Transmission Manual type, 5 Forwards and 1 reverse
Cab Single row seat, Tiltable. It can accommodate three people. With air conditioner. With Air deflector
Engine Brand Cummins
Model 4J28TC3
Fuel type Diesel
Horsepower(HP) 110 HP
Emission standard Euro 3
Upper

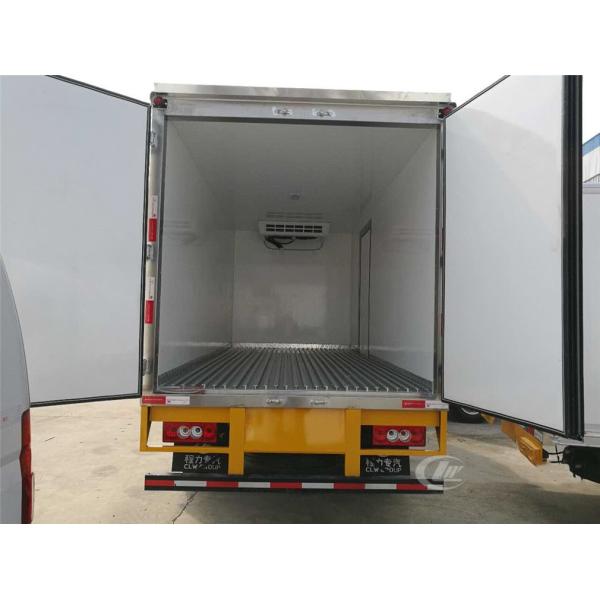

Box

1. Box Size: 4085×1970×1820 mm

2. Box Material, glass epoxy in the surface; Foam in the middle , side ,top ,front ,rear thickness 80mm/100mm; Inside bottom: Aluminum pattern plate
Refrigerating System

1. Working temperature setting range: to -18℃

2. Refrigerating unit brand and model: USA brand Thermo King,CARRIER

Remarks Color is optional

Products Show

Foton Frozen Delivery Truck Refrigerated Box Truck 3 Ton 4.1 Meters Customized Color

Foton Frozen Delivery Truck Refrigerated Box Truck 3 Ton 4.1 Meters Customized Color

Foton Frozen Delivery Truck Refrigerated Box Truck 3 Ton 4.1 Meters Customized Color

Main Structure of frozen delivery truck

1) Van box material:Chinese high quality glass steel,optional for color plate,stainless steel,aluminum alloy steel

2) Refrigerator unit system:Chinese renown brand like HANXUE,HUATAI,US brands such as CARRIER,THMOKING,south korean brand such as DONG IN THERMO CO．,LTD

3) Temperature setting ranges from -5 ℃ to -15 ℃ and available for outer electricity source

4) Stainless steel knock

5) Hooks for hanging meat

6) stainless steel or glass steel bottom plate with ventilating slot

7) Temperature controller in cabin and easy for operation

Foton Frozen Delivery Truck Refrigerated Box Truck 3 Ton 4.1 Meters Customized Color

Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipmen

FAQ

Q1: What loading weight frozen delivery truck I can order from your company?

A: We can supply 990kg-40tons refrigerated truck, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.

Q2: What is your production standard of refrigerator truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?

A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported refrigerated truck super structure and refrigerated semi trailer to Europen countries before.

Q3: Can we adopts International brand refrigerating unit for refrigerated truck and semi trailer?

A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
