Dongfeng Commercial Refrigerated Box Truck 12 Wheel 245hp 20 Ton -18 ℃ Degree
Dongfeng Commercial Refrigerated Box Truck 12 Wheel 245hp 20 Ton -18 ℃ Degree
Dongfeng Commercial Refrigerated Box Truck 12 Wheel 245hp 20 Ton -18 ℃ Degree
Dongfeng Commercial Refrigerated Box Truck 12 Wheel 245hp 20 Ton -18 ℃ Degree
Dongfeng Commercial Refrigerated Box Truck 12 Wheel 245hp 20 Ton -18 ℃ Degree
Dongfeng Commercial Refrigerated Box Truck 12 Wheel 245hp 20 Ton -18 ℃ Degree
Dongfeng Commercial Refrigerated Box Truck 12 Wheel 245hp 20 Ton -18 ℃ Degree
Dongfeng Commercial Refrigerated Box Truck 12 Wheel 245hp 20 Ton -18 ℃ Degree
Specifications
Brand Name :
CLW
Model Number :
CLW5310
Certification :
ISO, CCC,SGS,BV
Place of Origin :
Suizhou,China
MOQ :
1 UNIT
Price :
negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, Western Union, L/C
Supply Ability :
500 units/month
Delivery Time :
30-35 days after received deposit
Packaging Details :
Naked,Waxed,bulk ship,Ro-Ro
Box External thickness(mm) :
1.2mm 1.5mm 1.8mm 2.0mm
Internal thickness(mm) :
1.2mm 1.5mm 1.8mm 2.0mm
Interbed material :
Polyurethane foam
Interbed thickness(mm) :
80mm 100mm 120mm
Interior and external of box :
Fiber glass，color steel
Drive model :
4x2/6x4/8x4; As per super structure size
Wheelbase(mm) :
3300mm 3800mm 4500mm 4700mm 5600mm; 4300+1350mm; 1350mm+4300+1350mm
Color :
White; Blue; Green; Yellow; Customized
Description

Dongfeng 12 wheel 245hp 20ton -18 ℃ degree commercial refrigerated box truck

Product Description

1. Purpose of commercial refrigerated box truck ​ : It used for transporting frozen fish, meat, chicken, duck, fresh vegetable and vaccinum etc.

2. Main parts of commercial refrigerated box truck ​: Refrigerating unit and control system.

3. Features of commercial refrigerated box truck ​: International chassis brand and International refrigerating unit brand for optional.

Spec of commercial refrigerated box truck ​

Condition New condition/Left hand drive/4x2

Chassis

 Brand Dongfeng
Curb weight(kg) 113700 kg
Payload(kg) 19500 kg
Wheelbase(mm) 1850+4350+1350 mm
Dimensions(mm) 11980*2500*3990 mm
Front/Rear axle loading(kg) 6500/6500/18000 kg
Front/Rear overhang(mm) 1460/2970 mm
Wheel track (front/rear) (mm) 1860/1860mm
Approach/Departure angle(°) 28/8
Max. driving speed(km/h) 90 km/h
Clutch Reinforced diaphragm clutch
Brakes Hydraulic oil brake
Steering Gear Power steering, hydraulic steering with power assistance
Tire Quantity 12pcs with one spare tire
Specifications 11.00R20
Transmission Manual type, 5 Forwards and 1 reverse
Cab Single row seat, Tiltable. It can accommodate three people. With air conditioner. With Air deflector
Engine Brand Cummins
Model B245 33
Fuel type Diesel
Horsepower(HP) 245 HP
Emission standard Euro 3
Upper
Box

1. Box Size: 9400×2300×2400 mm

2. Box Material, glass epoxy in the surface; Foam in the middle , side ,top ,front ,rear thickness 80mm/100mm; Inside bottom: Aluminum pattern plate
Refrigerating System

1. Working temperature setting range: to -18℃

2. Refrigerating unit brand and model: USA brand Thermo King,CARRIER

Remarks Color is optional

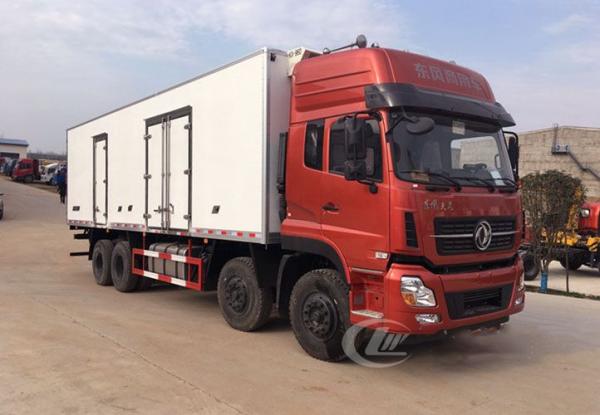

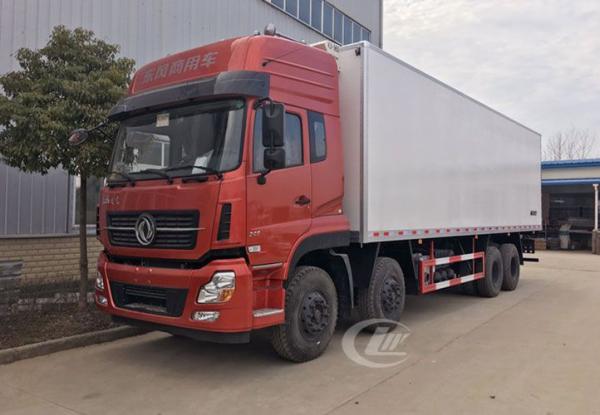

Products Show

Dongfeng Commercial Refrigerated Box Truck 12 Wheel 245hp 20 Ton -18 ℃ Degree

Dongfeng Commercial Refrigerated Box Truck 12 Wheel 245hp 20 Ton -18 ℃ Degree

Dongfeng Commercial Refrigerated Box Truck 12 Wheel 245hp 20 Ton -18 ℃ Degree

Main Structure of commercial refrigerated box truck ​

1) Van box material:Chinese high quality glass steel,optional for color plate,stainless steel,aluminum alloy steel

2) Refrigerator unit system:Chinese renown brand like HANXUE,HUATAI,US brands such as CARRIER,THMOKING,south korean brand such as DONG IN THERMO CO．,LTD

3) Temperature setting ranges from -5 ℃ to -15 ℃ and available for outer electricity source

4) Stainless steel knock

5) Hooks for hanging meat

6) stainless steel or glass steel bottom plate with ventilating slot

7) Temperature controller in cabin and easy for operation

Dongfeng Commercial Refrigerated Box Truck 12 Wheel 245hp 20 Ton -18 ℃ Degree

Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipmen

FAQ

Q1: What loading weight commercial refrigerated box truck ​ I can order from your company?

A: We can supply 990kg-40tons refrigerated truck, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.

Q2: What is your production standard of commercial refrigerated box truck ​? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?

A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported refrigerated truck super structure and refrigerated semi trailer to Europen countries before.

Q3: Can we adopts International brand refrigerating unit for refrigerated truck and semi trailer?

A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
