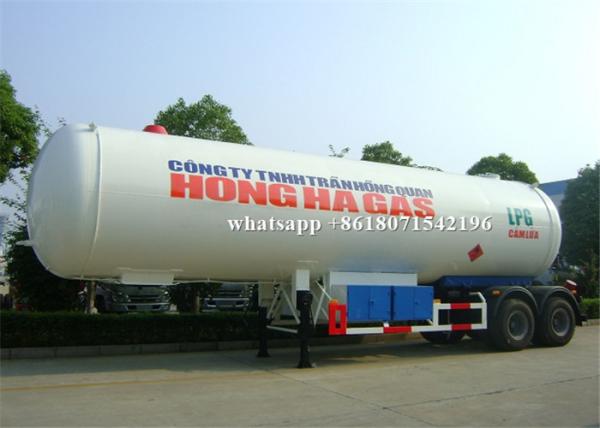

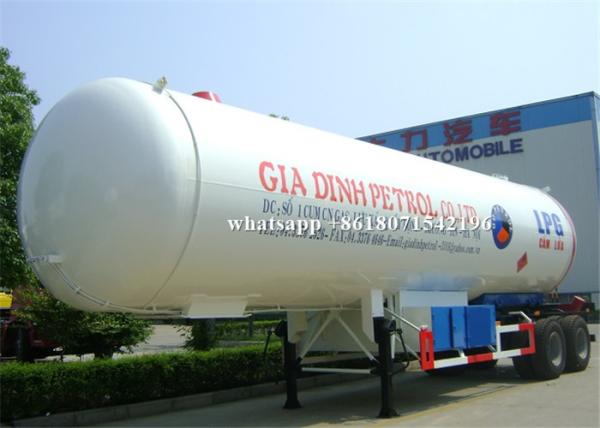

Large Capacity LPG Transport Truck Semi Trailer Propane Bridger Truck
Large Capacity LPG Transport Truck Semi Trailer Propane Bridger Truck
Large Capacity LPG Transport Truck Semi Trailer Propane Bridger Truck
Large Capacity LPG Transport Truck Semi Trailer Propane Bridger Truck
Large Capacity LPG Transport Truck Semi Trailer Propane Bridger Truck
Large Capacity LPG Transport Truck Semi Trailer Propane Bridger Truck
Specifications
Brand Name :
CLW
Model Number :
CLW9390wc
Certification :
ASME,CCC,BV,SGS
Place of Origin :
SUIZHOU,CHINA
MOQ :
1 Unit
Price :
negotiable
Payment Terms :
L/C,, T/T, Western Union, MoneyGram
Supply Ability :
500 units/month
Delivery Time :
30 days after receiving deposit
Packaging Details :
naked,waxed,bulk ship,ro-ro
ank Capacity :
40cbm
Design Pressure :
1.61MPa, 16.1 Bar /Psi
Corrosion Allowance :
1.0mm
Axle brand :
BPW,FUWA,YORK,HJ
LOGO :
as customer's request
Warranty :
1 Year
Description

40cbm LPG Road Tanker Truck 20tons Liquefied Petroleum Gas Tank Semi Trailer Propane Bridger Truck


Specification

Tanker Essential Information
Volume of Tank (cbm) 45
Overall Dimensions(L*W*H)(mm) 12254*2500*3730
Tank Dimensions(Inner Diameter*thickness*Length) 2200*12*12254
Estimated Tare Weight (kg) 14023
Payload(kg) 18480
Total Weight(kg) 32503
Wheelbase(mm) 7170+1320
Shell of Tanker
Products Liquefied Petroleum Gas (propane)
Fluid Property Flammable
Design Temperature(℃) -19℃~50℃
Design Pressure(MPa) 1.61
Corrosion Allowance(mm) 1.00
Weld Joint Factor 1
Major Materials of Bearing Pressure Tanker body:Q345R,12mm,
End plate:Q345R,12mm,double ellipse
Main beam:16Mn
Detection
Heat Treatment Overall treatment in a furnace,600℃ to 640 ℃
Flaw Detection 100% Flaw detection
Hydraulic Test(MPa) 2.21
Manhole (As Customer’s Requirement)
Quantity 1;on top,DN450
Safety Valve(As Customer’s Requirement)
Quantity 2
Location On the top of tanker
Size DN50 or As Customer’s Requirement

Level Gauge

3*13T Fuwa
Type Manuel rotation type
Location At the rear of the end plate
Running System
Axles 2*12T BPW brand
Tire 12R22.5 Tubeless tire ,8 with one spare tire
Landing leg JOST
King Pin #50 or #90
Control System
Emergency Cut-off Valves 2
Ball Valve 2
Liquid Gauge 1
Thermometer 1
Pressure Gauge 1
Accessories
Tool Box 2
Wheel Carrier 1
Fire Extinguisher 2
Fender 6
Paint As Customer’s Requirement

Large Capacity LPG Transport Truck Semi Trailer Propane Bridger Truck


Large Capacity LPG Transport Truck Semi Trailer Propane Bridger Truck

Large Capacity LPG Transport Truck Semi Trailer Propane Bridger Truck

FAQ

Q1: What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q2: Where is your factory? How far from Shanghai to your factory?


A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
