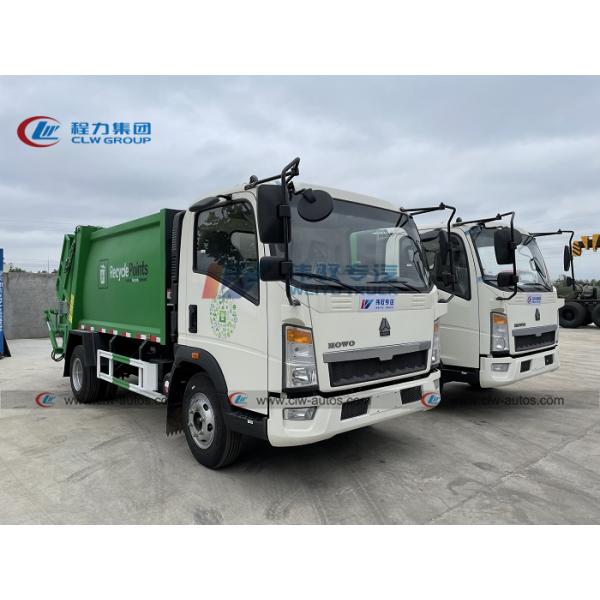

Howo LHD 6m3 Hydraulic Compression Garbage Truck
Howo LHD 6m3 Hydraulic Compression Garbage Truck
Howo LHD 6m3 Hydraulic Compression Garbage Truck
Howo LHD 6m3 Hydraulic Compression Garbage Truck
Howo LHD 6m3 Hydraulic Compression Garbage Truck
Howo LHD 6m3 Hydraulic Compression Garbage Truck
Howo LHD 6m3 Hydraulic Compression Garbage Truck
Howo LHD 6m3 Hydraulic Compression Garbage Truck
Specifications
Brand Name :
CLW
Model Number :
CLW52587xzc
Certification :
CCC,ISO
Place of Origin :
Suizhou, China
MOQ :
1 UNIT
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P, D/A, Western Union,, MoneyGram
Supply Ability :
500Unit Per Month
Delivery Time :
20-30 Days
Packaging Details :
Naked packing,Ro-ro,Bulk Ship
Brand :
KAIMA,DONGFENG, FAW,FOTON, HOWO, JAC, JMC, ISUZU
Drive wheel :
4x2
Garbage container material :
Q345B, high intense carbon steel
Thickness :
4 mm for both side and buttom container
Components :
Loading, Compressing,Discharging
Campacting Ratio :
0.6-0.7 Ton/Cbm
Operating System :
One in The Cabin, One on The Back of The Truck
Usage :
Domestic garbage transport
Warranty :
one year for major parts
Operation video :
Yes, with Multi-language for choice
Technical support :
20 years experienced engineer will help you whenever need
LOGO :
as Per Customer's Request
Description

Howo LHD 6m3 Hydraulic Compression Garbage Truck

  • Widely used; support customized

  • Heavy load; simple operation

  • Plate thickening; fully function

Specifications of 6m3 Compression Garbage Truck

Dongfeng 6CBM Compressed Garbage Truck
Overall Dimension 5865 ×2180×2400 mm Gross Vehicle Weight

7360 kg
Curb Weight 2400 kg Loading Weight 4960 kg
Wheel Base 3360 mm Front / Rear Axle 2640kg / 4720kg
Cabin Left Hand Driving, 2/3 Passengers Allowed, with Air Conditioner, Radio
Engine Chaochai
Engine horsepower 114HP, EURO 4
Max Driving Speed 90 km/h
Gear Box 5 Forward Gear, 1 Reverse Gear,
Tire 7.00R16LT (6 pieces with one spare)
Garbage Bin Capacity 5CBM
Material Q345B, 4mm Carbon Steel for Garbage Bin Body
Design Whole unit with Leakage Proof Design
Ways of Loading Rear Loading with optional Bucket Lifting System
Garbage Compact Ratio 0.6 - 0.7
Control System One control Panel on the back, One Control system in back of Cabin
Working System 1. Equipped with air-tight dustbin, hydraulic system and operating system.
2. Automatic loading, compressing and discharging, all handled by 1 person
3. Sewage water collection tank to avoid any pollution during handling.
4. Large Pressure, Good Leakage Proof, Convenient Operation
Dependable Security
5. Electrical Control Panel for compacting system.
6. Cycling time＜14~18s
Remarks 1. Color is optional
2. Customized LOGO painting as per customer request

Howo LHD 6m3 Hydraulic Compression Garbage Truck

Howo LHD 6m3 Hydraulic Compression Garbage Truck

Howo LHD 6m3 Hydraulic Compression Garbage Truck

Diagram

Howo LHD 6m3 Hydraulic Compression Garbage Truck

Working Show

Howo LHD 6m3 Hydraulic Compression Garbage Truck

Our Service

  • Quick feedback to solve your questions

  • Reasonable price and good quality

  • Quick delivery and shipment


FAQ

Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
