FAW 6x4 Type Water Sprinkler Truck Watering Cart 20000liters 20tons
FAW 6x4 Type Water Sprinkler Truck Watering Cart 20000liters 20tons
FAW 6x4 Type Water Sprinkler Truck Watering Cart 20000liters 20tons
FAW 6x4 Type Water Sprinkler Truck Watering Cart 20000liters 20tons
FAW 6x4 Type Water Sprinkler Truck Watering Cart 20000liters 20tons
FAW 6x4 Type Water Sprinkler Truck Watering Cart 20000liters 20tons
FAW 6x4 Type Water Sprinkler Truck Watering Cart 20000liters 20tons
FAW 6x4 Type Water Sprinkler Truck Watering Cart 20000liters 20tons
FAW 6x4 Type Water Sprinkler Truck Watering Cart 20000liters 20tons
FAW 6x4 Type Water Sprinkler Truck Watering Cart 20000liters 20tons
Specifications
Brand Name :
CLW
Model Number :
CLW5941
Certification :
CCC,ISO
Place of Origin :
Suizhou, China
MOQ :
1 UNIT
Price :
USD24925-31852
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
500Unit Per Month
Delivery Time :
20-30 Days
Packaging Details :
Naked packing,Ro-ro,Bulk Ship
Material :
Q235 carbon steel
Thickness :
5 mm
Fuel :
Diesel
Driving Type :
6x4, left/right hand driving
Pump :
China Famous Brand/International brand
Suction Height :
7 meters
Water Canon Range :
30 meters
Sprinkling Width :
14 meters
Operating video :
yes
Use Manual :
yes
Front spray and rear spray :
yes
Warranty :
One year
LOGO :
As per customer's request
Description

FAW 6x4 type 20000liters 20cbm 20tons Water sprinkler Truck water spraying truck watering cart for city cleaning

Description:
water tank truck, which is also called watering truck, water tanker truck, water spraying truck,
water truck, water sprinkler truck, etc.
The water tanker truck is mainly used for water transportation, road sprinkling, plant watering, etc. The water tank truck is consisted of chassis, Q235 water tank, front, side and rear sprinkler nozzle. Also , the rear of the water truck is equipped antiskid platform with water cannon. The water cannon can rotate 360 degree and the water flow can be adjusted to mist, light rain, moderate rain, heavy rain, etc. The spraying width of chengli water tank truck is more than 15m and the cannon range is more than 25m.

1. Optional chassis brand of portable water truck: Dongfeng, Isuzu, Sinotruk, FOTON/Forland, Faw, Shacaman, etc.
2. Material of portable water truck :High Tension Steel Q235/Q345,stainless steel 304 for option.
3. Sprinking Width of portable water truck: ≥14M
4. Rear working platform with water cannon range of portable water truck: ≥28M
5. Reliable and high quality water pump

Product specifications

Items Descriptions Specifications and Types
General Truck Name 20000L FAW Water Bowser Truck
Drive Type 6*4
Gross Weight(kg) 25000
Curb Weight (kg) 10805
Approx.Overall Dimensions (mm) 9980×2500×3350
Engine Engine Model ISDe245 40
Engine Brand Cummins
Fuel Type Diesel
Power 180kw/245HP
Emission Standard Euro V
Displacement(ml) 6700
Engine Type 6 cylinders in line, inter cooler, supercharged diesel engine
Chassis Chassis Brand FAW
Chassis Model JK6
Cabin One row with single sleeper, titled, flat roof, with A/C
Tire No. 10+1
Tire Specification 11.00R20 All Steel tire
Axle No. 3
Steering Wheel Left hand drive with power-assisted
Gear Box FAST 8 speed forward with 1 reverse, manual
Brake Air brake
Tank Tank Volume(L) 20,000
Tank Shape Rectangular
Tank Material Carbon Steel, 5mm thick
Performance Spraying Width(m) 14
Canon Range(m) 28
Equipment

1.Front flushing , side spraying, rear sprinkling nozzle and platform with water cannon and water gun.

2.The water cannon can be rotated 360 degree. The water flow can be adjusted to heavy, medium, light rain, drizzle and mist.

3.Water suction depth is about 7m.

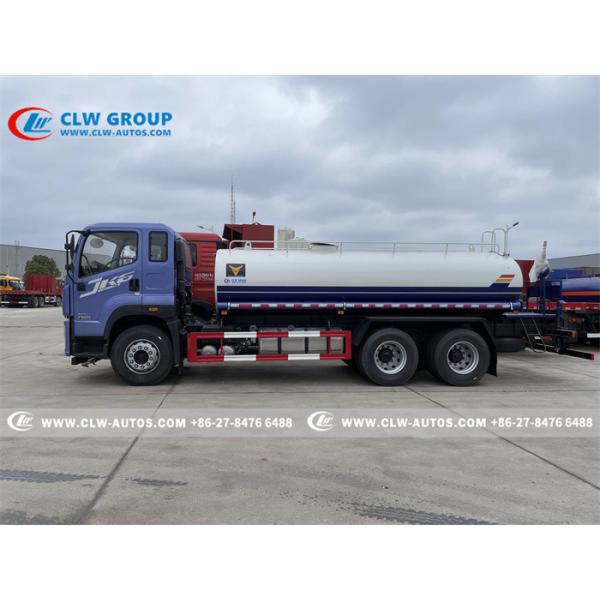

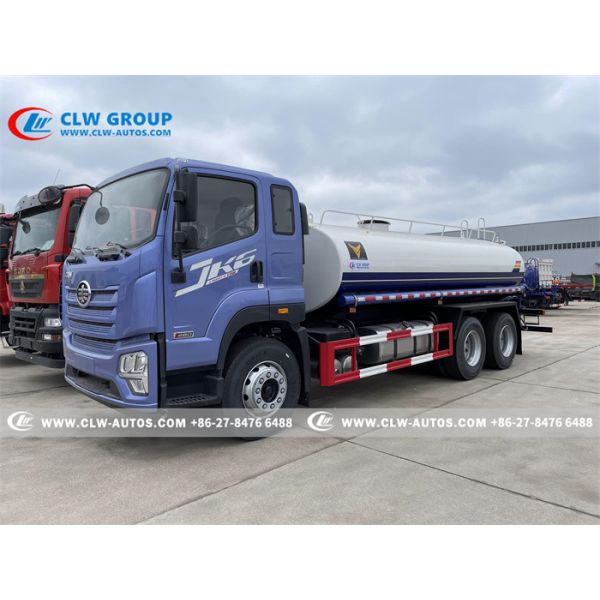

Reference photos for FAW JK6 water bowser truck

FAW 6x4 Type Water Sprinkler Truck Watering Cart 20000liters 20tonsFAW 6x4 Type Water Sprinkler Truck Watering Cart 20000liters 20tonsFAW 6x4 Type Water Sprinkler Truck Watering Cart 20000liters 20tonsFAW 6x4 Type Water Sprinkler Truck Watering Cart 20000liters 20tons

Water Truck Diagram

FAW 6x4 Type Water Sprinkler Truck Watering Cart 20000liters 20tons
Working Show
FAW 6x4 Type Water Sprinkler Truck Watering Cart 20000liters 20tons

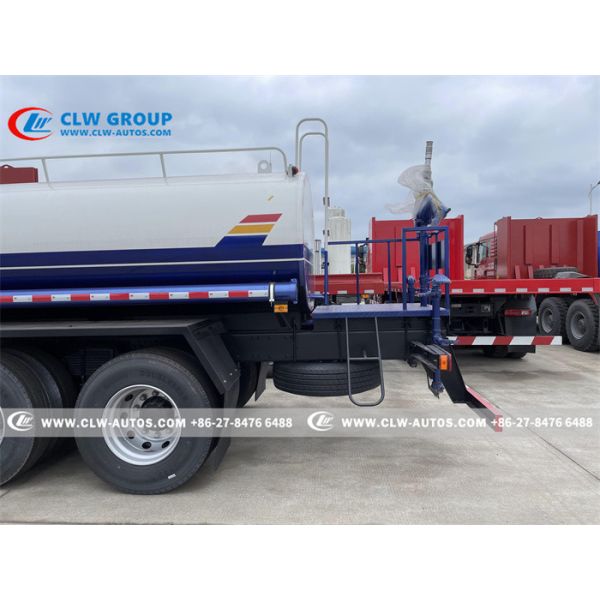

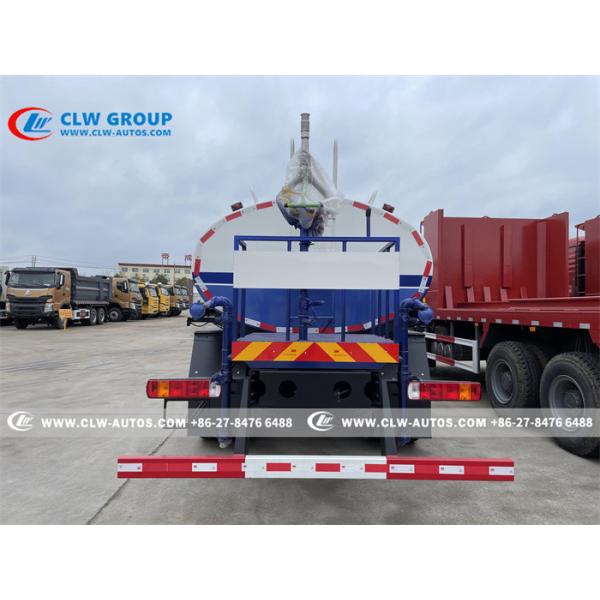

Truck Details
FAW 6x4 Type Water Sprinkler Truck Watering Cart 20000liters 20tons
FAW 6x4 Type Water Sprinkler Truck Watering Cart 20000liters 20tons

Water bowser truck production line

FAW 6x4 Type Water Sprinkler Truck Watering Cart 20000liters 20tons

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

After Sales Service

Email & Phone call tracking for each truck on timely manners.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
