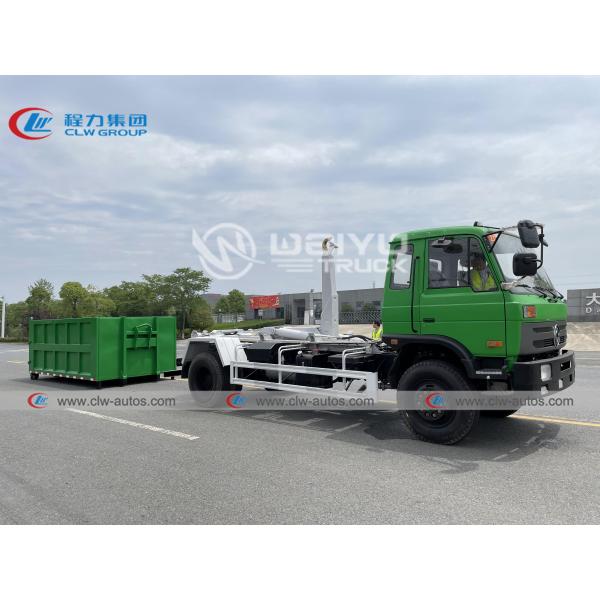

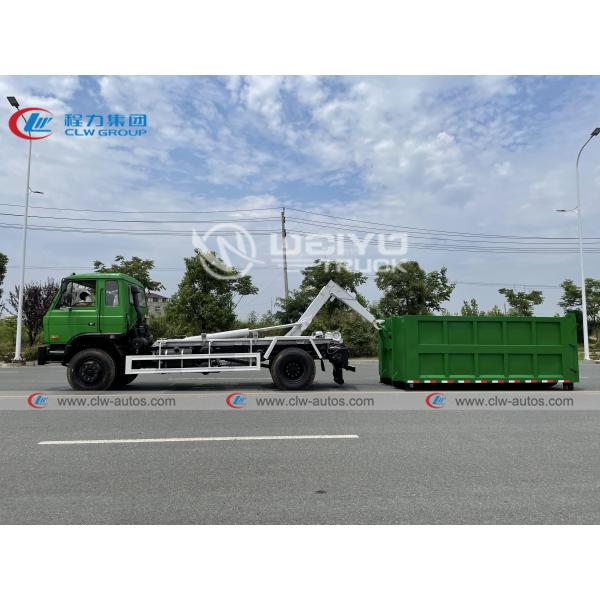

Donfeng 12cbm 12m3 Domestic Construction Garbage Transfer Truck Waste Hydraulic Hooklift Equipment Machine

Chassis onfiguration:
1. It adopts Dongfeng series light truck chassis, with one and half row cabin.
2. Steering assist, clutch assist with rich configuration and strong practicability.
3. Cummins 190hp diesel engine with stable quality and economical fuel consumption.
4. The gearbox adopts 8-speed manual gearbox, with clutch assist, shifting is easy and power output is smooth.
5. Front axle loading 5t,rear axle loading 10t
6. Dongfeng 12m3 hook lift garbage truck is also equipped with rare air brake at the same level, and the braking effection is much better.

Upper body onfiguration:
1. 12 cubic meters garbage box volume .
2. Sub-frame is made of No. 16 low-alloy channel steel, No. 20 square tube and 8mm, 5mm, 4mm, and 16Mn steel plates welded.
3. The operation of pulling the box, locking, putting the box and self-unloading is simple and convenient.
4. Intelligent control of the cabin. It can also be controlled by the traditional operating lever outside the cabin according to the user's needs.
5. The multi-way valve adopts domestic well-known brand , the valve body has stable performance and low failure rate.

Product paremeters:​

​

​

​1. The hook-lift garbage truck adopts full hydraulic control system
2. Garbage box and the chassis can be completely separated. It has the advantages of reasonable structure, easy operation, stability, high using efficiency, good sealing performance, and convenient dumping.
3. It can realize one truck with multiple garbage bins. Combined operation of compartments, circular transportation, and fully improve the transportation capacity of truck. It can carry multiple boxes in one truck, which is efficient, energy-saving and cost-saving.
