HW70 PTO Rear Loader Howo Garbage Compactor Truck Right Hand Driving 12m3 12cbm
HW70 PTO Rear Loader Howo Garbage Compactor Truck Right Hand Driving 12m3 12cbm
HW70 PTO Rear Loader Howo Garbage Compactor Truck Right Hand Driving 12m3 12cbm
HW70 PTO Rear Loader Howo Garbage Compactor Truck Right Hand Driving 12m3 12cbm
HW70 PTO Rear Loader Howo Garbage Compactor Truck Right Hand Driving 12m3 12cbm
HW70 PTO Rear Loader Howo Garbage Compactor Truck Right Hand Driving 12m3 12cbm
Specifications
Brand Name :
CLW
Model Number :
CLW590ERI
Certification :
CCC,ISO,BV,SGS
Place of Origin :
Suizhou, China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Unit/Month
Delivery Time :
45 Working Days
Packaging Details :
Naked packing,Ro-ro,Bulk Ship
garbage compactor truck :
12cbm
Power :
266hp
Generator Set Dimension :
8,980×2,550×3,350 (mm)
Warranty :
1 Year
GVW :
18,000KG
Compression ratio :
0.75-0.8tonnes/cbm
Hydraulic pressure :
18MPa
Fuel tank :
400 liters
Tire specification :
295/80R22.5 tubeless tires
Emission standard :
EURO2
Loading cycle time :
Not more than 25 s
Description

Howo 12m3 12cbm Right Hand Driving HW70 PTO Rear Loader Garbage Compactor Truck For Sale

Product descriptions:

1. HW76 one and half row cabin

2. High quality Q345 managnese steel

3. The truck's tail is equipped with flip feeding mechanism and has 3cbm thick rubber sealing strip

5. Garbage box can be sprayed with patterns and words as required.

6. Double sewage collection tank

7. Manual and electronical dual controllers

8. Effective compression volume is up to 12cbm

Exporting countries:

1. Asia: Nepal, Pakistan, India, Indonesia etc.

2. South America: Anguilla, Bahamas, Grenada, Guyana, Jamaica,Tobago etc.

3. Africa: Kenya, Lesotho, Botswana, Seychelles, Mozambique, Namibia etc.

4. South Africa: Uganda, Zambia, Tanzania, Zimbabwe etc.

Product parameters:

Wheel Base 4600 mm
Front Axle 7000kg
Rear Axle 16000kg
Engine WEICHAI Diesel engine WD615.62
Engine horsepower 266HP EURO2
Displacement 9726 mL (Diesel)
Rated Rotation Speed 2200 rpm
Engine type

· Six cylinder in-line vertical,

· super charge inner cooling,

· Four-stroke,

· water-cooled,

· direct injection,
Gearbox

· Manuel type

· HW19710,

· 10-speed forward and 2 reverse
Cabin

· Howo spacious cabin,

· Right hand drive;

· One row and a half,

· 2 Passenger allowed,

· with A/C
Tire 295/80R22.5 (6 pcs with one spare)
Exhaust Pipe At front of Cabin for safety
Fuel box Aluminum alloy,400L
Garbage Truck Body
Tanker body material Quality high tensile Q345 carbon steel
Shape rectangular box, arc-shaped rear
Thickness Side 4mm, Bottom 5mm
Garbage Container Size 12CBM
Filling hopper volume 0.73 CBM
sewage box volume O.6cbm
Working rotation speed 1400 r/min
Compaction ratio 0.75-0.8T/m³
Compacting cycle time 24~28 s
Tailgate lifting time 10~15 s
Tailgate lifting Angle 85~88 °
Unloading cycle time 60~75 s
Oil pump displacement 63 ml/r
Hydraulic oil box size 125 L
System pressure Max. 240 bar and working pressure 180~200 bar
PTO operation method Pneumatic
Operation and Control Both Automatic(Electrical) and Manual (hydraulic)

why do you choose us for garbage truck?

  • Certificate: ASME, ISO, BV, SGS, CCC etc.
  • More than 30 independents workshops for different types of trucks
  • 1000 sets of equipment, 25 assemble lines.
  • 300 senior engineers and technicians and about 8000 staffs
  • 800kinds of trucks and semi-trailers with various functions
  • 20 years wholesale experience
  • Turnover 250 million and Export 20million annually
  • More than 100,000 trucks and semi-trailers annually.
  • Truck Sold to 90 countries
  • Long term cooperation with China leading chassis supplier DONGFENG,SINOTRUCK,FOTON,FAW,ISUZU,ETC
  • We can handle production of bulk order water trucks of tender and government purchase in required time

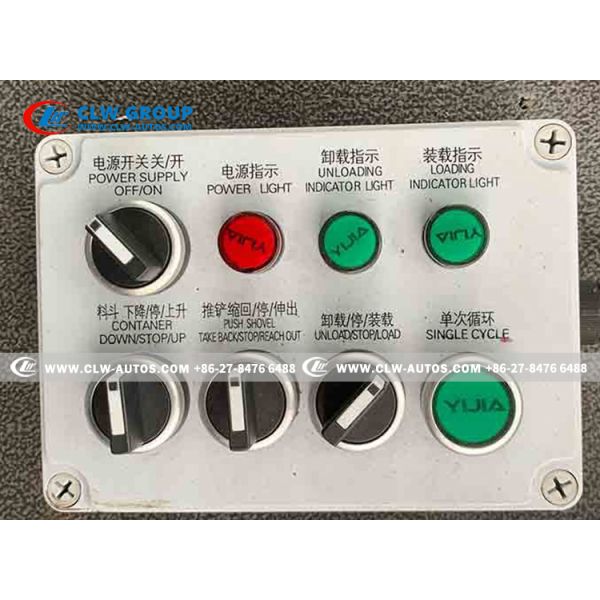

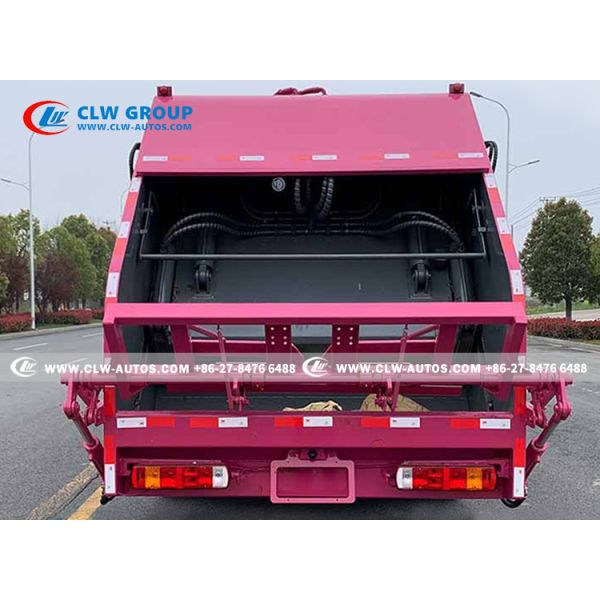

Detailed photos:

HW70 PTO Rear Loader Howo Garbage Compactor Truck Right Hand Driving 12m3 12cbm

HW70 PTO Rear Loader Howo Garbage Compactor Truck Right Hand Driving 12m3 12cbm
