Telescopic Aerial Platform Truck 16 Meter ISUZU Brand Boom Lift Cherry Picker Truck
Telescopic Aerial Platform Truck 16 Meter ISUZU Brand Boom Lift Cherry Picker Truck
Telescopic Aerial Platform Truck 16 Meter ISUZU Brand Boom Lift Cherry Picker Truck
Telescopic Aerial Platform Truck 16 Meter ISUZU Brand Boom Lift Cherry Picker Truck
Telescopic Aerial Platform Truck 16 Meter ISUZU Brand Boom Lift Cherry Picker Truck
Telescopic Aerial Platform Truck 16 Meter ISUZU Brand Boom Lift Cherry Picker Truck
Telescopic Aerial Platform Truck 16 Meter ISUZU Brand Boom Lift Cherry Picker Truck
Telescopic Aerial Platform Truck 16 Meter ISUZU Brand Boom Lift Cherry Picker Truck
Telescopic Aerial Platform Truck 16 Meter ISUZU Brand Boom Lift Cherry Picker Truck
Telescopic Aerial Platform Truck 16 Meter ISUZU Brand Boom Lift Cherry Picker Truck
Specifications
Brand Name :
CLW
Model Number :
CLW94520ov
Certification :
CCC,ISO,SGS,BV
Place of Origin :
Suizhou,China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
600Unit Per Month
Delivery Time :
30 days
Packaging Details :
Naked Pack with Wax
Brand :
ISUZU,FOTON,JMC,HOWO,Dongfeng,JAC,SHACMAN,CAMC
Passenger :
2~3 Person
Engine :
ISUZU brand
front leg :
H shape
Rear leg :
H type
Height :
16M, 16 meters
Bucket Capacity :
200kg
Boom Type :
five section telescopic arm
Warranty :
1 year
Logo :
as per customer's request
User manual :
yes
Operation video :
yes
Truck purpose :
Street Light repair,cherry picker
Description

Telescopic Aerial Platform Truck 16 meter ISUZU Brand Boom Lift Cherry Picker Truck

Product Description

1. Electronical controlled Lifting Arm with Doulbe Side Balance Vavle.
2. Four Hydraulic Cylinders Control Leg to ensure the Truck Balance.
3. 360 degree Rotation Arms.
4. Arm and H leg Automatic Locking System to secure safety handling.

Parameter Overall dimension (Length*width*high) (mm) 5998×2050×2850
Total Mass (kg) 4495
Kerb Mass (kg) 4295
Wheel base (mm) 3360
Front/rear tract base (mm) 1385/1425
Approach/rear angle 27/11
Max speed (km/h) 90
Fuel type diesel
Engine Engine type ISUZU
Displacement standard EURO 5
Chassis Chassis type ISUZU
Drive system 4x2
Tire type 7.00R16
Number of tire 6
Front/rear axle loading(kg) 1015/2025
passengers 3
Cabin Single, with 2 passengers allowed, with Air conditioner
Special parameter Working platform rating loading (kg) 200
Max. Working Height (m) 16
Platform height (m) 14.3
Boom type Five section telescopic type
Loading of hook (kg) 800-1000
Bucket rotation angle (°) 360

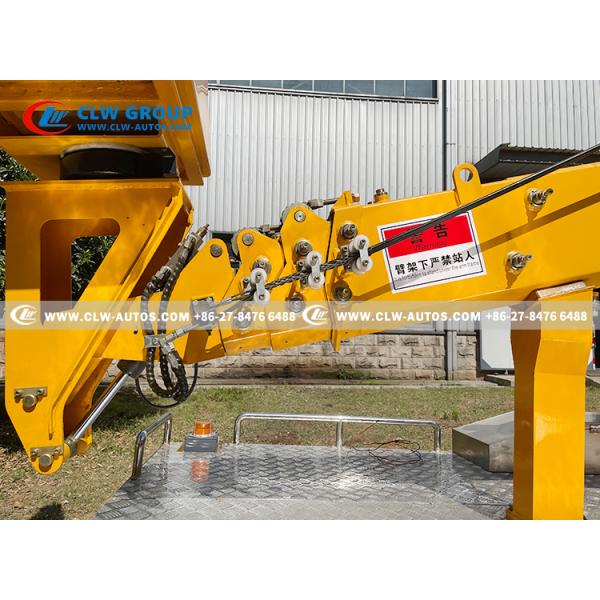

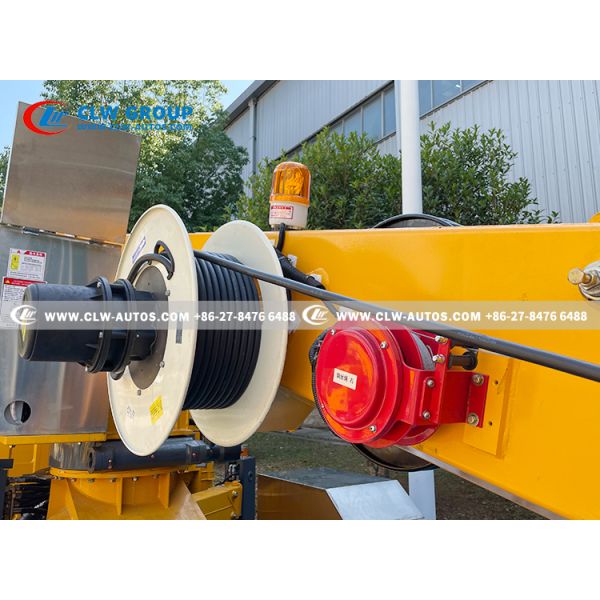

Reference photos

Telescopic Aerial Platform Truck 16 Meter ISUZU Brand Boom Lift Cherry Picker Truck

Telescopic Aerial Platform Truck 16 Meter ISUZU Brand Boom Lift Cherry Picker Truck

Aerial working platform Truck ​Working Show

Telescopic Aerial Platform Truck 16 Meter ISUZU Brand Boom Lift Cherry Picker Truck

Telescopic Aerial Platform Truck 16 Meter ISUZU Brand Boom Lift Cherry Picker Truck

For more details contact alice +86 180 7154 2196
