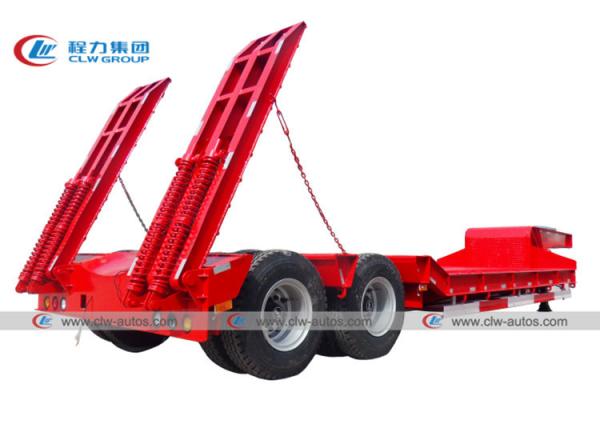

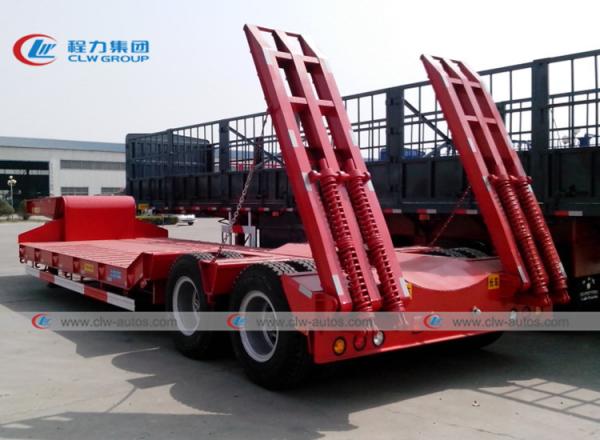

2 Axle Lowbed Lowboy Semi Trailer 40 Tons 45 Tons For Construction Machine
2 Axle Lowbed Lowboy Semi Trailer 40 Tons 45 Tons For Construction Machine
2 Axle Lowbed Lowboy Semi Trailer 40 Tons 45 Tons For Construction Machine
2 Axle Lowbed Lowboy Semi Trailer 40 Tons 45 Tons For Construction Machine
2 Axle Lowbed Lowboy Semi Trailer 40 Tons 45 Tons For Construction Machine
2 Axle Lowbed Lowboy Semi Trailer 40 Tons 45 Tons For Construction Machine
2 Axle Lowbed Lowboy Semi Trailer 40 Tons 45 Tons For Construction Machine
2 Axle Lowbed Lowboy Semi Trailer 40 Tons 45 Tons For Construction Machine
2 Axle Lowbed Lowboy Semi Trailer 40 Tons 45 Tons For Construction Machine
2 Axle Lowbed Lowboy Semi Trailer 40 Tons 45 Tons For Construction Machine
Specifications
Brand Name :
CLW
Model Number :
CLW20220509
Certification :
ISO9001, CCC, BV, SGS
Place of Origin :
SUIZHOU, HUBEI, CHINA
MOQ :
1 unit
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 units per month
Delivery Time :
30-35 days after receiving the deposit
Packaging Details :
Naked or waxed before shipment
Axle :
FUWA, BPW, L1, Zhengyang brand
Axle loading :
13tons, or 16tons. 20Tons
Nos. of alxe :
2 Axle, 3 axle, 4 axle, 5 axle, 6 Axle
Suspension :
Front: air bag, Rear: mechenical suspension.
Length :
13 meters, extendable to 16 meters
Landing Gear :
JOST Brand, Or Fuwa Brand
Capacity :
40tons, 50tons, 60 tons, 80 tons.
Function :
construction machinery, timber log transport
Product name :
Lowbed, low bed , low loader, lowboy trailer
Load :
50 60 80 100 Tons
Leaf Spring :
10 pieces, 12 pieces, 13 pieces
Other equipment :
Hydraulic/Mechanical Rear ladder
Description

2 Axle 40 Tons 45 Tons Low Loader Lowbed Lowboy Semi Trailer For Construction Machinery Transport

Goods Description:

Lowbed semi trailer is designed for stevedoring and transporting for Excavator , wheel loader or Other Heavy Duty Equipment.


CLW Group with many years' international business experience . We visit overseas customers many times per year . our lowbed semi trailer is designed according to the real market survy . The main points of the lowbed semi trailer ( like gooseneck , suspention , side beam ) with reinforced process . So that , the lowbed trailer could run well for the final user.

Features:

1. Different length available.

2. Gooseneck type: hydraulic gooseneck, detatchable gooseneck, radial gooseneck etc.

3. Axles can be 2,3 or 4 etc. Steering axle & hydraulic axle available.

3. Line lowbed available.

4. Platform extendable, super low platform availale.

5. Twist lock available.

6. Fence available.

Parameters:

Dimension and Weight
Overall Dimension(mm) 13000x3000x1650mm
Working Deck Dimension(mm) 9000x3000x1350mm
Platform thickness(mm) 4mm
Main Beam

"H"main beam design,Q345B carbon steel,

the height of the beam is 500 mm,

upper plate is 16mm,down plate is 18mm, middle plate is 10 mm.
Wheelbase 7,650mm+1,310mm+1,310mm
Payload 60,000kg
Tare weight 9,000kg
G.V.W.R. 69,000kg
Function To transport bulk goods or heavy equipment like loader or excavator
Running System
Axle

13Ton, ZY brand optional FUWA brand,

one hundred fifty thousand Kilometers no need maintenance
Axle Number Three
Tire 1100R20, 12 pcs Taitong brand
Rim 8.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs
Suspension system Common Mechanical Suspension
Steel Spring 10/10/10 leaf spring with 90mm(W) *13mm(thickness)
Electrical System Chinese standard 24V lighting system
Brake system: Dual line pneumatic brake, SAE hose and connector,optional ABS
Brake air chamber 6 units T30/30 spring brake chambers
Emergency relay valve Wabco relay valve
Traction/King Pin 2" and 3.5" removable Kingpin, bolted in type 500mm from the front face of the front bolster
Landing Gear Zhenhua brand 28ton
Accessories:
Tool box 1pcs, One crank and one shaft head wrench
Ramp Heavy duty trailer ramp
Spare wheel carriers 2 pcs
bumper Rear bumper
Electrical system 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
Tail lamp with turn signal, brake light & reflector, side lamp etc.
One set 6-core electric cable protected by PVC conduit on main frame
Paint Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish.Waxed

More pictures:

2 Axle Lowbed Lowboy Semi Trailer 40 Tons 45 Tons For Construction Machine

2 Axle Lowbed Lowboy Semi Trailer 40 Tons 45 Tons For Construction Machine

2 Axle Lowbed Lowboy Semi Trailer 40 Tons 45 Tons For Construction Machine

Packed for delivery:

2 Axle Lowbed Lowboy Semi Trailer 40 Tons 45 Tons For Construction Machine

2 Axle Lowbed Lowboy Semi Trailer 40 Tons 45 Tons For Construction Machine

2 Axle Lowbed Lowboy Semi Trailer 40 Tons 45 Tons For Construction Machine

2 Axle Lowbed Lowboy Semi Trailer 40 Tons 45 Tons For Construction Machine
