Specifications
Brand Name :
CLW
Model Number :
CLW20220801DEJ
Certification :
CCC,ISO,BV,SGS
Place of Origin :
Suizhou, China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Unit/Month
Delivery Time :
35 Days
Packaging Details :
Naked packing,Ro-ro,Bulk Ship
Chassis Brand :
FAW
Wheel base :
4350+1350mm
Gearbox :
9 Forward & 1 Reverse Gear
Tank Material :
Carbon Steel, Stainless Steel or Aluminum Alloy
Tank volume :
18M3, 18CBM, 18000L, 18000liter
Tank Shape :
Square Round, Round
Transport Oil Type :
Diesel, Petrol, Gasoline, Oil, etc.
Oil Pump :
Chinese Famous Brand
Oil Dispenser :
Chinese Famous Brand
Hose Reel with Filling Gun :
15 Meter (Length Can Be Longer as Per Request)
Oil Vapor Recovery System :
Optional
Color :
Customized
Warranty :
1 Year
Description

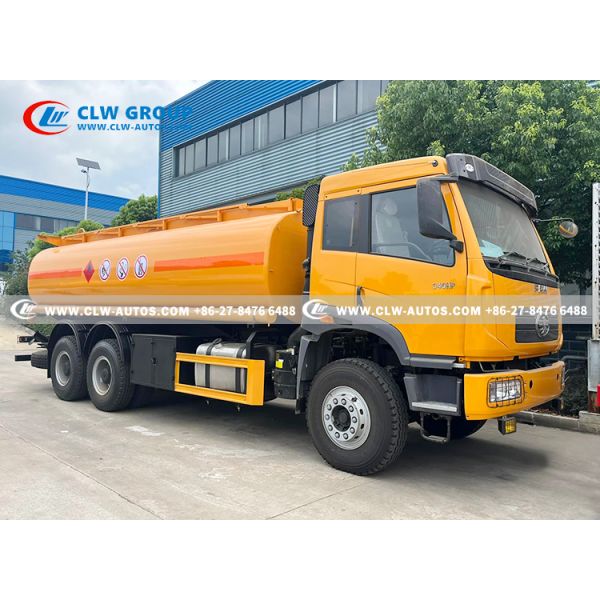

340HP Diesel Engine Crude Oil Fuel Tanker Truck Export To Africa Market

CLW GROUP 's full-canopy tank design helps to keep your delivery drivers out of the weather and elements during delivery. Equipment area provides easy access from both sides of the truck.

1. Standard tank capacities from 2,400 - 5,500 gallons; custom sizes available starting at 1300 gallons up to 7,500 gallons
2. Top loading or bottom loading (optional)
3. Single or dual delivery systems
4. Common applications: heating oil, commercial and agricultural deliveries, fleet fueling, oil field deliveries and lubricants


Features:
Tank design with low center of gravity
400 - 7,500 gallon capacity
Heads, baffles and sideshells are formed with a press brake, which allows for precise fit up of components
Fully enclosed equipment area
Removable canopy cover for easier equipment servicing
Equipment access from both sides
LED lighting wired to meet standard
LED work area lights

Product Specifications

General Technical Parameters
Overall Dimension
10310X2500X3200(mm)
Gross Vehicle Weight 28000(kg)
Curb Weight 10450(kg) Loading Weight 18000(kg)
Chassis Specification
Chassis Parameters Chassis Brand FAW
Cabin Row and half, right Hand Driving
Engine Power 340HP
Emission standard EURO2
Displacement 10000ml
Fuel type Diesel
Gearbox 9 Forward & 1 Reverse Gear
Front and Rear Axle load 6.5T/13Tx2
Wheel Base 4350+1350(mm)
Brake System Pneumatic
Steering Gear Power Assistant
Tire 11.00R20, 10 Pieces+one spare tire
Maximum speed 90(km/h)
Tank Body
Shape Monoblock Cylinder
Total Volume(m3) 18m3
Tanker Body Material 5-6mm carbon steel
Manhole Cover ∮500mm ,1 set with 1 breather valve
Bottom Valve 1 set
Discharging Valve 1 set ∮80mm discharging valve
Painting Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
Accessories One standard tool box


340HP Diesel Engine Crude Oil Fuel Tanker Truck Export To Africa Market

Key words:

Fuel bowser truck, fuel tanker truck, oil transport truck, oil truck tanker, light fuel tank truck, truck tank fuel, petrol tanker, petrol fuel tank, diesel dispensing truck, oil delivery truck, Mobile Fuel Truck, oil loading truck, oil refuelling truck, oil transport truck, oil truck tanker, light fuel tank truck, truck tank fuel, petrol tanker, petrol fuel tank, fuel bowser, diesel dispensing truck.

340HP Diesel Engine Crude Oil Fuel Tanker Truck Export To Africa Market

It can be divided into many compartments to transport different medium, which will make your transportation easy and safe.

340HP Diesel Engine Crude Oil Fuel Tanker Truck Export To Africa Market

Open mesh walkway on the right-hand side of the manhole cover, with rear mounted access ladder. Collapsible handrail made of aluminum, fixed as safety barrier, along the dome-pan on top of the diesel tank superstructure. The operation of the handrail is manually, next to the access ladder.

340HP Diesel Engine Crude Oil Fuel Tanker Truck Export To Africa Market


340HP Diesel Engine Crude Oil Fuel Tanker Truck Export To Africa Market

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship

After Sales Service

Email & Phone call tracking for each truck on timely manners.
