Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck
Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck
Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck
Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck
Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck
Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck
Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck
Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck
Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck
Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck
Specifications
Brand Name :
CLW
Model Number :
CLW0571BP
Certification :
BV, SGS, CCC
Place of Origin :
SUIZHOU, CHINA
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Units/Month
Delivery Time :
30-35 Working Days
Packaging Details :
naked, waxed, bulk ship, ro-ro
Brand :
Chinese famous brands, such as Sinotruk Howo, CAMC, Shacman, Foton, North-benz, JAC, ISUZU, etc.
Loading Capacity :
30tons, 40tons, 50tons
Lifting Type :
Front Tipping, Middle Tipping
Oil Cylinder Brand :
International Brand HYVA or Chinese Brand
Dumper Material :
High Quality Q345B
Thickness Of Dumper :
Bottom 10mm, Side 8mm, Or As Customer Request
Color :
White, Red, Yellow, Green, Or As Customer Request
Logo and Painting :
as Per Customer's Requests
Warranty :
1 year
Description

Brand New Sinotruk HOWO 40tons 6X4 Dump Truck Tipper Dumper Truck


Product Description

1) Dump truck brand: SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ, ISUZU, FOTON, etc.
2) Tipping Model: Front-tipping, Middle-tipping.
3) Hydraulic oil cylinder brand: International brand HYVA or Chinese famous brand.
4) High tensile steel for dumper materia: 4mm, 6mm, 8mm,10mm or as per customer's request.
5) Used in Construction or Mineral site for Transportation of mineral, stone, sand, garbage and etc.

Product Specification

Cabin HOWO 76 Standard Cab
With one sleeper, 70° hydraulically tillable to the front as attached photo for ref.		 Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck
Vehicle Main Dimensions (L x W x H) mm 8860*2496*3450
Wheel base (mm) 3825+1350
Wheel track (front/rear) (mm) 1500/1525
Approach/Departure angle(°) 19/24
Weight in KGS Tare Weight 12390kg
Loading Capacity 40000kg
Front axles loading capacity HR9 1x9000kg
Rear axles loading capacity HC16 2x16000kg
Max. driving speed(km/h) 85
Engine Brand Sinotruk Howo
Model WD615.47
Type 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 290HP
Emission standard Euro 2
Gearbox HW19710, 10 forwards & 2 reverse
Clutch Reinforced diaphragm clutch, diameter 430mm
Steering Gear ZF 8118, power steering, hydraulic steering with power assistance
Fuel tank (L) 300
Tire 12R22.5 tubeless tire,10 pieces with one spare
Brakes Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake

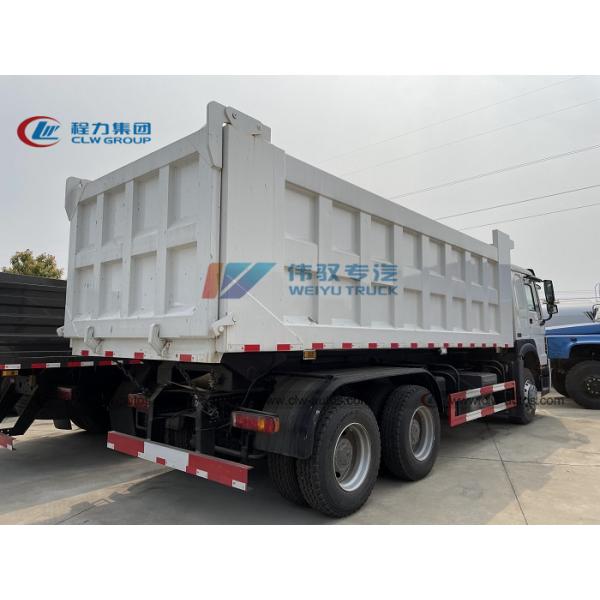

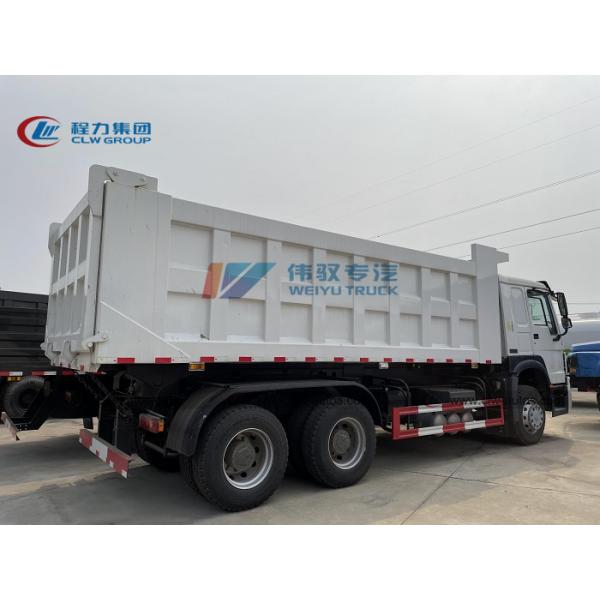

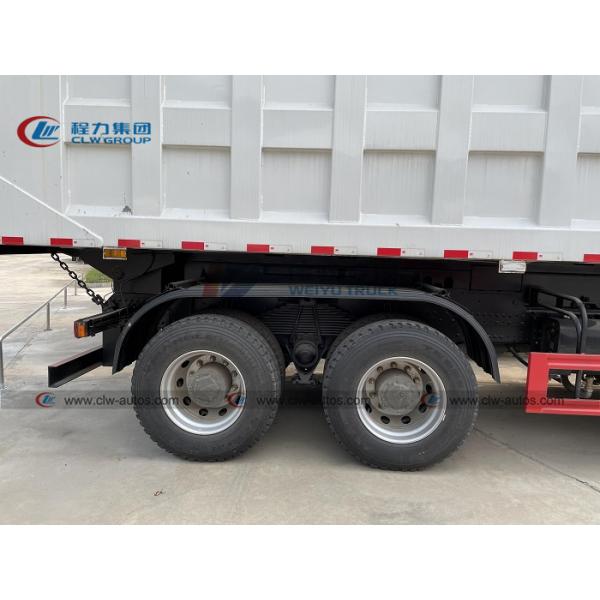

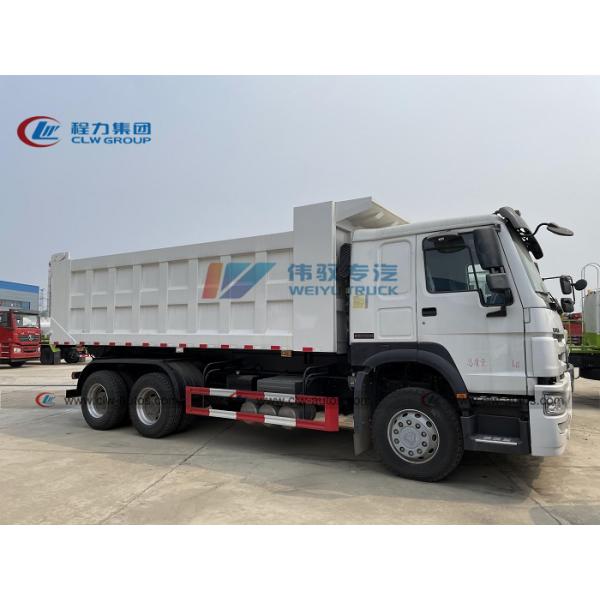

Reference Photos
Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck

Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck

Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck

Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck

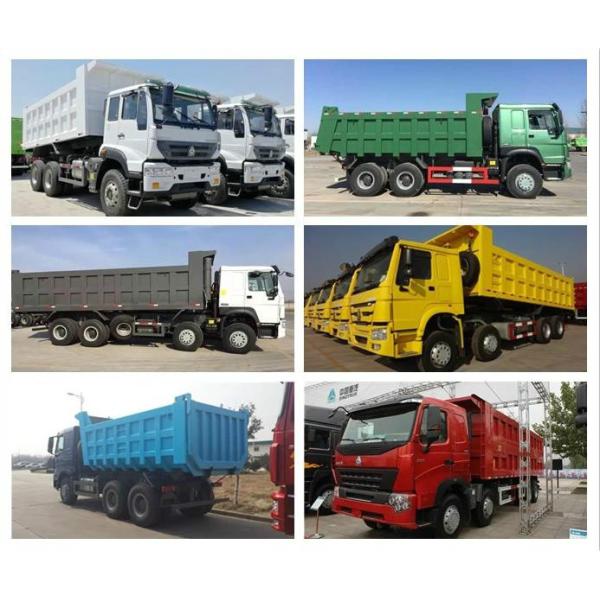

Other Related Dump Trucks
Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck


After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Lea for more details+86 155 2791 1810.

FAQ


Q1: What kinds of dump trucks I can order from your company?
A: There are various sizes and types of dump trucks,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied dump trucks to any overseas companies?
A: Yes,we offered dump trucks to many Africa and south-east Asian,south-American countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
