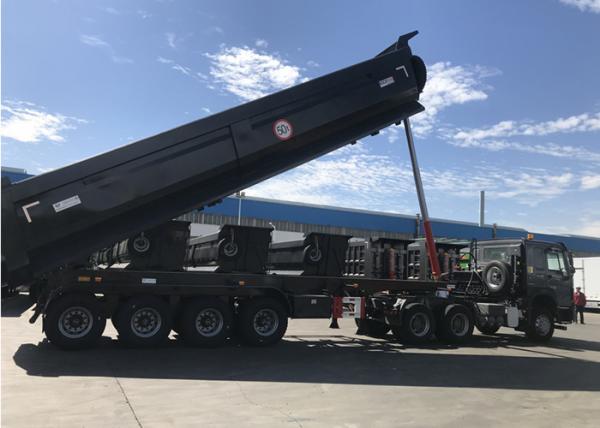

Front Axle Liftable 50t 60t Tipper Trailer With Air Bag Suspension
Front Axle Liftable 50t 60t Tipper Trailer With Air Bag Suspension
Front Axle Liftable 50t 60t Tipper Trailer With Air Bag Suspension
Front Axle Liftable 50t 60t Tipper Trailer With Air Bag Suspension
Front Axle Liftable 50t 60t Tipper Trailer With Air Bag Suspension
Front Axle Liftable 50t 60t Tipper Trailer With Air Bag Suspension
Front Axle Liftable 50t 60t Tipper Trailer With Air Bag Suspension
Front Axle Liftable 50t 60t Tipper Trailer With Air Bag Suspension
Front Axle Liftable 50t 60t Tipper Trailer With Air Bag Suspension
Front Axle Liftable 50t 60t Tipper Trailer With Air Bag Suspension
Front Axle Liftable 50t 60t Tipper Trailer With Air Bag Suspension
Front Axle Liftable 50t 60t Tipper Trailer With Air Bag Suspension
Specifications
Brand Name :
CLW
Model Number :
CLW20210611
Certification :
ISO9001, CCC, BV, SGS
Place of Origin :
SUIZHOU, HUBEI
MOQ :
1 unit
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 units per month
Delivery Time :
30-35 days after receiving the deposit
Packaging Details :
Naked or waxed before shipment
Tipper material :
Q345B, T700, HARDOX
Axle :
FUWA, BPW, L1, brand
Axle loading :
13tons, or 16tons
Tipper box :
24m3, 30M3, 32M3, 35M3
Loading capacity :
50tons, 60tons, 50T, 60T, 40TONS
Front axle :
13 tons, or 16 tons, liftable
Suspension :
Front: air bag, Rear: mechenical suspension.
Tipper body :
U-shape, or square shape
Description

4 Axle 50tons 60tons Tipper Trailer Front Axle Liftable 50t 60t Tipper Dumper Dump Semi Trailer with Air Bag Suspension

Product Description
1. Purpose: It used for transporting stone, soil, sand, steel material and different kinds of cargo.
2. Main parts: Suspension, Tire and axles.
3. Axle: Most of our customer all choose BPW or FUWA brand axle.
4. Tire: Double tire or Single tire for optional.
5. Landing leg: JOST or FUWA brand.
6. Customized service: All products can be produced as per customer's request if there any specifized requirements.

product Specification

DIMENSIONS
Tare Weight 12500kgs
Payload 60000KGS
Overall Length 10800mm
Overall Width 2465mm
Dump body size 9300mmx2300mmx1500mm, 32 cubic meters.
Photo for reference, final produce can be made according to exact requirements
DUMPER BODY
Volume 32 cbm
Side and Front Wall 5mm thickness, Made by T700L high tensile strength steel
Floor 6mm thickness, Made by T700L High tensile strength steel
SPECIFICATION
Chassis Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Double Middle Flange 6mm and 8mm ; Bottom Flange 16mm,width 140mm.
Axle 4 axles, The first axle is liftable.
FUWA Brand 13 ton
Hydraulic System One set of HYVA Brand cylinder, 191
Suspension The first suspension is air bag, others are German design mechanical suspension,
Leaf Spring 13-piece leaf spring. 11x100
King Pin JOST brand 2” Bolt-in King Pin
Landing Gear JOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim 9.00-22.5 wheel rim, 17 pieces including one spare tire.
Tyre 315/80R22.5 tubeless tire with one spare tire, 17 pieces including one spare tire
Spare Tire One set of spare tire including a carrier
Braking System WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories One standard tool box
Other equipment With ABS, Tarpaulin, Electrical control by ASPOCK type.

4 axle 32M3 35M3 50T 60T dump dumper tipper semi-trailer with front axle liftable air bag

Front Axle Liftable 50t 60t Tipper Trailer With Air Bag SuspensionFront Axle Liftable 50t 60t Tipper Trailer With Air Bag SuspensionFront Axle Liftable 50t 60t Tipper Trailer With Air Bag SuspensionFront Axle Liftable 50t 60t Tipper Trailer With Air Bag SuspensionFront Axle Liftable 50t 60t Tipper Trailer With Air Bag Suspension

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

FAQ

Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.

Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.

Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .


Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.

Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
