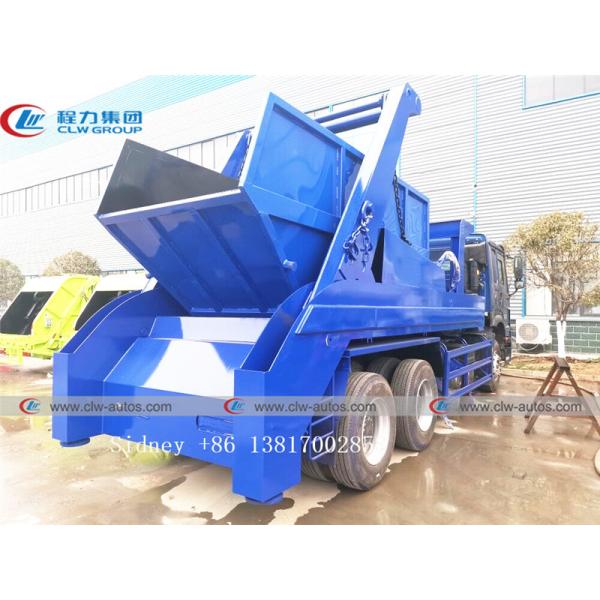

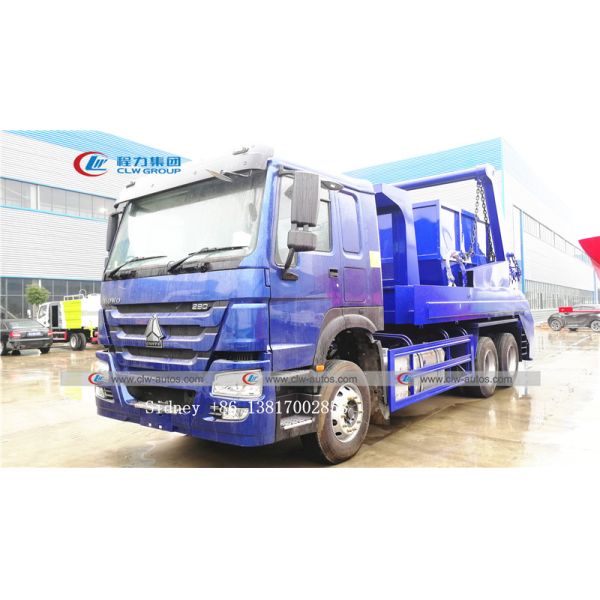

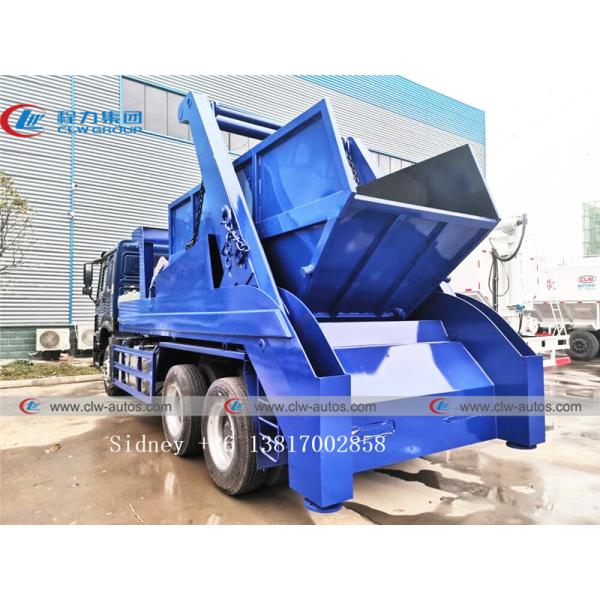

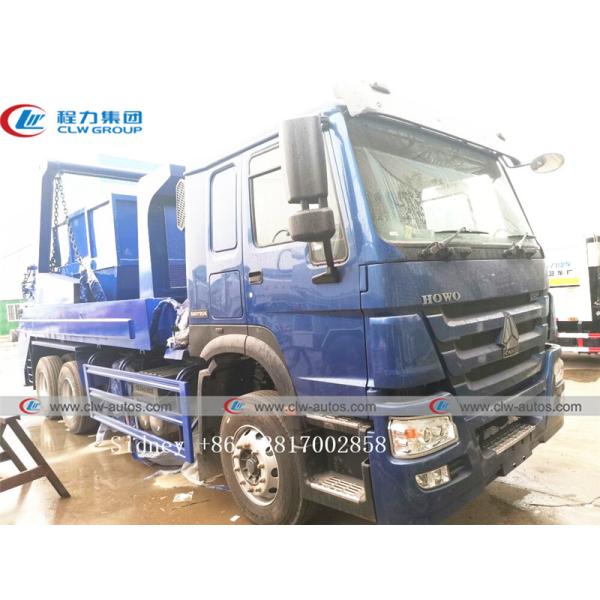

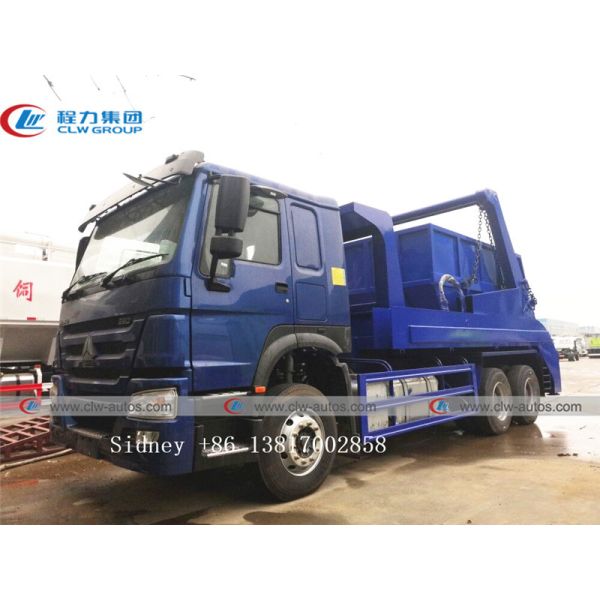

12cbm Sinotruk HOWO 6X4 Swing Arm Garbage Truck
12cbm Sinotruk HOWO 6X4 Swing Arm Garbage Truck
12cbm Sinotruk HOWO 6X4 Swing Arm Garbage Truck
12cbm Sinotruk HOWO 6X4 Swing Arm Garbage Truck
12cbm Sinotruk HOWO 6X4 Swing Arm Garbage Truck
12cbm Sinotruk HOWO 6X4 Swing Arm Garbage Truck
12cbm Sinotruk HOWO 6X4 Swing Arm Garbage Truck
12cbm Sinotruk HOWO 6X4 Swing Arm Garbage Truck
12cbm Sinotruk HOWO 6X4 Swing Arm Garbage Truck
12cbm Sinotruk HOWO 6X4 Swing Arm Garbage Truck
12cbm Sinotruk HOWO 6X4 Swing Arm Garbage Truck
12cbm Sinotruk HOWO 6X4 Swing Arm Garbage Truck
Specifications
Brand Name :
CLW
Model Number :
CLW5143
Certification :
CCC, ISO, BV, SGS
Place of Origin :
Suizhou,China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500Units/Month
Delivery Time :
30-35 days
Packaging Details :
Naked Pack with Wax
Chassis Brand :
Dongfeng, Foton, Isuzu, Sinotruk, etc.
Hopper Size :
12cbm, Ground Type
Loading Capacity :
10Ton
Hopper Thickness :
5mm, Carbon Steel Q235B
Protective Material :
Q235A Carbon Steel
Hopper Quantity :
As Per Customer's Request
Dump type :
Hydraulic cylinder lifting and self-loading
Controlling Way :
Three-way hydraulic control valve
Color :
As Per Customer's Request
Warranty :
1 year
Description

SINOTRUK HOWO 12CBM 6X4 Swing-Arm type garbage truck


Description

The swing arm type garbage truck is divided into two types: the ground type and the pit type. The swing arm garbage bucket has two types of square and boat type. The vehicle is equipped with one or more garbage buckets, and the garbage bucket is placed or placed by two swing arms.

1. Making garbage collection simple: change the dirty appearance of the city and eliminate the secondary pollution;

2. Easy Full Automatic Operation: electrical control system for loading and unloading operations.

3. One Person Operation: Reducing sanitation work, greatly improves the working efficiency.

Specification

SINOTRUK HOWO 4X2 Swing-arm Garbage Truck
Cabin with one sleeper, with two seats, with A/C,70° hydraulically tillable to the front

Vehicle Main Dimensions

 (L x W x H)mm 7600x2500x3900
Wheel base (mm) 4200
Wheel track (front/rear) (mm) 1900/1860
Approach/Departure angle(°) 16/17

Weight in KGS

 Tare Weight 6635
Loading Capacity 10000
Front axles loading capacity 1x5000
Rear axles loading capacity 1x13000
Max. driving speed(km/h) 95

Engine

Brand YUCHAI
Model YC6J190
Type 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 190 HP
Emission standard Euro 2
Gearbox DC6J65TC, 6 forwards & 1 reverse
Clutch

Push type diaphragm spring clutch, diameter 395 mm
Tire 9.00-20, All nylon tire, 7pieces
Garbage System

1, Box Size: 12 CBM matched

2,PTO motivated hydraulic system

3,Hydraulic cylinder: two cylinders with lifting arm and two cylinder with landing leg


Reference Photos

12cbm Sinotruk HOWO 6X4 Swing Arm Garbage Truck12cbm Sinotruk HOWO 6X4 Swing Arm Garbage Truck12cbm Sinotruk HOWO 6X4 Swing Arm Garbage Truck
12cbm Sinotruk HOWO 6X4 Swing Arm Garbage Truck12cbm Sinotruk HOWO 6X4 Swing Arm Garbage Truck12cbm Sinotruk HOWO 6X4 Swing Arm Garbage Truck

Main Structure and Details
12cbm Sinotruk HOWO 6X4 Swing Arm Garbage Truck

Main Parts
12cbm Sinotruk HOWO 6X4 Swing Arm Garbage Truck
Bulk Order of 120 Units to Madagascar
12cbm Sinotruk HOWO 6X4 Swing Arm Garbage Truck
12cbm Sinotruk HOWO 6X4 Swing Arm Garbage Truck

Different Types of Garbage Truck
12cbm Sinotruk HOWO 6X4 Swing Arm Garbage Truck
12cbm Sinotruk HOWO 6X4 Swing Arm Garbage Truck


Sales Service
1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of garbage truck I can order from your company?

A: We can supply different sizes of garbage truck as client's request. As for the capacity, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.

Q2: What is your production standard of garbage Truck?
A: China GB local standard.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
