Specifications
Brand Name :
CLW
Model Number :
CLW2020721
Certification :
CCC, ISO9001, SGS, BV
Place of Origin :
SUIZHOU. HUBEI, CHINA.
MOQ :
1 sets
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 units per Month.
Delivery Time :
40 working days
Packaging Details :
Naked or Waxed before delivery
Product Name :
ISUZU wrecker recovery rescue towing truck
Truck Brand :
Sinotruk HOWO, SHACMAN, FAW, FOTON, JAC etc
Drive Model :
4x2, 6 wheels, 6 wheeler
Drive Type :
Right Hand Drive, or Left Hand Drive.
Max. Loading Weight :
4000KG, 5000KG, 4 TONS, 5 TONS,
Equipment :
Hydraulic pump, Oil Cylinder
Main Parts :
Boom, Hoisting, Winches, Landing Leg
Wire Rope :
25 Meters
Other :
With XCMG brand Straight arm crane
Description

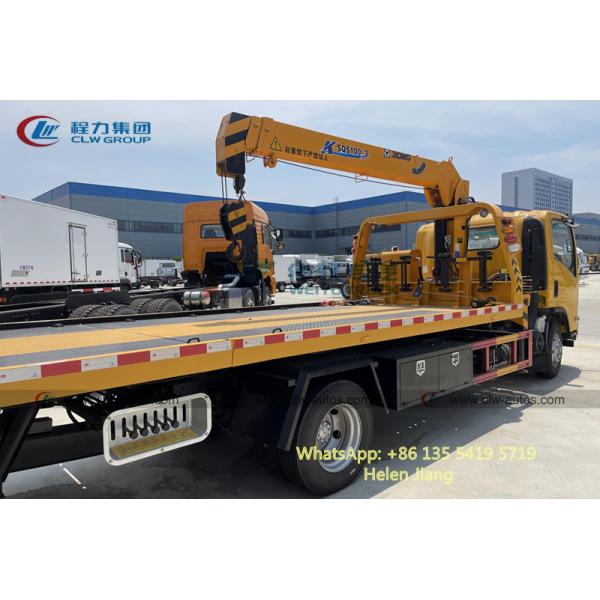

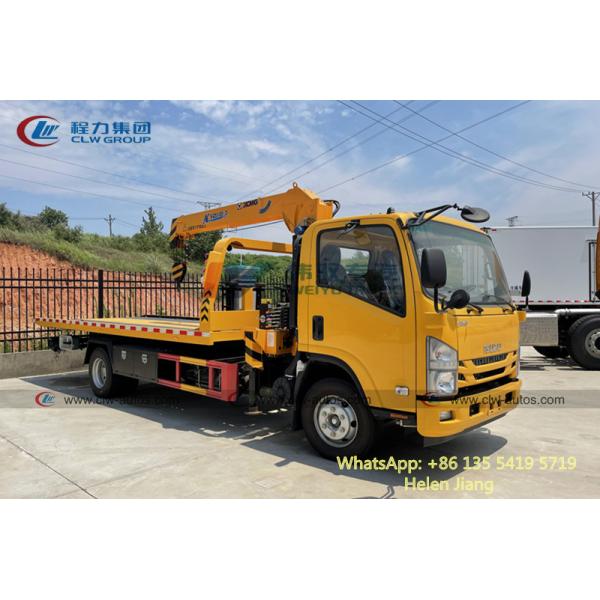

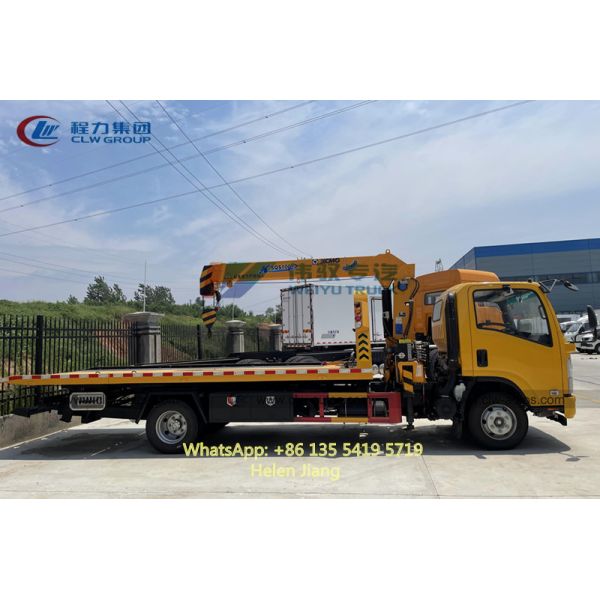

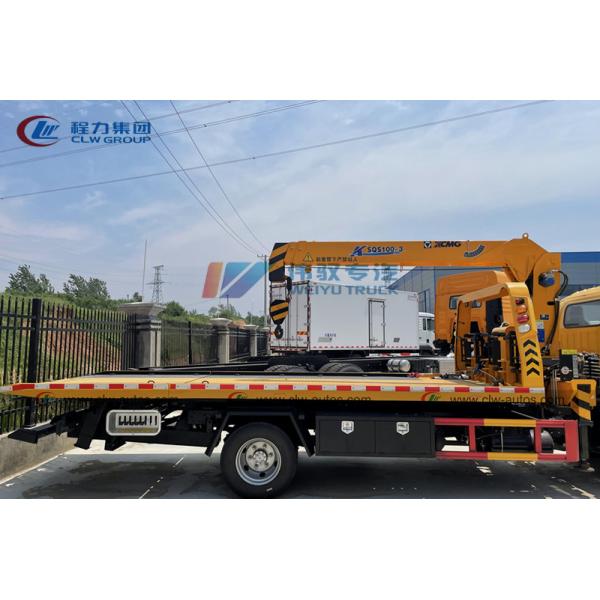

Japanese ISUZU 4x2 5T Road Recovery Wrecker Flatbed Towing Truck With XCMG Crane

Product Description:

1. Purpose of 4ton flatbed tow truck: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of 4ton flatbed tow truc:howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman.
3. Spare parts of 4ton flatbed tow truc: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of flatbed tow truc:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
5. The customers can choose to install the crane.

Specification:

Description ISUZU 4X2 Flatbed Towing Truck LHD
Drive Model 4X2
Chassis QL1070
Vehicle Main Dimensions Dimensions(L x W x H)mm 7645X2180X2610
Wheel base (mm) 3815
Overhang (front/rear) (mm) 1015/1815
Wheel track (front/rear) (mm) 1504/1425
Approach/Departure angle(°) 24/14
Weight in KGS GVW. 6990
Curb Weight 2220
Max. driving speed(km/h) 95
Allowable passengers in cab 2
Engine Model 4KH1-TCG40
Type 4-stroke direct injection , 4cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 120
Emission standard Euro IV
Gearbox 5 forwards & 1 reverse
Fuel tank (L) 120L
Tire 6.50-16-14PR, 6 pieces+1 spare tire
Operation control system Electrically hydraulic control
UPPER
Platform Organ Length(mm)×Width(mm) 5600*2300
Operating stroke(mm) 2680
Min. angle of slope(°) 8
Rated loading weight(kg) 4000
Rated winch traction weight(kg) 4000
Length of steel wire rope(m) 21
Ground clearance of cage floor(mm) 470
Hoisting Organ Max. length of extended boom(mm) 1680
Rated lifting weight(kg) 3635
Max. extended lifting weight(kg) 2500
Rated traction weight(kg) 5000
Elevation of boom (upper/ lower)(°) 9~-10
Other Equipment One tool box, one alarm lamp, two auxiliary wheels and 4 bandages
With 1-2tons XCMG brand Straight Arm Crane
LHD ISUZU 4x2 5T Flatbed Towing Truck With XCMG CraneLHD ISUZU 4x2 5T Flatbed Towing Truck With XCMG CraneLHD ISUZU 4x2 5T Flatbed Towing Truck With XCMG CraneLHD ISUZU 4x2 5T Flatbed Towing Truck With XCMG CraneLHD ISUZU 4x2 5T Flatbed Towing Truck With XCMG CraneLHD ISUZU 4x2 5T Flatbed Towing Truck With XCMG Crane

CLW group, which was appointed by the Development and Reform Committee of China is a professional company who deal in
different kinds of special vehicles, trailers and construction machinery.

  • Certificate: ASME, ISO, BV, SGS, CCC etc.
  • More than 30 independents workshops.
  • 1000 sets of equipment, 25 assemble lines.
  • 300 senior engineers and technicians. About 8000 workers.
  • 800kinds of LPG, trucks and semi-trailers.
  • 20 years wholesale experience
  • Turnover 250 million and Export 20million annually
  • Turnover 2 billion trucks and semi-trailers annually.
  • Trucks and trailers Sold to 90 countries
  • Cooperates DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
