Product Advantages
1. Airtight performance: The sealed dump garbage truck has good airtight performance, ensuring that there will be no dust or leakage during transportation, which is the basic requirement for installing the roof system.
2. Safety performance: The sealed dump garbage truck has good safety performance. Actually, the closed box cover cannot exceed the truck body too much, which will affects normal driving and poses a safety hazard. The changes to the entire vehicle should be reduced to ensure that the center of gravity remains unchanged when the vehicle is loaded. The service life of the entire closed garbage box cover system will be much longer than other types of garbage trucks, and the maintenance cost will be much less.
3. Use performance: The sealed dump garbage truck is easy to use, and the roof system can be normally opened and retracted in a relatively short period of time, and the cargo will not be affected during the loading and unloading process.
4. Appearance performance: The sealed dump garbage truck is small and light, not occupy the internal space of the garbage box, and has high transportation efficiency.
Product Description
General Technical Parameter | ||||||
Product Name | Garbage Truck | Gross Weight(Kg) | 6010 | |||
Rated Payload(Kg) | 5865 | Axle No. | 2 | |||
Curb Weight(Kg) | 3500 | Overall Dimension(mm) | 5650x2000x2250 | |||
Cab Allowed Persons )ab Allowed PersonsTrucky Truck | 2 | Box Inner Dimension(mm) | 3600x2380x3500 | |||
F/R Suspension(mm) | 1032/1168 | Wheelbase(mm) | 3300 | |||
Axle Load(Kg) | 2280/3730 | Top Speed(Km/h) | 90 | |||
Chassis Technical Parameter | ||||||
Chassis Name | Truck chassis | Manufacturer | Dongfeng Automobile Co.,Ltd | |||
Overall Dimension(mm) | 5820×1940×2080 | Tyre No. | 6 | |||
App./ Dep. Angle(º) | 19/15 | Tyre Specification | 7.00-16 | |||
Spring leaf No. | 8/9+5 | Front /Rear Track(mm) | 1506 /1466 | |||
Engine Technical Parameters | ||||||
Engine Model | YC4120-C3F | Manufacturer | Dongfeng Chaochai Power Co., Ltd | |||
Displacement(ml) | 3856 | Power( HP/ Kw) | 120HP/95KW | |||
Fuel Type | Diesel | Emission Standard | Euro II | |||
Box Technical Parameters | ||||||
Box inner dimension(mm) | 3600x1750x1100 | Box Material | High quality carbon steel |

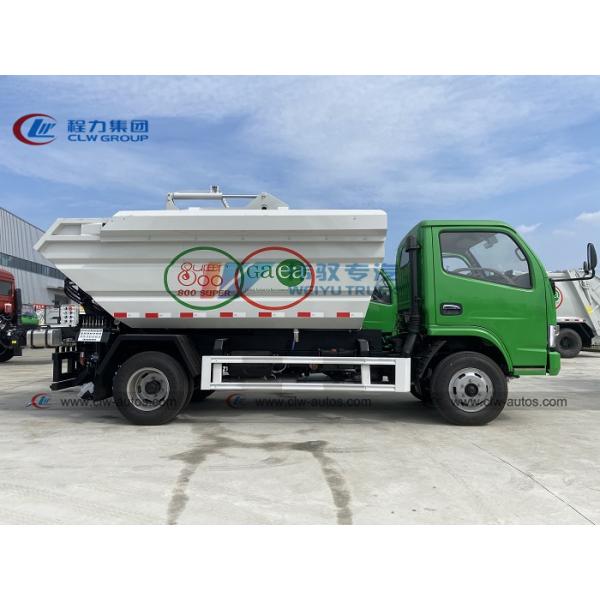

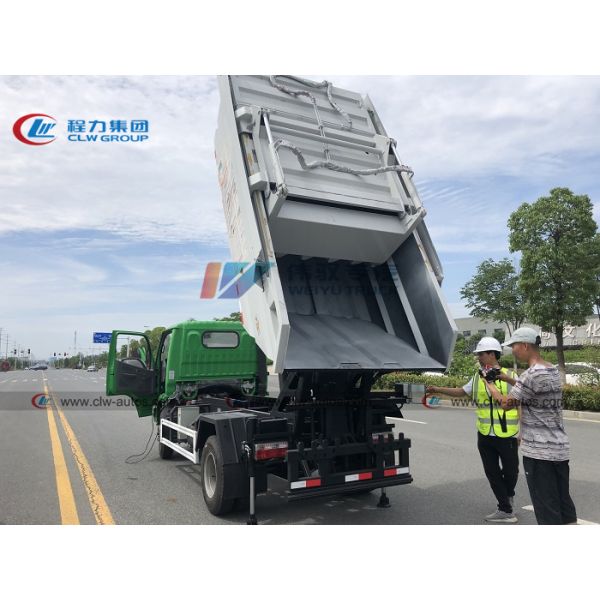

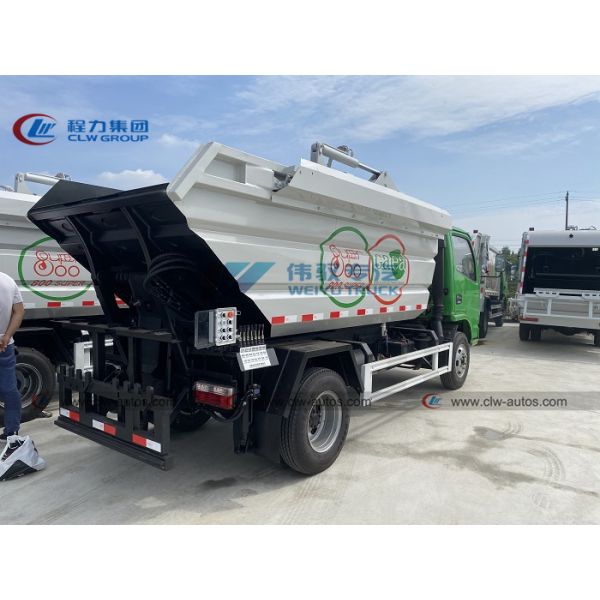

Reference Photos

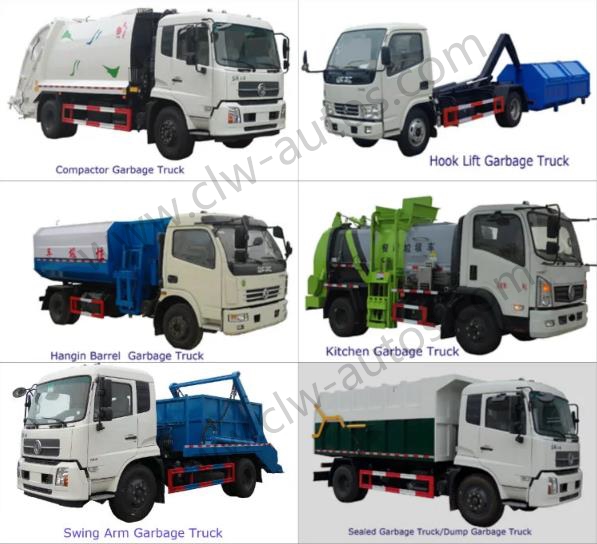

Different Types of Garbage Truck
After-sales Service
1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Flora For Lea Details: +86 155 2791 1810.
FAQ
Q1: What kinds of garbage truck I can order from your company?
A: We can supply different kinds and sizes garbage trucks as client's request. Basically speaking, we can supply 5CBM to 20CBM compactor garbage truck, hook lift garbage truck, swing arm garbage truck, hanging barrel garbage truck, etc. Pls contact with us for more technical details and discussion.
Q2: What is your production standard of garbage trucks?
A: China GB local standard.
Q3: Can we adopts International brand equipment or accessories for garbage truck?
A: Sure, we already cooperated with many international brand suppliers.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
