Specifications
Brand Name :
CLW
Model Number :
CLW20220110
Certification :
ISO9001, CCC, BV, SGS
Place of Origin :
SUIZHOU, HUBEI, CHINA
MOQ :
1 unit
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 units per month
Delivery Time :
30-35 days after receiving the deposit
Packaging Details :
Naked or waxed before shipment
Dimension :
13000*3000*3850mm
Axle :
FUWA, BPW, L1, brand
Axle loading :
13tons, or 16tons. 20Tons
Nos. of alxe :
2 axle, 3 axle, Tri-axle
Suspension :
mechenical suspension.
Length :
13 meters, or Customized
Landing Gear :
JOST Brand
Loading capacity :
40tons, 50tons, 60 tons, 80 tons.
Function :
Cars, SUV, transport, carrier
Product name :
SUV Cars transport trailer, car carrier semi trailer
Load :
50 60 80 100 Tons
Description

SUV Cars transport 2 or 3 Axles 6 Cars transport 8 units Car Carrier Semi truck trailers

Description:

1. Our trailer adopts hydraulic lifting system, which saves time and labor and has high working efficiency

2. A pair of ladders are provided at the rear end for loading and unloading of commercial vehicles (the ladder is light and durable, and made of high-strength square tube)

3. The trailer is designed to be loaded in two layers, and the height of the two layers can be adjusted (the space for loading commercial vehicles is more reasonable)

4. Rear tail part - if the vehicle is not loaded with enough data, the rear tail can be pulled and lengthened by about 1 meter


- Main beam material: Q345b
Good mechanical properties, high mild, good ductility and weldability, is mainly used as the low-pressure containers, tanks, vehicles, cranes, mining machinery, power plants, bridges, etc. under dynamic load configuration

- Assembly
The entire frame is positioned in a dedicated carriage assembly, welded, reasonable structure, high strength, beautiful appearance


Parameters for SUV Cars transport 2 or 3 Axles 6 Cars transport 8 units Car Carrier Semi truck trailers:

Main size Overall length 15000mm
Overall width 2700mm
Overall height 3100mm
Loading capacity Loading 8 units of cars.
Capacity of 25Tons.
Chassis Main beam Material of high strength steel T700.
Height 400mm.
Welded by automatic submerged-processes.
Main cross beam Material is high strength steel T700.
Welded by automatic submerged-arc processes
Posts Main posts Material of high tensile steel T700.
5 pairs of each trailer
Side bars Material is high strength steel T700.
Multi numbers installed.
Floor Material Manganese steel plate floor thickness of 3mm.
Multi holes designed.
Yellow and red painted track.
Landing gear 20T model landing gear, brand Yahua, with static capacity of 50T.
Single speed linked type, operated at one side.
King pin 2 inches size, installed on the kingpin plate.
JOST brand.
Axle 2 sets of 13T model axles.
Axle beam 1840mm.
Axle loading 13000kgs.
Tire Tire sized 10R22.5, Double Star or Triangle brand.
4 sets of tires assembled with wheel rim per trailer.
Wheel rim Sized 8.0-20, Zhengxing brand.
4 pcs of wheel rim per trailer.
Hydraulic
Cylinders		 5 units (2 sets of each unit) of hydraulic cylinders installed, to lift the second floor and cars.
Youggu brand.
First unit At the front post, out&back, extend 600mm.
Second unit At the end post of gooseneck, out&back, extend 600mm.
Third unit Under the aircraft style plate, to lift single car, out&back, extend 900mm.
Forth unit At the post in front of tire, out&back, extend 900mm.
Fifth unit At the end post of trailer, only out, back by the cars' gravity, extend 1600mm.
Suspension Mechanical steel suspension system, double axles type.
4 sets of leaf springs installed.
Brake sysem Dual line air drum brake system with T30/30 type double brake chambers on each axle.
Light system 12v/24v light system.
LED lights, including side, rear, turning.
ABS system ABS system installed, HN or Kemi brand.
Others Color optional.
One set of standard tools in tool box.
One bag of belts for firming the cars.

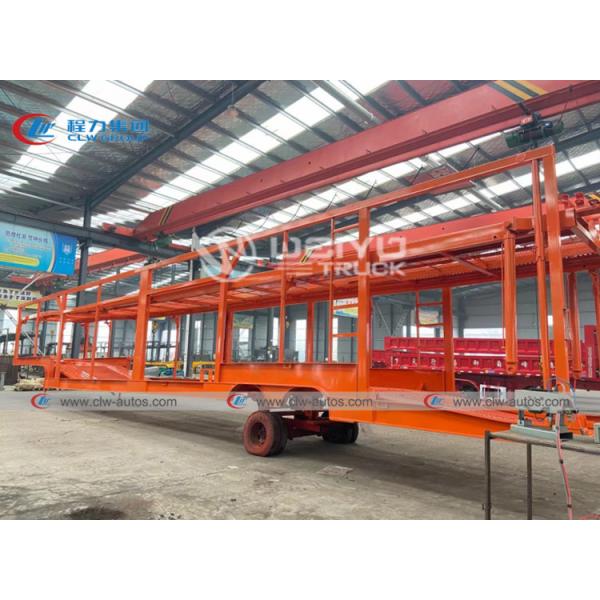

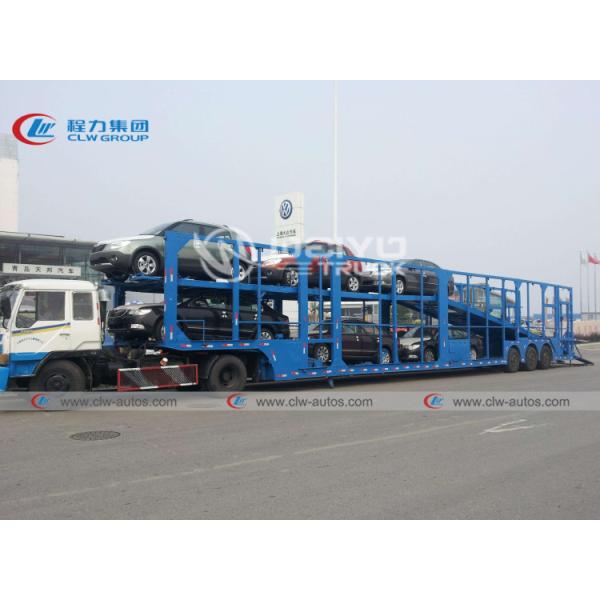

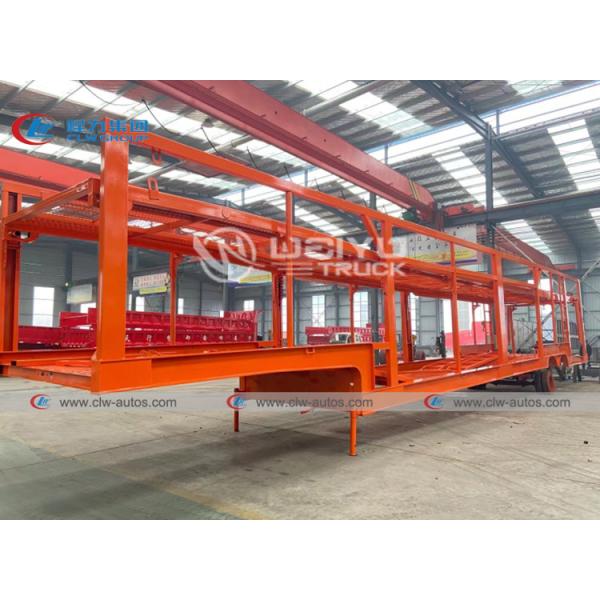

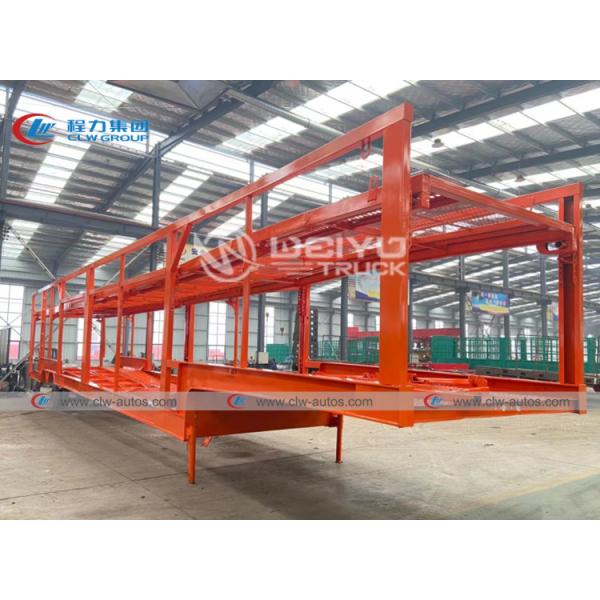

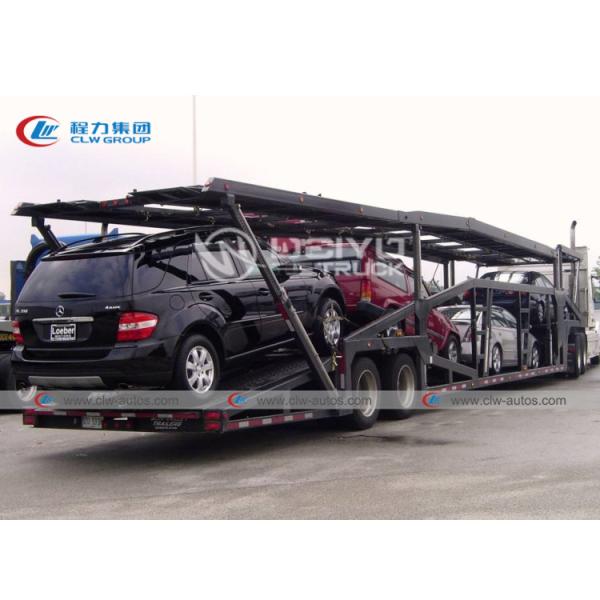

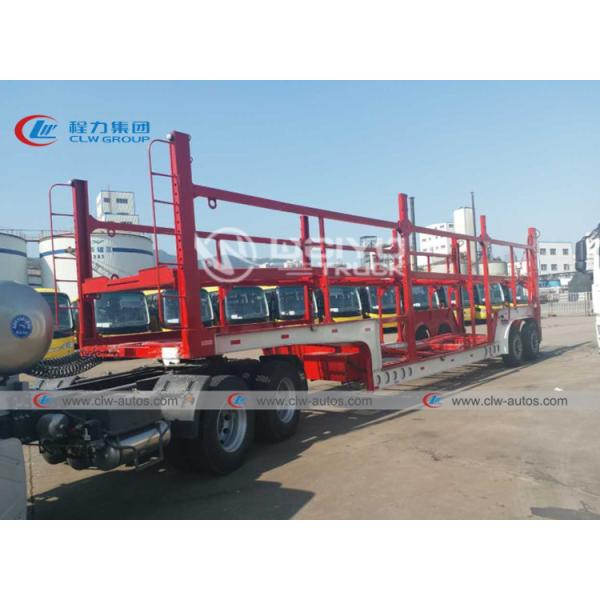

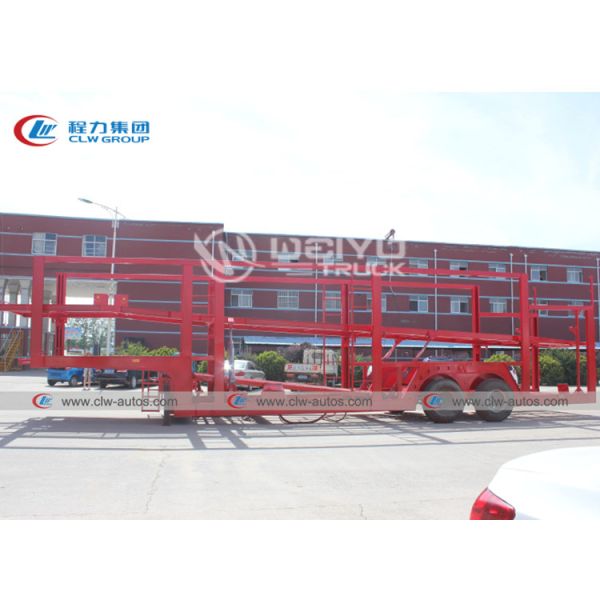

More pictures for SUV Cars transport 2 or 3 Axles 6 Cars transport 8 units Car Carrier Semi truck trailers:

2 / 3 Axle Semi Truck Trailers For SUV Transport2 / 3 Axle Semi Truck Trailers For SUV Transport2 / 3 Axle Semi Truck Trailers For SUV Transport2 / 3 Axle Semi Truck Trailers For SUV Transport2 / 3 Axle Semi Truck Trailers For SUV Transport2 / 3 Axle Semi Truck Trailers For SUV Transport2 / 3 Axle Semi Truck Trailers For SUV Transport
