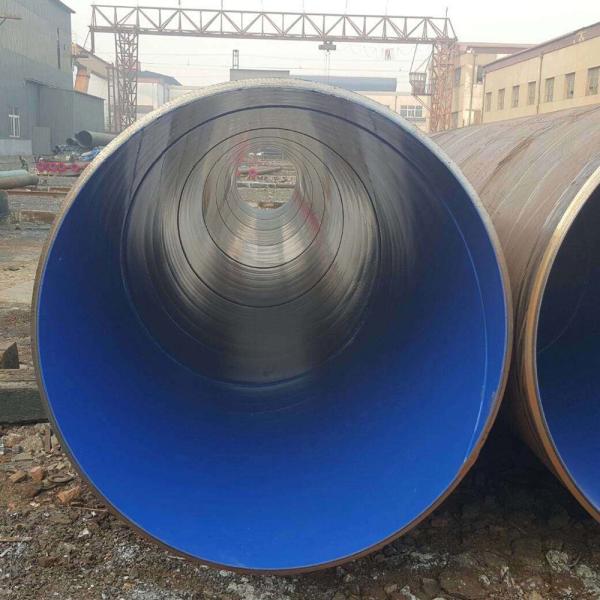

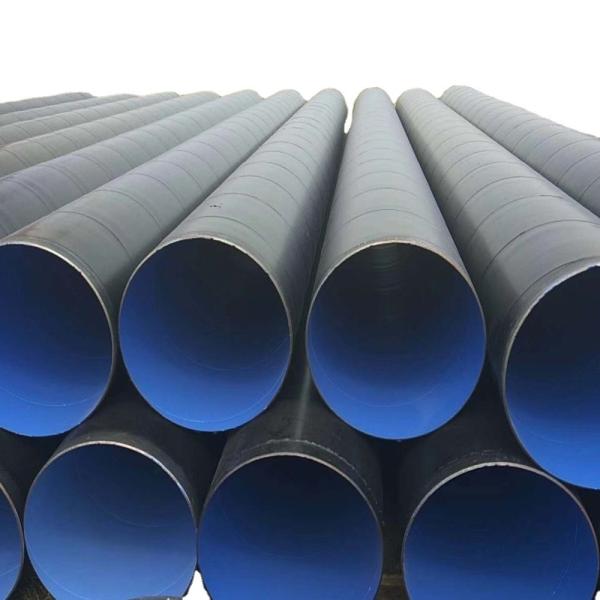

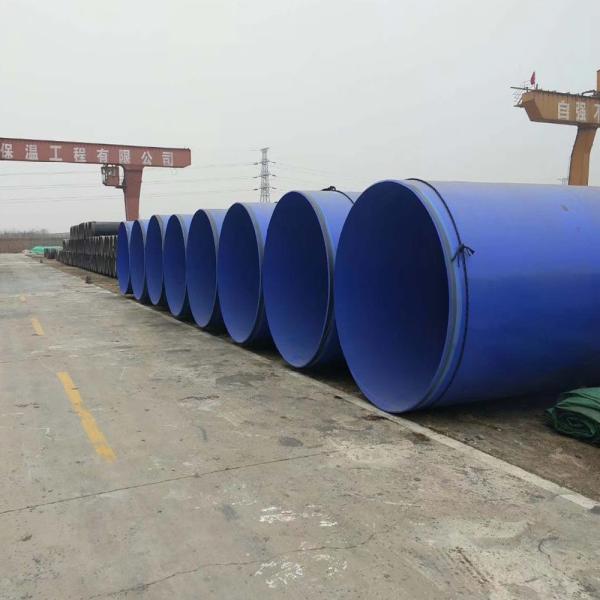

Grade B 26 Inch Fbe Spiral Welded Tube , 3lpe SSAW Welded Pipe
Grade B 26 Inch Fbe Spiral Welded Tube , 3lpe SSAW Welded Pipe
Grade B 26 Inch Fbe Spiral Welded Tube , 3lpe SSAW Welded Pipe
Grade B 26 Inch Fbe Spiral Welded Tube , 3lpe SSAW Welded Pipe
Grade B 26 Inch Fbe Spiral Welded Tube , 3lpe SSAW Welded Pipe
Grade B 26 Inch Fbe Spiral Welded Tube , 3lpe SSAW Welded Pipe
Grade B 26 Inch Fbe Spiral Welded Tube , 3lpe SSAW Welded Pipe
Grade B 26 Inch Fbe Spiral Welded Tube , 3lpe SSAW Welded Pipe
Specifications
Place of Origin :
Tianjin China
Packaging Details :
bulk packing suitable shipment
Supply Ability :
800 tons per day
Price :
To be negotiated
Brand Name :
Xinyue Steel
Model Number :
SSAW Steel Pipe
Certification :
API CE
MOQ :
1 Tons
Payment Terms :
L/C, T/T
Delivery Time :
7 - 21 days
Outer Diameter :
660mm
Thickness :
1.24 - 63.5 mm
Length :
12M, 6m, 2-12m, SRL, DRL
Technique :
SAW
Tolerance :
±10%
Product name :
3LPE FBE spiral Steel Pipe
End protector :
Plastic Pipe Cap, Iron Steel Cap
Port :
Tianjin Port
Description

Api 5l Grade B 26 Inch 3lpe Fbe Ssaw Spiral Welded Steel Pipe For Water Project


Grade B 26 Inch Fbe Spiral Welded Tube , 3lpe SSAW Welded Pipe

Product name: Spiral Submerged-arc Welded Steel Pipe / SSAW Steel Pipe
Usage: Low pressure liquid delivery, such as water, gas, and oil, Offshore Piling Pipe / Port Construction Pipe, Structure Pipe
Standard: API 5L, API 5CT, ASTM A252, ASTM 53, EN10217, EN10219, BS 5950, ASTM A572 , JIS, IS,
Certificate: EN10217, EN10219, API 5L PSL1/ PSL2, API 5CT
Out Diameter: 219.1 - 3048mm
Wall Thickness: 5 - 30mm
Length: Up to 70m
Steel Grade: API 5L: GR A, GR B, X42,X46, X56, X60,X65,X70
ASTM A252 GR 1, GR 2, GR 3
ASTM A53: GR A, GR B, GR C, GR D
BS 4360: Grade 43, Grade 50
EN: S275, S275JR, S355JRH, S355J2H
Surface Treatment: Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement
Test: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test.
Mill Test Certificate: EN 10204/3.1B


Advantages of spiral welded pipe:

(1) Steel pipes of different diameters can be produced using strip steel of the same width, and
steel pipes of large diameter can be produced from narrow strip steel.
(2) Under the same pressure conditions, the stress of the
spiral welded seam is smaller than that of the straight seam, which is 75% to 90% of that of the straight seam welded pipe, so it can withstand greater pressure. Compared with the straight seam welded pipe of the same outer diameter, the wall thickness can be reduced by 10% to 25% under the same pressure.
(3) The size is accurate, the general diameter tolerance does not exceed 0.12%, the deflection is less than 1/2000, and the ovality is less than 1%. Generally, the sizing and straightening process can be omitted.
(4) Continuous production is possible. In theory, long steel pipes can be produced, with small head and tail loss, and can
increase the metal utilization rate by 6% to 8%.
(5) The equipment is light in weight and low initial investment. It can be made into a trailer-type mobile unit to directly produce welded pipes at the construction site where the pipeline is laid.

Xinyue has invested several production bases in Tianjin,hebei and shandong Province, manufacturing ERW Steel Pipe,LSAW Steel pipe,SSAW STEEL PIPE, Seamless Steel Pipe,OCTG Tubing& Casing,Drill Pipe,SSAW Steel pipe,Hollow Section Tube,Scaffolding and couplers.

Our factory has large stock of steel pipe, galvanized steel pipe, square rectangular steel pipe, seamless steel pipe, spiral steel pipe etc, we can provide different size steel pipe, can do fast delivery.

Our Services

Grade B 26 Inch Fbe Spiral Welded Tube , 3lpe SSAW Welded Pipe

Grade B 26 Inch Fbe Spiral Welded Tube , 3lpe SSAW Welded Pipe

Company Information

Grade B 26 Inch Fbe Spiral Welded Tube , 3lpe SSAW Welded Pipe

Grade B 26 Inch Fbe Spiral Welded Tube , 3lpe SSAW Welded Pipe

Packaging & Shipping

Grade B 26 Inch Fbe Spiral Welded Tube , 3lpe SSAW Welded Pipe

FAQ


Q1: What's the main application of SSAW steel pipe?
A1: SSAW is widely used as water transmission pipe, Line pipe, and Piling Pipe.

Q2: What's Xinyue's Product Range for SSAW?
A2: Xinyue's Product Range for SSAW steel pipe is as below:
OD: 219.1mm to 4064mm
WT: 4mm-25.4mm
Length: up to 70m.

Q3: What is your main market for SSAW steel pipe?
A3:Main market for SSAW steel pipe includes Middle East, South Africa, Southeast Asia, Australian and Latin America.

Q4: Is it OK to print customer’s logo on steel pipe product?
A4: Yes. please inform us formally before our production and confirm the design.

Q5: How long is your delivery time?
A5: Generally it is 10-15 days for the stock products. And 20-30 days if the goods are not in stock, according to quantity requirement. And sooner if you can accept partial department.
