Rotary 15HP Screw Type Air Compressor Energy Saving Direct Driven
Rotary 15HP Screw Type Air Compressor Energy Saving Direct Driven
Rotary 15HP Screw Type Air Compressor Energy Saving Direct Driven
Rotary 15HP Screw Type Air Compressor Energy Saving Direct Driven
Rotary 15HP Screw Type Air Compressor Energy Saving Direct Driven
Rotary 15HP Screw Type Air Compressor Energy Saving Direct Driven
Specifications
Brand Name :
LTC
Model Number :
LFS-15
Certification :
CE/ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 set
Price :
USD1430~1630 per set
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
600 sets per month
Delivery Time :
3-5 working days
Packaging Details :
Export wooden box
Product Name :
11KW 15HP Rotary Air Compressor
Pressure :
7bar 10bar 13bar
Air Delivery :
1.65m³/min
Airend :
HANBELL/BAOSI
Voltage :
Standard: 380V/50Hz/3ph, can be customized
Speed :
Fixed speed&variable speed&PM VSD available
Dimension :
1100*750*1050mm
Weight :
300KG
Description

Rotary Air Compressor Direct Driven Energy-Saving Factory Price

Rotary Air Compressor description

A rotary air compressor is a type of air compressor that uses a rotary screw or vane to compress air. This type of compressor is commonly used in industrial applications where a large volume of compressed air is required.

Rotary Air Compressor Features:

1. Intelligent control system: Omni-directional seven-fold protection, under-voltage protection, short-phase protection, reverse-phase protection, over-current protection, temperature protection, overload protection, high-voltage protection and triple early warning settings, real-time control unit safe and efficient operation.

2. High-efficiency screw air end: Screw air end is the heart pad of air compressor, which directly determines the efficiency and service life of the machine. LTC compressor adopts internationally recognized advanced SAP rotor profile, forged steel and German rotor heat treatment processing technology, which has good tensile strength, yield strength, impact toughness and fatigue resistance and other nodular cast iron screw rotors. In comparison the efficiency difference is 15%. which is more obvious after one year of use.

Technical Parameters:

Model

KW

HP

Air Delivery

(m³/min)

Weight

(KG)

Dimension(mm)

(L*W*H)

Outlet

Diameter

Noise

dB(A)
7bar 10bar 13bar
LFS-10 7.5 10 1.15 1.0 0.8 240 920*650*900 G3/4° 65±2
LFS-15 11 15 1.65 1.5 1.2 300 1100*750*1050 G3/4° 65±2
LFS-20 15 20 2.35 1.8 1.65 340 1100*750*1050 G3/4° 65±2
LFS-30 22 30 3.62 3.3 2.6 550 1350*870*1120 G1° 68±2
LFS-40 30 40 5.0 4.2 3.6 580 1350*870*1120 G1° 68±2
LFS-50 37 50 6.5 6.0 5.3 700 1500*1000*1300 G11/2° 70±2
LFS-60 45 60 8.2 7.3 6.5 800 1500*1000*1300 G11/2° 70±2
LFS-75 55 75 9.8 8.5 7.3 1200 1850*1300*1550 DN65 72±2
LFS-100 75 100 13.5 11.8 9.5 1500 1850*1300*1550 DN65 72±2
LFS-120 90 120 15.5 13.5 12.1 1850 2350*1650*1800 DN65 75±2
LFS-150 110 150 19.7 17.6 15.2 1900 2600*1650*1800 DN65 75±2
LFS-175 132 175 23.2 21.3 19.5 2600 2600*1650*1800 DN80 78±2
LFS-200 160 200 25.5 22.5 20.1 2800 2800*1898*1695 DN80 82±2
LFS-250 185 250 30.1 27.3 25.2 3500 3100*2150*2000 DN100 82±2
LFS-300 220 300 40 36.8 29.5 4500 3100*2150*2000 DN100 82±2

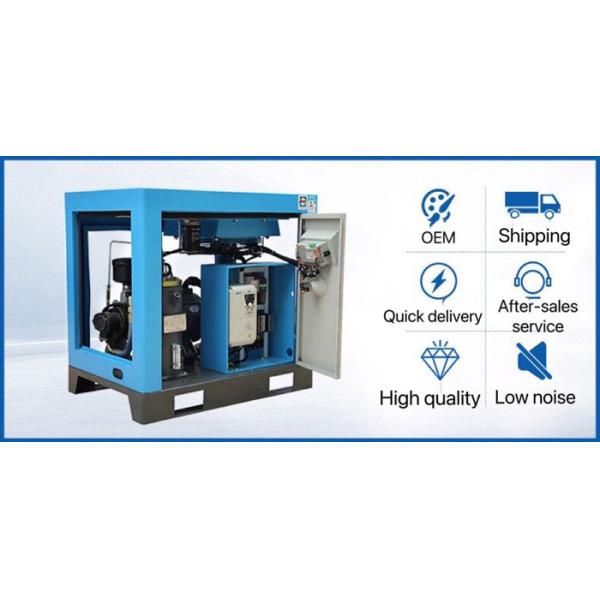

Machine Image:

Rotary 15HP Screw Type Air Compressor Energy Saving Direct Driven

Rotary Air Compressor Application

  1. Pneumatic tools: Rotary air compressors provide the high-pressure air required to power pneumatic tools such as drills, sanders, and impact wrenches.

  2. Manufacturing processes: Rotary air compressors are used in manufacturing processes such as metalworking, food and beverage production, and chemical processing to power equipment and tools.

  3. Automotive repair: Rotary air compressors are used in automotive repair shops to power tools such as impact wrenches, paint sprayers, and air ratchets.

Rotary 15HP Screw Type Air Compressor Energy Saving Direct Driven

Factory Overview:

Rotary 15HP Screw Type Air Compressor Energy Saving Direct Driven
LTC Compressor's rotary air compressor with ditrect driven has many strengths compared with other brands in China. Advanced microcomputer PLC fully automatic programmable, protection device control system. English control system, easy to operate, can work automatically 24 hours without supervision. The remote visual function can be realized through mobile APP. And the real-time operation of air compressor can be seen at a glance even thousands of miles away.

FAQ

1.Why customer choose us?
Shanghai LTC Compressor Co., Ltd specializes in Rotary Screw Air Compressor, integrating R&D, production, sales and service. High-level quality control and years of exporting experience help us win trust and loyalty of our customers around the world. Warmly welcome your inquiries and orders for quality test, more favorable sales conditions will be provided to support you expand local market if long-term partnership can be established.

2.Are you a manufacturer or trading company?
We are a professional manufacturer in China with over 25 years experience in air compressing solutions. We have 2 factories in Shenzhen, and our overseas business department is in Minhang district , Shanghai. OEM&ODM service is accepted.

3.What’s your delivery time?
For standard machines, we can deliver within 3-5 days. For customized machines or urgent orders, please contact our sales in advance.

4.How long is your air compressor warranty?
One year for the whole machine and two years for screw air end, except consumable parts such as air filter, oil filter, oil separator and precise filter elements.

5.How does your factory do regarding quality control?
International leading processing equipment and advanced manufacturing technology ensure LTC screw compressor with high efficiency, low noise, low power consumption, high reliability.

6.How long is the lifespan of your air compressor?
Generally, more than 10 years.

7. What's price term?
FOB, CIF, EXW, all are available, according to your requirements.

We have long-term cooperative shipping agent in sea shipping, much more professional and can help you save shipping cost.

8. What's payment term?
T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.

9.How about your after-sales service?

(1) Installation and commissioning online instructions.
(2) Well-trained engineers available for overseas service.
(3) Worldwide agents and after-sales service available.
