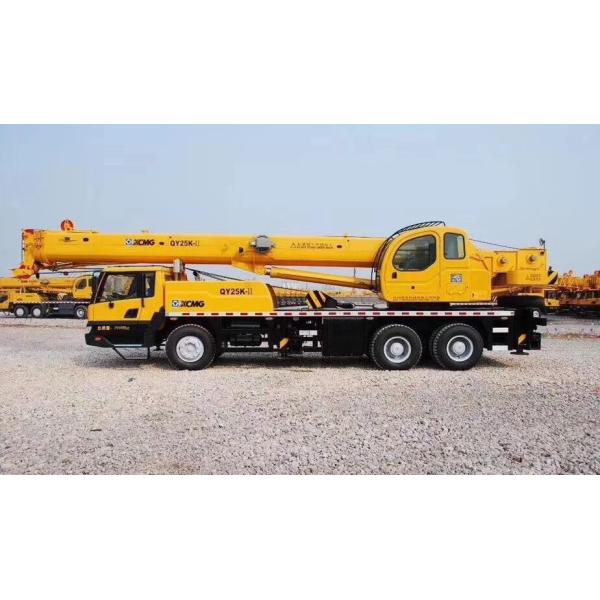

2017 XCMG official QY25K-II 25ton crane mobile crane truck crane
2017 XCMG official QY25K-II 25ton crane mobile crane truck crane
2017 XCMG official QY25K-II 25ton crane mobile crane truck crane
2017 XCMG official QY25K-II 25ton crane mobile crane truck crane
2017 XCMG official QY25K-II 25ton crane mobile crane truck crane
2017 XCMG official QY25K-II 25ton crane mobile crane truck crane
Specifications
Brand Name :
XCMG
Model Number :
QY25k-II
Certification :
CE,ISO
Place of Origin :
JIANGSU CHINA
MOQ :
1unit
Supply Ability :
100units/month
Delivery Time :
25-35 working days
Packaging Details :
special package for export
Description

2017 XCMG official QY25K-II 25ton crane mobile crane truck crane

2017 XCMG official QY25K-II 25ton crane mobile crane truck crane

2017 XCMG official QY25K-II 25ton crane mobile crane truck crane

2017 XCMG official QY25K-II 25ton crane mobile crane truck crane

2017 XCMG official QY25K-II 25ton crane mobile crane truck crane

2017 XCMG official QY25K-II 25ton crane mobile crane truck crane

QY25K5-II 25 ton Truck Crane
1. Specialized boom of octagonal cross section has features of light deadweight, better strength and strong lifting capacity.
2. Advanced built-in boom head, strong structural members and lower sliders with larger area contribute to better stress-bearing capacity and more smooth telescoping movement, and efficiently prevent boom torsion after side loading.
3. Telescoping mechanism is designed reliably. In the telescoping mechanism, both rotation-resistant rope used for thick cable and guide pulley bearing are imported parts and have reliable performance.
4. Excellent welding technology for structural members. Welding robot with advance process used for key welding make reliable quality products.
5. Ferrule-type compression joints are used for pipeline, have features of reliable connection, better tightness and less leakage.

Dimension

Unit

 QY25K-II
Overall length mm 12650
Overall width mm 2500
Overall height mm 3380

Weight

　

　
Total weight in travel kg 29400
Front axle load kg 6200
Rear axle load kg 23200

Power

　

　
Engine model 　 SC8DK280Q3 / WD615.329(domestic III)
Engine rated power kW/(r/min) 206/2200 213/2200
Engine rated torque N.m/(r/min) 1112/1400 1160/1400

Travel

　

　
Max. travel speed km/h 75
Min. turning diameter m 21.5
Min. ground clearance mm 275
Approach angle ° 16
Departure angle ° 13
Max. grade ability % 30
Fuel consumption for 100km L ≈37

Main performance

　

　
Max. rated total lifting capacity t 25
Min. rated working radius mm 3000
Turning radius at turntable tail m 3.065
Max. lifting torque kN.m 1010
Base boom m 10.7
Fully extended boom m 34.19
Fully extended boom+jib m 42.15
Longitudinal outrigger span m 5.14
Lateral outrigger span m 6

Working speed

　

　
Boom luffing time s 75
Boom full extension time s 100
Max. swing speed r/min ≥2.5
Max. speed of main winch (single rope) m/min ≥120
Max. speed of aux. winch (single rope) m/min ≥120
