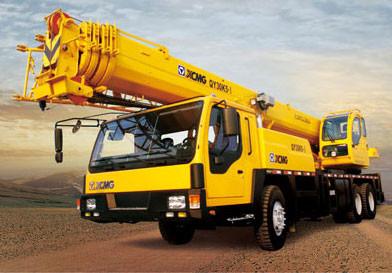

XCMG Official Manufacturer QY30K5-I hydraulic mobile xcmg 30 ton truck crane with Six unique manufacturing technologies
XCMG Official Manufacturer QY30K5-I hydraulic mobile xcmg 30 ton truck crane with Six unique manufacturing technologies
XCMG Official Manufacturer QY30K5-I hydraulic mobile xcmg 30 ton truck crane with Six unique manufacturing technologies
XCMG Official Manufacturer QY30K5-I hydraulic mobile xcmg 30 ton truck crane with Six unique manufacturing technologies
Specifications
Brand Name :
XCMG
Model Number :
QY30K5-I
Certification :
CE,ISO
Place of Origin :
JIANGSU CHINA
MOQ :
1unit
Supply Ability :
100units/month
Delivery Time :
25-35 working days
Packaging Details :
special package for export
Description

XCMG Official Manufacturer QY30K5-I hydraulic mobile xcmg 30 ton truck crane with Six unique manufacturing technologies

XCMG Official Manufacturer QY30K5-I hydraulic mobile xcmg 30 ton truck crane with Six unique manufacturing technologies

XCMG Official Manufacturer QY30K5-I hydraulic mobile xcmg 30 ton truck crane with Six unique manufacturing technologies

XCMG Official Manufacturer QY30K5-I hydraulic mobile xcmg 30 ton truck crane with Six unique manufacturing technologies

XCMG Official Manufacturer QY30K5-I hydraulic mobile xcmg 30 ton truck crane with Six unique manufacturing technologies

XCMG Official Manufacturer QY30K5-I hydraulic mobile xcmg 30 ton truck crane with Six unique manufacturing technologies

• The innovative jib system adopts embedded block, plug-in boom head and octagon jib, which has excellent lifting performance and safe and reliable lifting work.
• The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
• Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
• The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
• Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
• The humanity design makes the cab and control cab more spacious, and easy to operate.
• Six unique manufacturing technologies ensure the high quality.
• Extend the lifting space and scope, greatly improving the lifting capacity of the front part.
Dimension Unit QY30K5-I
Overall length mm 12570
Overall width mm 2500
Overall height mm 3390
Weight 　 　
Total weight in travel kg 32400
Front axle load kg 7000
Rear axle load kg 25400
Power 　 　
Engine model 　 SC8DK280Q3 WD615.329
Engine rated power kW/(r/min) 206/2200 213/2200
Engine rated torque N.m/(r/min) 1112/1400 1160/1400
Travel 　 　
Max. travel speed km/h 80
Min. turning diameter m 22
Min. ground clearance mm 291
Approach angle ° 19
Departure angle ° 13
Max. grade ability % 40
Fuel consumption for 100km L 40
Main performance 　 　
Max. rated total lifting capacity t 30
Min. rated working radius mm 3000
Turning radius at turntable tail m 3.065
Max. lifting torque kN.m 1025
Base boom m 10.6
Fully extended boom m 40.4
Fully extended boom+ jib m 48.7
Longitudinal outrigger span m 5.85
Lateral outrigger span m 6
Working speed 　 　
Boom luffing time s 68
Boom full extension time s 150
Max. swing speed r/min 2.5
Max. speed of main winch (single rope) (no load) m/min 120
Max. speed of aux. winch (single rope) (no load) m/min 120
