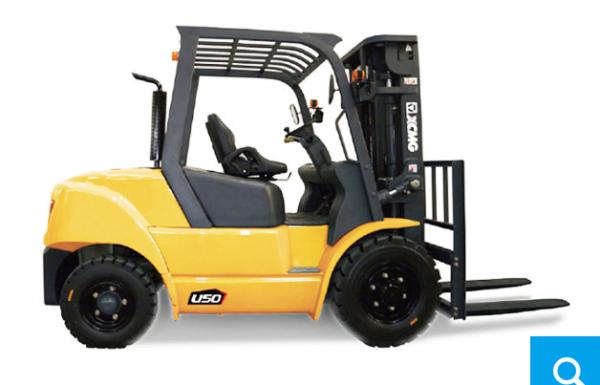

XCMG official manufacturer 4ton diesel forklift truck with Robust and Reliable Diesel Engine
XCMG official manufacturer 4ton diesel forklift truck with Robust and Reliable Diesel Engine
Specifications
Brand Name :
XCMG
Model Number :
FD40T
Certification :
ISO,CE
Place of Origin :
JIANGSU CHINA
MOQ :
1 unit
Supply Ability :
500 units/month
Packaging Details :
special package for export
Loading Capacity :
4000kg
Engine :
XINCHAI，ISUZU，YANMAR
lifting height :
3000-6000mm
Type :
Diesel Forklift
Overall Dimensions :
2813*1225*2235mm
Fork Length: :
1070mm
Fork Width :
125mm
Description

XCMG official manufacturer 4ton diesel forklift truck with Robust and Reliable Diesel EngineXCMG official manufacturer 4ton diesel forklift truck with Robust and Reliable Diesel EngineXCMG official manufacturer 4ton diesel forklift truck with Robust and Reliable Diesel EngineXCMG official manufacturer 4ton diesel forklift truck with Robust and Reliable Diesel EngineXCMG official manufacturer 4ton diesel forklift truck with Robust and Reliable Diesel Engine

• Robust and Reliable Diesel Engine(EUIIIB&EPA Engine for choice)

• Ergonomically design

• Wide-view Mast

• Excellent Cooling System and Heat Releasing System

• Cyclone Air Clean

• Vertical Exhaust

• Dual Front Wheels

• Easy to maintain and repair

• Lower Gravity

• Emergency Stop Switch

• Multiple Option Available for Choice

• Available with a range of high performance industrial engine,big torque at low speed,make the whole machine quiet, with less vibration and efficient. Ergonomically design,such as the Long operator assisted grips / two level access entry / Non-slip rubber floor mat / adjustable seat / adjustable tilt steering column,all these provide a comfortable and safe working condition for various operator.

• High efficiency is also delivered through the performance of the axles,the excellent brake system make sure the forklift operate with safety,the steering axle provide prompt and precise feedback to the driver when steering.

• The wide-view mast provide the operator with a wide visibility,improve the efficiency and guarantee the safety.

• Robust and Reliable Diesel Engine(EUIIIB&EPA Engine for choice)

• Ergonomically design

• Wide-view Mast

• Excellent Cooling System and Heat Releasing System

• Cyclone Air Clean

• Vertical Exhaust

• Dual Front Wheels

• Easy to maintain and repair

• Lower Gravity

• Emergency Stop Switch

• Multiple Option Available for Choice

• Available with a range of high performance industrial engine,big torque at low speed,make the whole machine quiet, with less vibration and efficient. Ergonomically design,such as the Long operator assisted grips / two level access entry / Non-slip rubber floor mat / adjustable seat / adjustable tilt steering column,all these provide a comfortable and safe working condition for various operator.

• High efficiency is also delivered through the performance of the axles,the excellent brake system make sure the forklift operate with safety,the steering axle provide prompt and precise feedback to the driver when steering.

• The wide-view mast provide the operator with a wide visibility,improve the efficiency and guarantee the safety.

Model FD40T-L FD45T-L FD40T-JT FD45T-JT
Power Type Diesel
Rated Load Capacity Q(kg) 4000 4500 4000 4500
Load Centre C(mm) 500
Rated Lift Height H3(mm) 3000
Free Lift Height H2(mm) 84
Fork Size (L×W×T) mm 1070×150×50
Mast Tilt Angle (F/R, α°/β°) deg 6°/12°
Fork Overhang (Wheel Center to Fork Face) X1(mm) 578
Rear Overhang X2(mm) 550 570 550 570
Ground Clearance (Bottom of Mast) H7(mm) 175
Length to Face of Fork (Without Fork) L1(mm) 3091 3091
Overall Width B1(mm) 1485
Mast Lowered Height H1(mm) 2260
Mast Extended Height (With Backrest) H4(mm) 4266
Overhead Guard Height H5(mm) 2240
Travel Speed (No Load) km/h 22
Lifting Speed (Full Load) mm/sec 450 450
Lowering Speed (Full Load) mm/sec 480
Engine Model LR4B3-22 TD2.9L4
Engine Manufacturer YTO DEUTZ
Rated Output / r.p.m. kw 57/2200 55.4/2300
Rated Torque / r.p.m. N·m 285/1300-1500 265/1600
