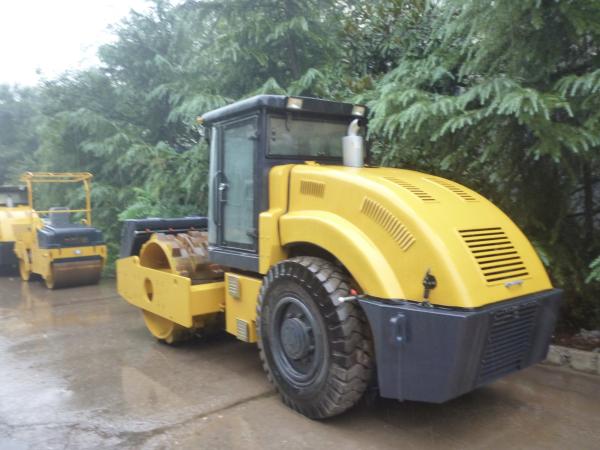

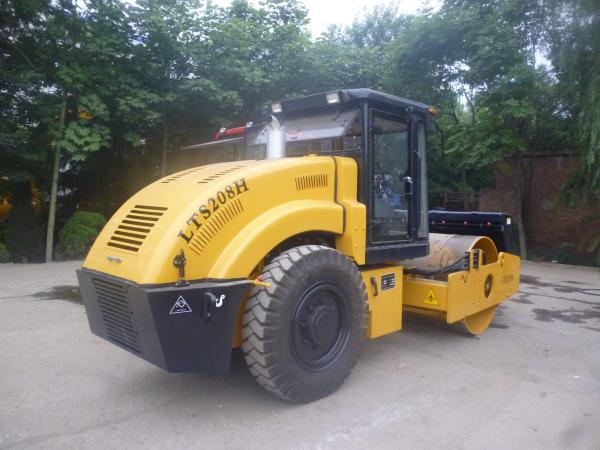

LGSS808 LTXG 8tons single drum single hydraulic drive vibratory road rollers with cummins engine
LGSS808 LTXG 8tons single drum single hydraulic drive vibratory road rollers with cummins engine
LGSS808 LTXG 8tons single drum single hydraulic drive vibratory road rollers with cummins engine
LGSS808 LTXG 8tons single drum single hydraulic drive vibratory road rollers with cummins engine
LGSS808 LTXG 8tons single drum single hydraulic drive vibratory road rollers with cummins engine
LGSS808 LTXG 8tons single drum single hydraulic drive vibratory road rollers with cummins engine
Specifications
Brand Name :
LTXG
Model Number :
LGSS808
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1 unit
Supply Ability :
500 units/month
Delivery Time :
30-35days
Packaging Details :
special package for export
Weight :
8 tons
Vibration Frequency :
29/35Hz
Drum Width :
1700mm
Engine Model :
CUMMINS 6BT5.9-C150-110KW
Drum Diameter :
1400mm
Gradeability :
30%
Travel Speed :
0-10.2km/h
Static Linear Load :
230N/cm
Fuel tank capacity :
220L
Hydraulic oil tank capacity :
160L
Condition :
New
Overall Dimensions :
5610×2280×3050mm
Description

LGSS808 LTXG 8tons single drum single hydraulic drive vibratory road rollers with cummins engine

LGSS808 LTXG 8tons single drum single hydraulic drive vibratory road rollers with cummins engine

LGSS808 Hydraulic single driver vibratory roller is manufactured according to the international advanced technology and by use of imported components from abroad. The machine is super heavy-duty vibratory roller, possesses a great working mass and strong centrifugal force. It is the best compaction equipment of high quality and high effect in the large-scale mechanized construction. This machine is suitable for non-cohesive materials, such as graves, macadam, macadam-aggregate mixtures and sandy soil etc. Also it can effect good compaction in cohesive material, There-fore the machine an ideal equipment for expressway. mining road, embankment, sea port and industrial sites.
Main Features
▲Power System: CUMMINS B-series extra-pressure diesel engine, huge power man coeffciency, complicated for the operating condition above 4000 meters altitude.
▲Full hydraulic and rear wheel drive, changeable frequency changeable amplitude, articulated steering, the advanced two speed-less changes, Break-off oil system safe and reliable for the braking.
▲Streamline outline, circular windshield glass and curvy hood form a unique style.
▲Equipped with padfoot or removal padfoot as option Hydraulic pump and vibrating motor are of the 90 series made by American manufacturer SAUER or German manufacture REXROTH

LGSS808
Operating mass Kg 7800
Static linear load N/cm 235
Vibration amplitude mm 0.4
Vibration frequency Hz 43
Centrifugal force kN 70
Travel speed km/h 0-15
Grade ability % 25
Turning radius mm 5000
Overall dimension mm 5010X1880x2570
Vibration round width mm 1700
Wheel base mm 2750
Ground clearance mm 320
Diesel model kW 75
Diesel power CUMMINS4BT3.9
Rated speed R/min 2400

Our Products will be continuously improved with the progressing of the technique,So please indicate the difference between the listed parameters in the sample sheet and structure features and take material object as the standard.
