LGSD2240 LTXG 240HP Crawler bulldozer
LGSD2240 LTXG 240HP Crawler bulldozer
LGSD2240 LTXG 240HP Crawler bulldozer
LGSD2240 LTXG 240HP Crawler bulldozer
Specifications
Brand Name :
LTXG
Model Number :
LGSD2240
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1 unit
Supply Ability :
100 unit/month
Delivery Time :
20-30 woking days
Packaging Details :
Special package for export
Description

Main features

◆ The machine features reasonable layout, excellent performance and advanced technology.
◆ Higher engine powerreserves efficiency, biggertorque output, lower fuel consumption, while better reliability.
◆ Hydraulicly controlled drive, automatically speed regulating and non-stop gear shifting.
◆ The final drive uses triangleSpline and tiprelief, crowned gear drivetoenhance thebalance andthestabilityoftheloadof transmission Part.
◆ The novel hexahedral cab offers excellent visibility, the powerful ventilation and unparalleled dust-free.

Engine
◆ Adopt Cummins CELECT electronic-Control fuel System.
◆ Cummins CM876 Core II electronic-Control module adopted for stable and precise control.
◆ Updated strong-performance turbocharger with wastegated design
◆ New aluminum integrated piston used to meet performance demands and emission regulations.
◆ Compact configuration and connector design provides excellent power match solution.
◆ Advanced electronic Controls for precise Operation.
◆ Advanced diagnosis and interface technology for good power match and engine service.
Gear Box
Hydraulic controlled gearshift is realized by operating the control valve, and without having to stop the machine,when operated with the torque converter to save operator effort.
The transmission is combined with four planets lines and a rotary lock-up clutch, multiple disc clutch, hydraulic controlled release, forced lubrication, with 3 speeds forward and 3 speeds backward.

Torque Converter

The hydraulic torque converter for LGSD2240 is a newly developed product with the improvement made to the material, process and layout based on introduced Japan KOMATSU technology.

It features simple architecture, easy maintenance, low noise, excellent reliability, step-less speed regulating which ensure perfect match to the machine for an outstanding traction and a stable transmission.

The Final Driving
The final drive uses triangle Spline and tip relief, crowned gear drive for enhanced balance and the stability during power transmission, lower noise, excellent reliability and added life.

key parameter

LGSD2240 LTXG 240HP Crawler bulldozer

Ripper
Type Single shank 3 shank
Maximum dig below ground(mm) 666 555
Maximum lift above ground(mm) 598.3 666
Weight(kg) 2560 2570
ENGINE
Model CUMMINS NT855-C280S10
Type straight vertical, four stroke, water cooling,PT pump injection, Turbocharged
Flywheel power(KW) 162
Rated speed(r/min) 1800
Number of cylinders-bore*stoke(mm) 6-139.7*152.4
Starting method 24V, 11KW,Starting motor
Battery 24V(12V*2)-195AH
Air cleaner Dry horizontal type with pre-cleaner
Minimum fuel consumption ratio(min) 218g/kw.h
Fuel tank 450L
TRANSMISSION SYSTEM
Torque converter 3-element, single-stage, single-phase
Transmission

Planetary gear, multiple-disc clutch, hydraulic actuated

Forced lubrication by gear pump, 3 forward and 3 reverse speeds, electrical hydraulic control for model PY220Y-3
Bevel gear Helical bevel gear, splash lubricated
Steering clutch Wet, multiple disc clutch, spring loaded, hydraulically released
Steering brake Wet, band brake, operated with hydraulic booster and valve inner linkage
Final drive Spur gear, double reduction, splash lubricated
TRACK
Type Sealed single grouser
Track pitch(mm) 216
Track width(mm) 560
Number of track shoes(each side) 38
Length of track on ground(mm) 2730
Ground clearance(mm) 405
Track gauge(mm) 2000
HYDRAULIC SYSTEM OF WORK EQUIPMENT
Working pressure(Mpa) 13.7
Rated flow(L/min) 257
Pump Gear pump
Control valve Manual operated, plunger, servo controlling
Cylinder, bore*rod*stroke(mm) 120*70*1054
TRAVEL SPEED 1st 2nd 3rd
Forward(km/h) 3.6 6.5 11.2
Reverse(km/h) 4.3 7.7 13.2
UNDER CARRIAGE
Sprocket Segmented
Number of track rollers(each side) 6(4 single, 2 double)
Track tension Hydraulic adjusted

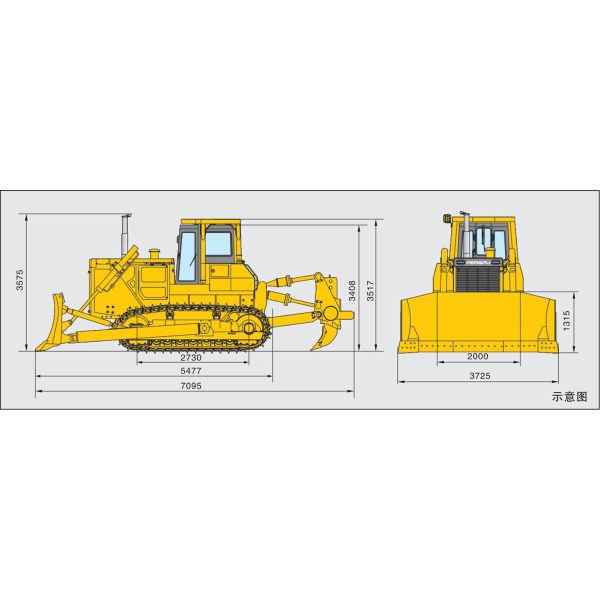

DIMENSION
Overall size(with ripper)(mm) 7095(L)*3725(W)*3517(H)
Operating weight(kg) 26300

LGSD2240 LTXG 240HP Crawler bulldozer

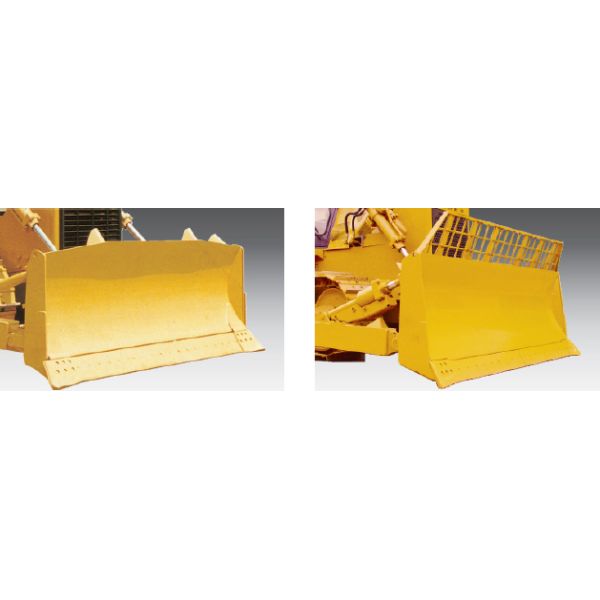

Blade type Straight tilt blade Dozer for garbage
Width * Height (mm) 4365*1230 4365*1760
Max.lift above ground (mm) 1350 1350
Max.drop below ground (mm) 500 500
Pitch adjustment (°) 53.5 53.5
Max.Tilt (mm) 500 500
Blade capacity (m³) 6.6 11.7
