China Hot NY-800 Hydraulic Breakout Machine For Geotechnical Drilling of Minerals
China Hot NY-800 Hydraulic Breakout Machine For Geotechnical Drilling of Minerals
Specifications
Place of Origin :
Chongqing
Certification :
ISO9001-2008
Model Number :
NY-800
Machine Type :
Drilling Equipment
Material :
Carbon Steel
Use :
Ore Mining
MOQ :
1 set
Price :
1-100 USD
Packaging Details :
polywooden package
Delivery Time :
stocked
Payment Terms :
T/T or L/C or others
Supply Ability :
1000 sets/year
Type :
breakout machine
Processing Type :
forging, casting, machining
Description

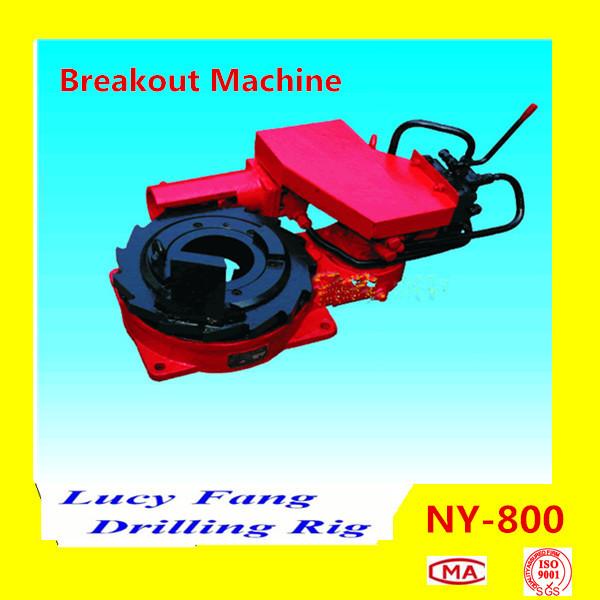

NY-800 Hydraulic Breakout Machine

ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China;

Skype: lucyfang9 , Website: ww.lucydrillingrig.com, email: lucyfang15@yahoo.com;

M: +86-13628481197 TEL.:+86-15923510719,15111813754

Applications:

NY-800 breakout is an auxiliary machine of medium and deep hole core drilling rig. It is mainly used for breakout drill rod of 600-1200 m hole during run-back, to decrease labor strength of worker, improve drilling efficiency and safety of breakout drill rod.

Features:

  1. NY-800 breakout has wide application, it can be equipped with deep drilling machine within 2000 m ?produced by other manufacturers besides XY-2PC, XY-2, XY-2B and XY-1000 drill rigs produced by Chongqing Exploration Machinery Factory;
  2. NY-800 breakout uses percussion of movable disc and cylinder push together to breakout drill rod, has big torque and wide application;
  3. NY-800 breakout uses the hydraulic system of the drill rig as its power, and it is easy and simple to connect with various kind of drill rigs;

SPECIFICATIONS


Max. torque

8022 N · m

(hydraulic flo : 40L/min)
Speed of movable disc(hydraulic flow 32L/min)

98 r/min


Working method


Percussion and cylinder push together to breakout


Max. inner hole dia.

Φ175 mm
￠175 mm


Standard upper, lower fork


For ￠57 and ￠65 rod coupling


Control valve


Changeover valve with delay buffer


Hydraulic motor


JH-160 oil motor


Rated pressure

8Mpa


Rated flow

40L/min


Dimension (L*W*H)

860×480×315 mm


Weight

135㎏
