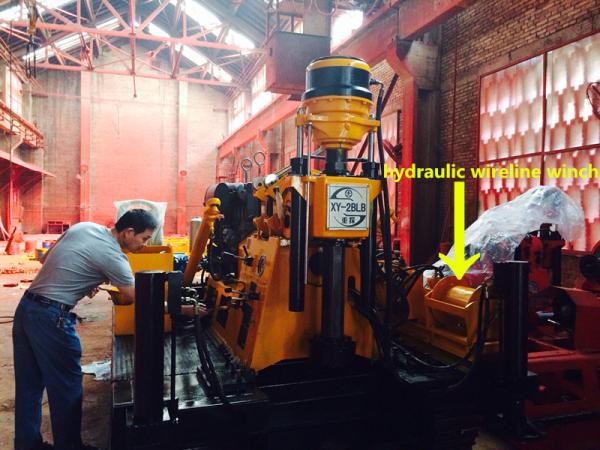

XY-2BLB Crawler Core Drilling Rig with Mast and Hydraulic Wireline Winch

ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China;
Skype: lucyfang9 ; Website: ww.lucydrillingrig.com, email: lucyfang15@yahoo.com;
M: +86-13628481197 TEL.:+86-15923510719,15111813754

Applications:

XY-2BLB Crawler Core Drilling Rig is developed base on XY-2B Core Drilling Rig, integrating drilling rig, crawler, mast, mud pump, hydraulic wireline winch and control panel into the whole. The rig is a kind of drilling rig which is mainly used for drilling shallow-medium hole for minerals,engineering geotechnical, hydro-geological, water well and micro-pile grouting hole drilling, and especially for where mobility and quick set up time are important. It is a type of integration and modular drilling equipment with frequent migration.

Features:

1. Integrated crawler traveling device, mud pump, control panel and hydraulic wireline winch into one whole;
2. Caterpillar walking, base support, mast landing are all driven by itself hydraulic system of drilling rig , it is easy to operate;
3. It is easy to move around and from or to at work site, improve the drilling efficient, and reduce the intensity of labor;
4. Mast landing, folding function for easy walking and transportation.
5. Have more speeds (8-speed), reasonable speed range, and big torque at lower speed, wide applications;
6. Having two reverse speeds, it is easy to handle the accidents in drilling hole.
7. The feed stroke of spindle is 600 mm, help to improve drilling efficiency, reduce blocking and burning of bit, easy to handle drilling accidents.
8. Twin-gear oil pump to supply oil for the hydraulic system of drilling rig, less power consumption, lower temperature of the hydraulic system.
9. Few control levers, reasonable layout, flexible and reliable manipulation.
10. Have normally a closed hydraulic chuck, also equipped with a lower mechanical manual chuck.

MAIN TECHNICAL SPECIFICATIONS

ITEMS

VALUES

Drilling depth

AW rod

530 m

BW rod

420 m

NW rod

320 m

AQ rod

565 m

BQ rod

460 m

NQ rod

100-500 m (if equipped with F4L912 engine)

HQ rod

250-300 m

Φ73 rod

100 m

Φ60 rod

200 m

Φ50 rod

380 m

Φ42 rod

530 m

Drilling hole caliber

300-76 mm

Spindle speed

Forward:

57;99;157;217;270;470;742;1024 rpm

Reverse:

45;212 rpm

Max. spindle torque:

3200 N.m

Max. pull force:

60 kN

Spindle stroke:

600 mm

Max. hoisting force:

30 kN

Inner dia. of spindle:

96 mm

Stroke of retraction cylinder:

304 mm

Distance away from hole

140 mm

Power unit (option):

Electric motor 22 kW; diesel engine 30 kW

Mud pump (option):

BW-150

Max. traction pull force of crawler:

20.3 kN

Crawler walking speed:

1.2 km/h

Track gradeability of crawler:

less 20°

Specific pressure of track ground:

0.06 MPa

Height of mast:

8 m

Hook hoisting load of mast:

29.4 kN

Crane beam max. static load:

58.8 kN

Pulley qty of crown block:

2 pcs

Angle of mast landing:

0°～ 90°

Overall dimension L*W*H

When transportation

4320*2104*2995 mm

When drilling

3816*2104*8536 mm

Whole weight:

About 5800 kg

Specifications of hydraulic wire-line winch

layer of wire line

unit

Layer 1

layer 2

Layer 10

pulling force of single line

kgf

915

870

630

Linear speed(40L/min)

m/min

56

59

80

Capacity of drum

m

40

84

505

displacement of oil motor

ml/r

80(BM5-80)

Differential pressure of lifting

MPa

16

total displacement

ml/r

400

hydraulic system flow

L/min

40

Control pressure for free falling

MPa

5～9

Dia. Of wire line (1870 grade)

mm

5

static braking torque

N.m

400
