Specifications
Place of Origin :
ChongQing
Certification :
ISO-9001-2008
Model Number :
MGY-100BW
MOQ :
one set
Price :
6000USD
Packaging Details :
nude
Delivery Time :
30 Days
Payment Terms :
T/T, L/C or ohers
Supply Ability :
1000 sets per year
Description

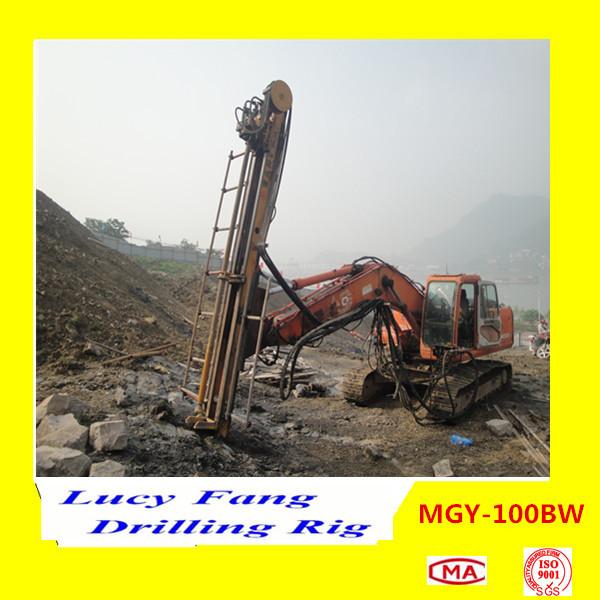

MGY-100BW Excavator Mounted Drilling Rig

ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China;
Skype: lucyfang9 ; Website: www.lucydrillingrig.com, email: lucyfang16@yahoo.com;
M: +86-13628481197 TEL.:+86-15923510719,15111813754 FAX:0086-23-65311383

Ⅰ. Application:

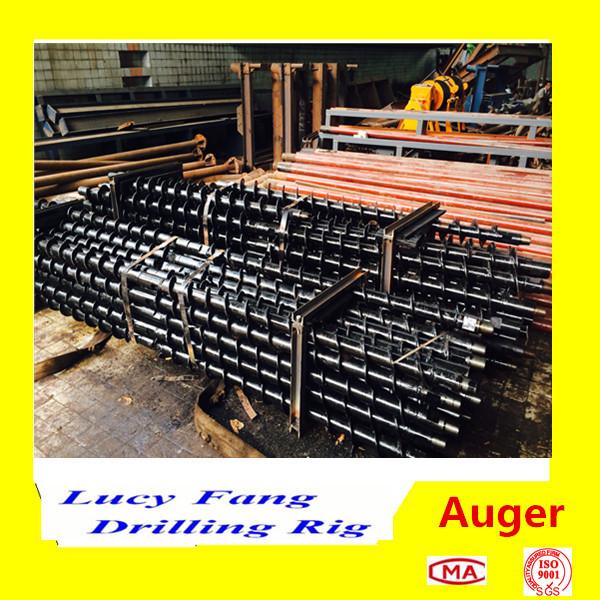

MGY-100BW full hydraulic drilling rig is developed based on DH220 excavator, specially designed to adapt to high slope, deep foundation pit construction engineering. The drilling method is mainly positive, Reverse Circulation DTH hammer drilling, and earth auger drilling as well, but also can be applied to self-drilling anchor bolt, anchor cable, deep foundation pit and tunnel pipe shed construction.

Ⅱ.Features:
1.remove the excavator’s short arm, the mast of the rig is mounted on the excavator longer arm. Working oil circuit of the excavator is connected with the drilling rig through the original excavator crusher’s oil way, without any modification on the excavator, whicn can meet the needs of the drilling rigs. To achieve the multi-purpose of one machine.

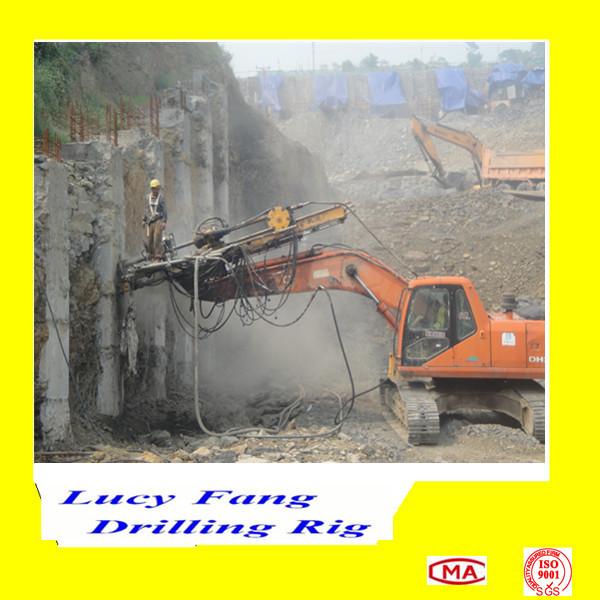

2. construction of a wide range, the construction height up to a maximum of 7m or so, no need to build scaffold, can drill at certain height.

3 there is a operation platform on the drill mast, it is easy for an operator to control the drilling rig and put on drill rod in close distance.

4 drilling rig with hydraulic breakout device, reduce labor intensity

.

Ⅲ. Technical specifications:

Power

Form excavator.

drilling hole diameter

Φ110mm—Φ350mm

drilling depth

150m-40m

the max.drill rod length

Φ89x4000

hydraulic system pressure

safety pressure 25Mpa；rotation pressure 20MPa；feed pressure 14Mpa

Torque(diesel engine of excavator 1200rpm)

Option 1 6350N.m(50r/min)； 3250N.m(100 r/ min)

Option 2 3250N.m(100r/min)； 1650N.m(200 r/ min)

Inner diameter of chuck

Φ110 mm

pulling/pushing speed

0—0.26m/s

pulling/pushing force

85/60KN

Feed stroke

4200mm or 4200 mm + suspension 3000 mm =7200mm

Drilling angle

0-180º

compensation length of auxiliary mast

1200mm

Max. Horizontal height of drilling

About 7000-8000mm
