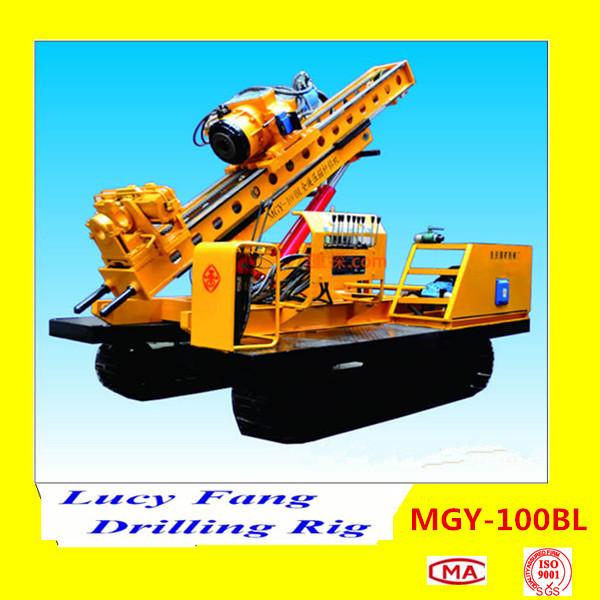

Multi-function MGY-100BL Crawler Mounted Hydraulic Drilling Rig

ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China;

Skype: lucyfang9 , Website: www.lucydrillingrig.com, email: lucyfang15@yahoo.com

M: +86-13628481197 TEL.:+86-23-65311478 Fax.:+86-23-65311383

One . Applications:

MGY-100BL Hydraulic anchor drilling rig is new generation of hight-efficient hydraulic anchor and micro-pile drilling rig developed based on our MGY-100A and MGY-100B drilling rig which are split-type of drilling rig, can be widely used in the field of municipal construction deep excavation, slope stable and cable construction, pipe roof construction, jet grouting hole and micro-pile hole drilling , water well drilling and so on.

Two. Features

1. High construction efficiency. As the rig uses a hydraulic chuck with large inner hole, a fixture 6m drill rod in one time, to reduce the numbers of adding and screw-off drill rod and improve the effective working time.
2. As a result of crawler chassis drive, and the rig mast down or up of position adjustment of 400mm. Hole position adjustment time is greatly reduced.
3 The rig has a holder, shackle device. Through cooperation with the operation of the power head chuck, to reduce the operator's labor intensity.
4 The rig adapt to a wide processes. As the rig has a hydraulic chuck with inner hole diameter of Φ110 mm . No need to make any alteration of top-drive head, you can adapt a single tube, double tube, three tube to make jet-grouting, reverse circulation drilling and Φ108 pipe-roof construction.

Main Technical Specifications

1

Theory hole diameter

Φ110 ～ Φ400 mm

2

theory drilling depth

150 ～ 40 m

3

hole angle range

-20 °～ 90 °

4

drill rod

Φ89 ,Φ73,Φ89

hexagonal drill rod:Φ89x79；Φ70x63

5

Max.torque of top-drive head

6500 Nm

6

rotation speed of top-drive head

Speed I:35,70.r/min; Speed Ⅱ :70,140(r/min)

7

feed/lifting speed

0-0.5 m/s

9

pulling/pushing force

80 / 57 kN

10

Max. feed stroke

1900mm+ rear suspension 3200mm+1100mm=6200 mm

11

height of rotation center

Max.2150mm,Min.1750mm,height differential 400 mm

12

gripping and screw-off device

inner dia.of slipperΦ120 mm clipping force 240KN,screw-off torque18KNm.

13

power unit

electric motor/ diesel engine: 30kw

14

climbing angle

30 º

15

crawling speed

1.95 Km/h

16

whole weight

4500 kg

17

Overall dimension(L*W*H)

3800 x 2300 x 2000 mm
