Specifications
Place of Origin :
Chongqing
Certification :
ISO9001-2008
Model Number :
XY-2B
MOQ :
1 set
Price :
1-12000USD/set
Packaging Details :
polywooden box
Delivery Time :
stocked
Payment Terms :
T/T or L/C
Supply Ability :
1000 sets/year
Machine Type :
Drilling Equipment
Material :
Carbon Steel
Type :
skid mounted spindle type
Processing Type :
forging, casting, welding, assembly
Use :
geotechnical drilling for buildings
Description

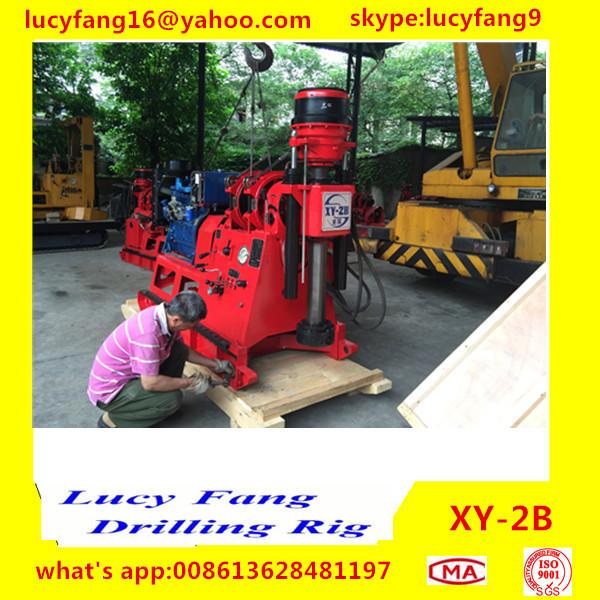

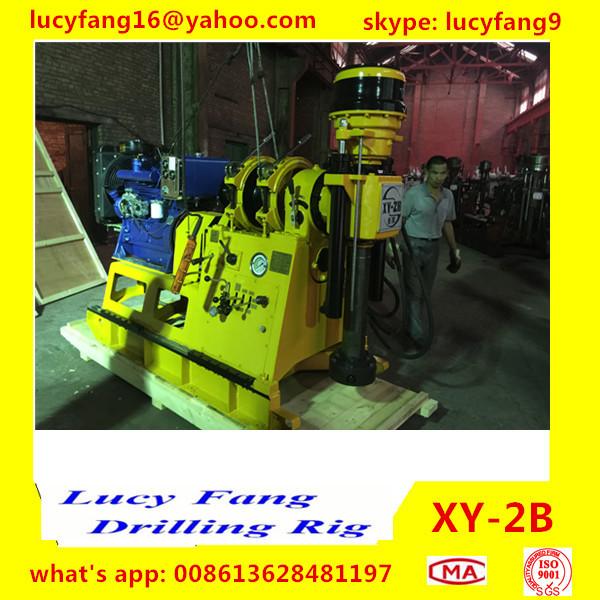

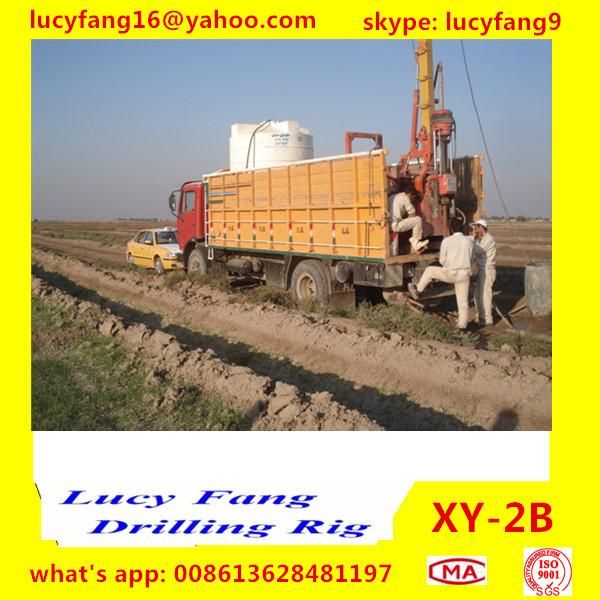

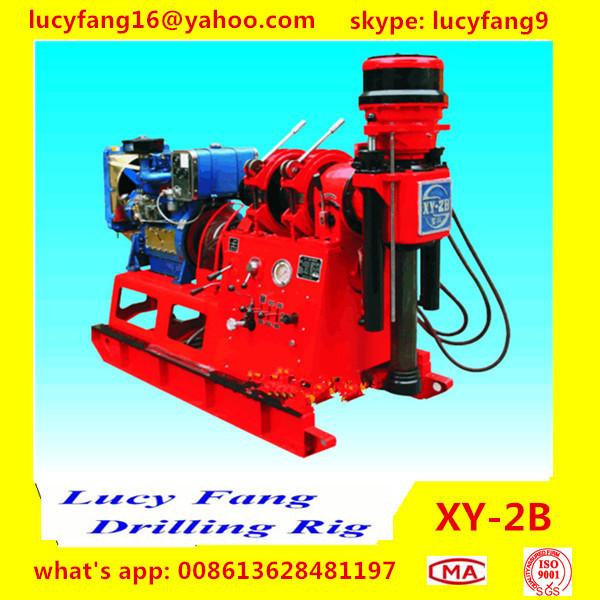

XY-2B Portable Core Drilling Rig

ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China;

Contact person: Lucy Fang; Skype: lucyfang9 ; website: www.lucydrillingrig.com ;

email: lucyfang15@yahoo.com Mobile: +86-13628481197 TEL.:+86-15923510719

Applications:

XY-2B drill rig derived from XY-2 drill rig, it not only keeps all performances of XY-2 drill, but also adds spindle inner hole diameter to 96mm. It is mainly used in shallow and medium deep diamond and tungsten carbide core drilling, can also be used in geotechnical, hydro-geological, water well and mini-pile grouting hole drilling.It is especially suitable for constructions of hydroelectric power station, highway, railroad and harbor etc. In common with XY-2 drill in all design but hydraulic chuck and rotary head modified.

Technical Specifications


Drilling capacity (m)

AW rod

530 m

BW rod

420 m

NW rod

320 m

AQ rod

565 m

BQ rod

460 m

NQ rod

350 m

HQ rod

250-300 m

Φ73 rod

100 m

Φ60 rod

200 m

Φ50 rod

380 m

Φ42 rod

530 m


Spindle speed(r/min)

Forward

57;99;157;217;270;470;742;1024

Reverse

45;212


Max torque(Nm)

3200


Angle range

0-90°


Spindle max pulling/pushing force(KN)

60/45


Spindle stroke (mm)

560


Hoist max lift capacity with single rope (KN)

30


Spindle inner dia. (mm)

96


Oil pump

CBK1020/8


Power unit


Electric motor

Y180L-4,22Kw


Diesel engine

395K2,19.85Kw


Overall dimension(L*W*H) mm

2220×900×1880


Drill weight(excluding power)(kg)

1200
