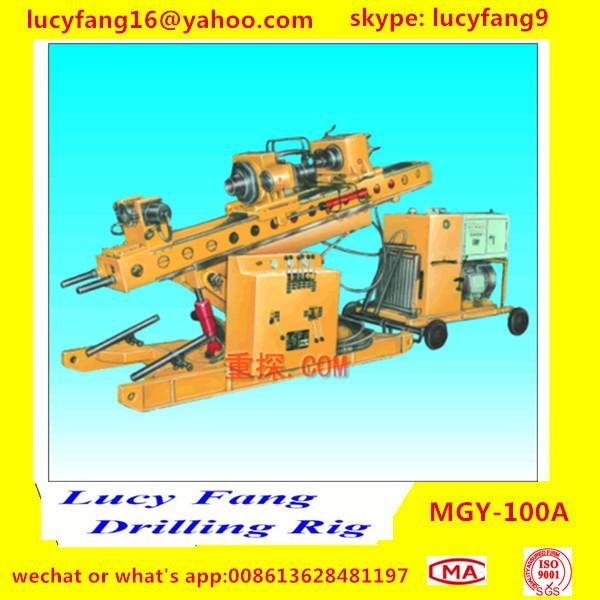

Hot Sale MGY-100A anchor and micropile hole drilling rig with double head
Hot Sale MGY-100A anchor and micropile hole drilling rig with double head
Specifications
Model Number :
MGY-100A
Certification :
iso9001-2000
Place of Origin :
china
MOQ :
1
Price :
1-10000 usd
Packaging Details :
wooden box
Description


MGY-100A ANCHORING DRILLING MACHINEADD

Add.: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China, skype: lucyfang9; website: www.lucydrillingrig.com, email: lucyfang15@yahoo.com

M.: +86-13628481197 TEL.:+86-23-65311578 Fax.:+86-23-65311393

1. APPLICATIONS:

MGY-100A anchoring chilling machine is an important project of "the Ninth five" of the state. Mainly used in drilling soil and rock anchoring hole for prevention and treatment of geology disaster screen injection for tunnel, also suitable for supporting in deep foundation pit of hydroelectric power-station, communication, energy capital construction, mini-grouting pile hole, hydrography well and high pressure jet-grouting.

2. FEATURES:

◆ Hydraulic top head, hydraulic power-station separated from drill body; lighten drilling rig body, and with diesel or motor, meeting the needs of various users.
◆ It is the first time that the rig user coring down-hole hammer, fully forward-circulation and partial reverse-circulation drilling methods domestically.
◆ Double top-drive head A. B. a variety combination can be made, to meet many drilling methods.
◆ Large powered, top-drive head has big torque and pull force, wide rotary speed range.
◆ Holder and unscrew device, working efficiently, labor saving.
◆ 2-tier guiding rail, easy to find hole position.


Technical Specifications


Hole dia(mm)		 Φ150-Φ250
Drilling depth(m)		 100-60

Hydraulic power pack type
Variable(Electric motor)

Power model		 Y200L2-2 CC490Q

Power and ratings		 37Kw/2950r/min 36Kw/2800r/min

Hydraulic system pressure(Mpa)		 20

A-top drill head speeds(r/min)
Ⅰseries		 0-100 0-95

Ⅱ series		 0-30 0-29

A-top drill head torque(Nm)
Ⅰseries		 1600

Ⅱ series		 5000

B-top drill head speed(r/min)		 0 10

B-top drill head torque(Nm)		 6400

lift/feed speeds (m/s)		 0-0.16/0-0.21

Max pull force/Max push force(N)		 80000/57000

Max feed stroke (mm)		 2000

Drilling angle(°)
Elevation20°Depression angle100°

mast Raised height horizontally(mm)		 300

Drill body weight (kg)
1800(approximately)

Powerpack weight(kg)
700(approximately)

Mount type
Plate mounted, drill body separated from power

MGY-100A
