Specifications
Model Number :
CST-150T，200T,300T
Certification :
ISO9001-2000
Place of Origin :
China
MOQ :
1
Price :
US+100+set
Payment Terms :
T/T
Supply Ability :
500 a quarter
Delivery Time :
one month
Packaging Details :
Nude packing
Description

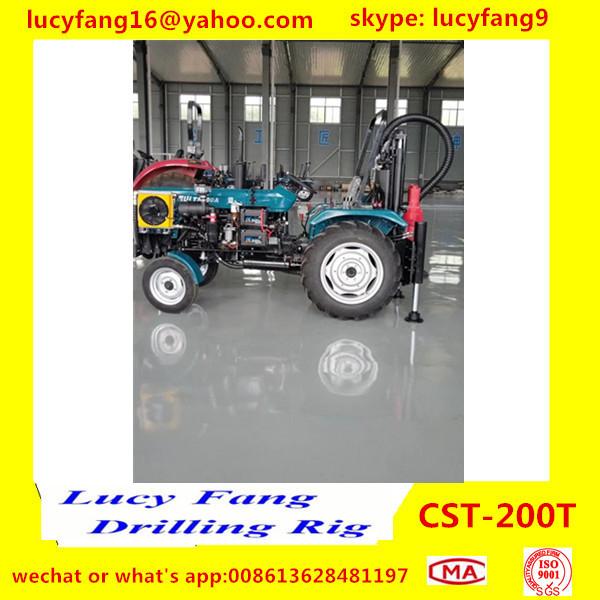

Tractor Mounted Water Well Drilling Rig

Technical Specifications

model CST-150T CST-200T CST-300T
Power 22.1KW 37KW 44.2KW
Drilling Depth 150 m 200 m 300 m
Drilling hole diameter 90-235 mm 90-235 mm 130-325 mm
Working pressure 0.7-2.5MPa 0.7-2.5MPa 1.05-3.0MPa
Carriage stroke 1800/2000 1800/2000 mm 2400/3400 mm
Max. torque 3500 N.m 4500 N.m 6500N.m
Boost speed 20m/min 20m/min 20m/min
Rotation speed 60-80rpm 80/160 rpm 80/160 rpm
Drilling pipe length 1500 mm 1500 mm 2000/3000 mm
Static height 1950 mm 2150 mm 3300 mm
Adapt to rock hardness F=6-20 F=6-20 F=6-20
Air consumption 5-30m³/h 5-30m³/h 5-35m³/h
Min.ground clearance 400 mm 400 mm 400 mm
Lifting force 39200N 58800N 88200N
Climbing angle 30° 30° 30°
Drilling efficiency 10-35m/h 10-35m/h 15-35m/h
Drilling pipe diameter 76 mm 76/89 mm 76/89 mm
Total weight 2300(including tractor) 2700(including tractor) 6200(including tractor)
Overall dimension 3300*1350*1950 mm 3350*1450*2100mm 3900*1850*3300 mm
Fit DTH hammer 4/5/6 inches 4/5/6 inches 5/6/8 inches
Recommended air compressor 18m³/1.7 MPa 20m³/2.0 MPa 900-1200
