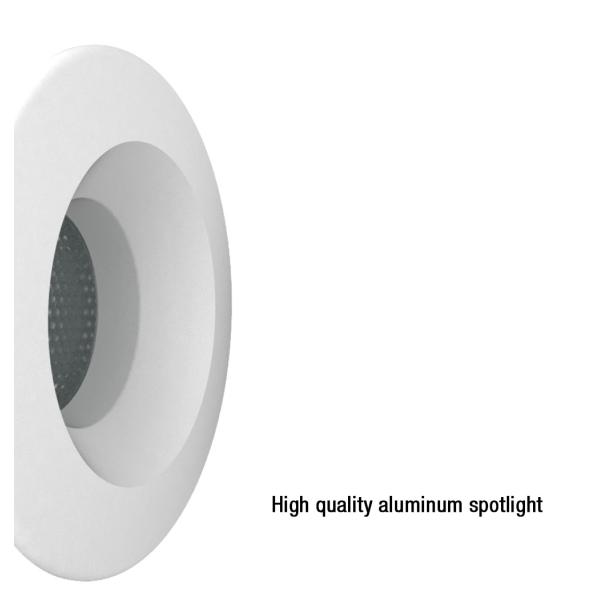

45 Degree 80Ra Recessed Ceiling Spotlights LED 1.5W Colour Changing
45 Degree 80Ra Recessed Ceiling Spotlights LED 1.5W Colour Changing
45 Degree 80Ra Recessed Ceiling Spotlights LED 1.5W Colour Changing
45 Degree 80Ra Recessed Ceiling Spotlights LED 1.5W Colour Changing
Specifications
Brand Name :
Luminans
Model Number :
JP-9505
Certification :
CE, EMC, LVD, ROHS, NEMKO
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Paypal
Supply Ability :
100000pcs per month
Delivery Time :
30days
Packaging Details :
100pcs/carton
Application :
Window, Kitchen, Cabinet
Luminous flux :
80lm@2700K, 100lm/3000K
CRI :
80Ra
Lifetime :
L50/B10>50,000h
Beam angle :
18°, 45°
Working lifetime(hour) :
-20C - 50C
Description

LED Mini Spotlight 1.5W 220V-240V Dimmable Anti Glare Focus Lampu Spot Light

JP-9505 data sheet.pdf

Light Technic:

Modle name: Core

Power: 1W

Dimensions:

Height: 26mm

Diameter: 30mm

Cut-out: 25mm

Ceiling void depth: 24mm

Luminous flux:

80lm @2700K

100lm @3000K

(You can only choose one CCT mode)

Input Voltage: 3Vac

Colour rendering (CRI): 80Ra

Lifetime:L50/B10>50,000h

Beam angle: 18°or 45°

( You need choose the Beam angle you needed)

Luminaire class:Class II

Ingress protection:Luminaire IP44, driver IP20 (suitable for bathroom application)

Application:

Furniture lighting, office lighting, merchandise lighting, display lighting,

jewelry counter lighting, artwork lighting, interior light, Commercial lighting etc.

Specifications:

LED Light source COB
Lamp power (W) 1
CRI (Ra>) 80
Working lifetime 50000
Certificate CE, EMC, LVD, ROHS, NEMKO
Brand name Luminans
Application Indoor lighting
Color White
Beam angle: 18 degrees and 45 degrees
Warranty 5
Lamp luminous 80lm/100lm
Color temperature 2700K/3000K
Lamp body material Aluminum
Model number JP-9505
MacAdam factor SDCM<3
Material Aluminum
Size Dia 30mm
Tilt Fixed
Input Voltage 220-240
Lamp efficacy 53lm/w
Working temp. -20C - 50C
IP Rating IP20
Item Type LED spotlight
Product size 30x26mm
Cutout 25mm
Packing details: 100pcs/ctn
Delivery time

25-35 days

45 Degree 80Ra Recessed Ceiling Spotlights LED 1.5W Colour Changing45 Degree 80Ra Recessed Ceiling Spotlights LED 1.5W Colour Changing
45 Degree 80Ra Recessed Ceiling Spotlights LED 1.5W Colour Changing45 Degree 80Ra Recessed Ceiling Spotlights LED 1.5W Colour Changing

Advantages:

1. Working Temp - 25 centigrade - +50 centigrade

2. LED Mini Spotlight - Spotlight has low build height

3. Anti-Glare - UGR<19, No harsh to human eyes secure your life.
4. Serial Connection - Can work up to 4 spotlights with our triac dimmable driver.
5. Fast connection - Easy-connect design for fast to install
6. Good Heat Dissipation - Aesthetic desigh with high quality aluminium and high precision, low tolerance on each part.
7. Spot Or Flood - The width of the object or the distance between the luminaires, we can provide 18 degrees and 45 degrees for option.
8. Dimmable - Compatible with most mainstream European trailing/leading edge dimmers. Min dim level < 10%

FAQ:

1.WHAT IS YOUR PRODUCTION CAPACITY?
100,000pcs per month

2.WHAT IS YOUR MAIN PRODUCT LINE IS MADE?
We mainly produce led lights and lighting fixtures.Focus on commercial lighting.(led downlight, led track light etc.)

3.CAN YOU PROVIDE OEM OR ODM SERVICE?

We have R&D team both in Europe and China which have experience in lighting field more than 10 years. All of our designers are ready for real- izing your ideas from sketch to finished one. And weensure your details would be confidential in your market.

4.WHAT IS THE LEAD TIME FOR MASS PRODUCTION?

Our standard lead time is 30 days after down payment.

5.WHATIS THE TERMS OF DELIVERY?

We accept EXW, FOB, CIF, DAP etc.You could choose one of the most convenient and cost effective way for you.

6.WHAT IS THE TERMS OF PAYMENT?

We accept T/T, L/C at sight-180 days, OA/DP 30-180 days.
