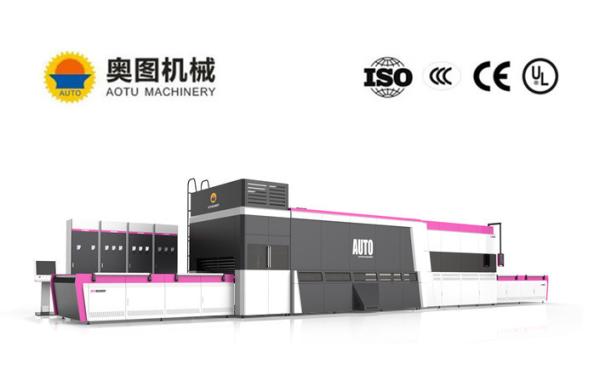

AOTU Machinery Factory direct Forced Convection type Bent Glass Hardening Furnace
AOTU Machinery Factory direct Forced Convection type Bent Glass Hardening Furnace
Specifications
Brand Name :
AUTO
Model Number :
AT-TE2210
Certification :
CE
Place of Origin :
HENAN
MOQ :
1 set
Price :
USD 50000-200000USD/SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 sets/year
Delivery Time :
60-90 working days
Packaging Details :
Export safety packing
Machine Type :
Glass Tempering Furnace
Condition: :
New
Production Capacity: :
20-21 Loads/h
Max glass size: :
2200*1000mm
Glass thickness: :
4-8mm
Application: :
Radiation/ Air force convection type furnace
Tempering type: :
Bent
Product Name: :
Bent Glass Hardening Furnace
Description

AOTU Machinery Factory direct

Forced Convection type Bent Glass Hardening Furnace




FURNACE MODEL NO. AT-TE2210
Supply scope:
1. Loading table 2. Bend Quenching section 3. Heating Section 4. Unloading table

5. Control System 6. Cooling System 7.Spare parts


Glass size:

Bent tempering Glass size:
Max glass size : 2200mm(straight length)×1000mm(arc length)
Min glass size : 400×(400
Min radius: R≥650(4,5,6mm);R≥1000(8,10mm);R≥1500(12mm)
Bent tempering glass thickness range: 4mm~8mm


Suitable glass sorts:
Low-e glass (e value 0.15-0.02)
Clear float glass
Coated glasses
Patterned glass
Tinted glass



Main Parameters

Type Max.Glass Size(mm) Min Glass Size(mm) Glass Thickness(mm) Min radius(mm) Productivity(L/H) Installed Capacity
AT-TE1210 1200*(1000 400*(400 4-8 280 31-33 400
AT-TE1510 1500*(1000 400*(400 4-8 280 31-33 500
AT-TE1810 1800*(1000 400*(400 4-8 280 31-33 500
AT-TE2010 2000*(1000 400*(400 4-8 280 31-33 630
AT-TE2210 2200*(1000 400*(400 4-8 280 31-33 630
