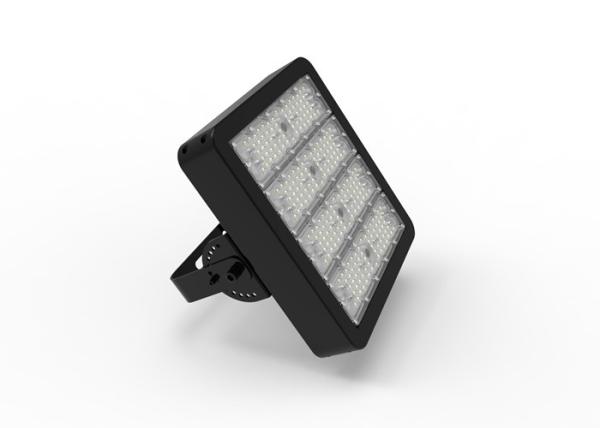

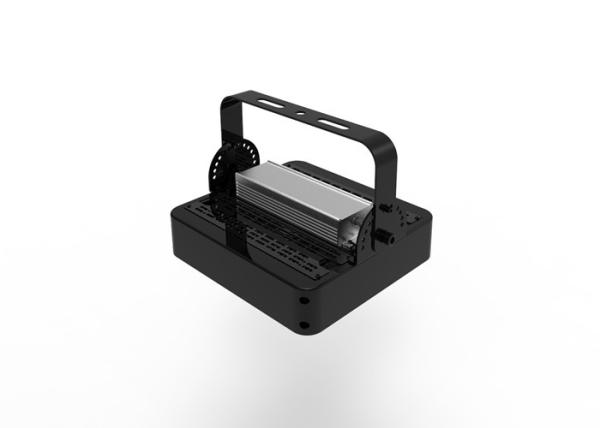

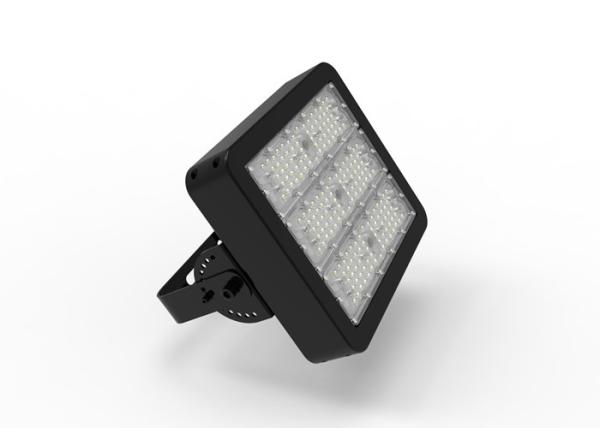

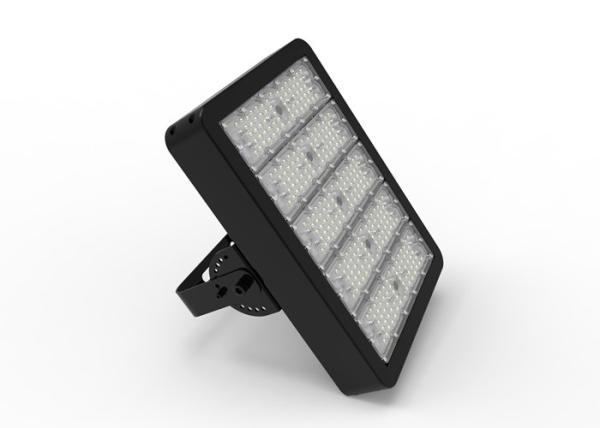

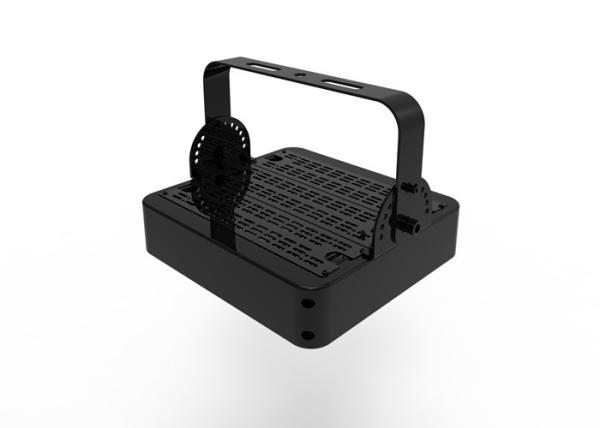

Module LED Flood Light , 100W 200W 300W SMD Waterproof IP65 Security Lighting
Advantage:
- Adopt the modern aesthetic streamline design, compact in structure and nice in appearance.
- Reliable aluminum alloy composition, increasing the cooling area at utmost, reducing the light weight a lot.
- Adopt high-quality-high-efficiency constant current driver, to ensure the products' stability, also to reduce the power consumption greatly.
- Adopted SMD LED light source, stable in light color, stable in light color, and real, Non-glare, more suitable for eyes.
Led Floodlight Features:
1. Housing material: aluminum alloy
2. Voltage: AC85-265V
3. Power: 50w 100w 150w 200w 300w 400w
5. LED Brand: Bridgelux 3030
6. Minimum bulb lifespan: 50,000 hours
7. Temperature Color:warm white 3000-3500k, white 4000-4500K, Cold white 6000-6500K.
PARAMATER :
Input Voltage | AC 100-277V | |
Frequency | 50Hz~60Hz | |
Power factor | >0.90 | |
THD | <15% | |
System power Consumption | 200W | |
Lamp luminous efficiency | 140 Lm /W | |
Led Initial luminous Flux | 28 000lm | |
Color Temperature | WW 3000-3500K NW 4000-4500K CW 6000-6500K | |
Color Rendering Index | Ra>70 | |
LED Junction Temperature | ≤120℃ | |
Working Temperature | -40℃ ~ 55℃ | |
Storage Temperature | -45℃ ~ +65℃ | |
IP Grade | IP65 | |
Wire Connecting (The color of the lamp shell) | Brown | L (live line) |
Blue | N (neutral line) | |
Yellow/Green | G (ground line) | |
The color of the lamp shell | Black |
ATTENTIONS:
1. The light’s waterproof grade is IP65, able to withstand rains, but it can’t work under water.
2. The light’s operating at working temperature between -20℃ and 45℃.
3. Make sure the products are out of reach from children,
4. Please don’t install in flammable ,explosive or corrosive circumstances,
5. Cut off power supply before and in installation process. If the product is damaged due to mal-operation, it will invalid the warranty.
Advantage:
1. Imported chip, high brightness, low power consumption, low heat.
2. These lamp has a beautiful appearance, easy to install.
3. The highly efficient floodlights sees the light in different directions, so that a large area can be illuminated.
4. Material: high-pressure cast Stainless steel molding shell and about 5mm tempered safety PC
5. Low consumption, high brightness
6. Very low heat generating, besides saving light power
7. No radiation, safe, stable and reliable
8. It provides even and bright illumination across a wide area
9. Protection grade up to IP65,Completely prevent dust entering, the low pressure water spray has no influence
10.SMD LED fluorescent light with high brightness SMD LED AS light sourcelamp beads, green, no flicker,
long life,high color rendering index, colortemperature optional wide range.
DETAILS :
Made of high quality material, high power, waterproof and super bright.
Perfect light for workshop, barn, super market, warehouse, stadium, etc.
Suitable For:
Stadiums, buildings, billboards, gardens, squares,landscape , stage , bridge, building , green landscape ,hotel, cultural facilities , bars, discos and other entertainment outdoor place
