Standard Design Cabin and landing door for residential building Passenger Elevator

Our Passenger Lift adopts permanent magnet synchronous motor gearless drive with conversion efficiency reaching 100%.

Wellift standard cabin is of simple and fashionable design, which is harmonious with various building styles.

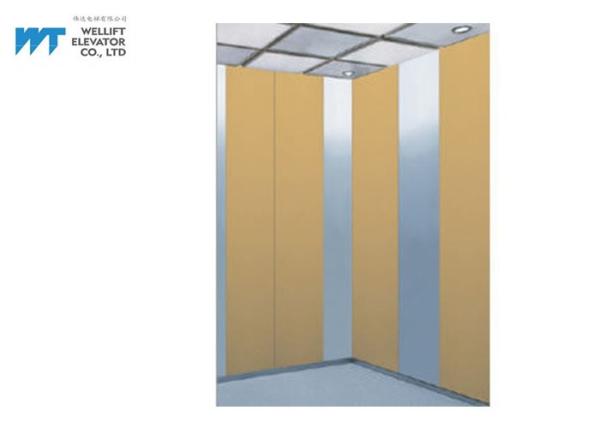

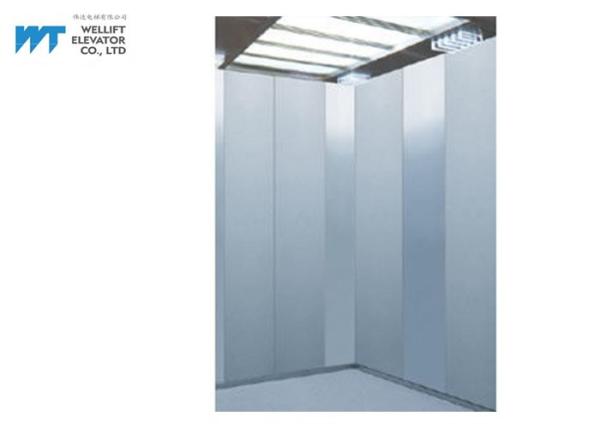

Cabin No.: C-S01 & C-S02 & C-S03& C-S04

Ceiling is optional in standard styles.

Cabin Walls: Materials are painted steel, stainless steel, mirror steel for choice.

Cabin Floor: High-quality plastic floor, or reserve space to lay down marble according to client's favor

Landing door: Materials are painted steel, stainless steel, mirror steel for choice.

Landing door frame: Narrow door frame is standard. Three types of landing door frame are available to suit different building designs.

Standard Specification of V8 Passenger Elevator:

Control System

Wellift passenger elevator adopts the globally recommended VVVF Integrated Control System.

WELLIFT integrated drive controller is the new generation of state-of-the-art elevator-specific control and drive device. With full consideration of the safety & reliability of elevator; inherent characteristic of elevator operation and specific feature of potential energy load for elevator, this series elevator integrated drive controller adopt advanced technology of frequency control of motor speed and intelligent elevator control as well as the integration of control & drive of elevator to make the further improvement of the product performance, easy-to-use property and cost efficiency.

Model No.: Integrated drive controller

Rated Capacity: 4.7 KVA - 50 KVA

Rated output current: 6.2A – 65A

Matching motor: 2.2KW – 30KW

Elevator Traction Machines

Wellift passenger elevator adopts permanent magnet synchronous motor gearless drive with conversion efficiency reaching 100%, applies high permanent magnet materials, realizes miniaturization and high efficiency of the system free of gear oil and maintenance and electromagnetism interference, low noise.

Model No.: V8 PM Gearless traction machine

Traction ratio: 2:1

Loading Capacity: 400kg - 1600kg

Speed Range: 0.5m/s - 4.0m/s

Sheave groove No.: 4 / 5 / 6 / 7

Elevator Door System

Applied with VVVF control technology, running curve of door operator can be adjusted discretionarily, running safely and comfortably, low noise and credibility quality, easy to be adjusted and installed.

Opening Type: Center Opening and Side Opening

Opening width: 650mm, 700mm, 750mm, 800mm, 850mm, 900mm,

950mm, 1000mm, 1050mm, 1100mm, 1150mm,1200mm

Elevator Safety Components

Speed governor, safety gear, oil buffer, guide shoe and rope brake ,all safety components parts are carefully selected from top-grade professional factories, fully comply with GB7588-2003 standard ( equivalent to the EN81-1: 1998 standard), featuring professional product design, high quality, passing national type testing certification.

No matter on design, manufacture, spare parts, technique or other sides, industrial standard is strictly followed, the same as other leading brands, even exceeding them on some details. All main parts are carefully selected from top-grade professional factories guaranteed by ISO9001 Quality Control System; the performance of complete machine is unquestionably perfect.

Please feel free to contact us if you have any need for our products. Also you can visit our company website www.wellift.com to download product catalogues.
