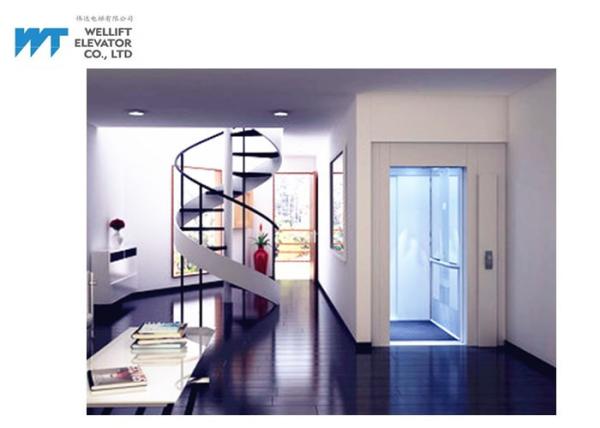

Safe running villa elevator with UPS power-failure emergency leveling

UPS power-failure emergency leveling is an optional function for villa elevator.

When external power grid loses power:

1. If the villa elevator is not in the leveling position, the chargeable battery supplies the villa elevator power to control the elevator and travel towards light-load direction till the leveling position at inspection speed and opens the door.

2. If the villa elevator is in leveling position UPS system will control the elevator and open the villa elevator door, passengers in the elevator can leave quickly and safely.

Standard specification of Residential Home Elevators and villa elevator

Product Features

• Machine roomless design saves construction cost
• Specially designed car sling with 2:1 roping
• VVV drive, micro-controller, smooth and comfortable
• 220V or 380V specialized motor which is more professional and effective
• Special traction machine bracket fixed on guide rail that assures no pressure on shaft wall
• Excellent at energy saving with simple outer looking and vibration proof

Key Components

1. Elevator Traction Machines

Special purpose PM gearless traction machine for villa elevator, the motor has Ф240 wheel diameter and its unique structure lowered the total height of the motor and reduces the overhead requirement.

2. Elevator Door System

Adopts VVVF technology and it ensures noiseless and smooth operation.

3. Control System adopts Full Serial Villa Elevator Controller

Adopts FPGA+DSP control platform with strong data processing capacity, anti-interference design, safety protections for both elevator control and drive system control, which ensure the super reliability and stability of our home elevator.

2.2kw low power is specially designed for villa elevator.

4. Elevator Safety Components

Speed governor, safety gear, oil buffer, guide shoe and rope brake ,all safety components parts are carefully selected from top-grade professional factories, fully comply with GB7588-2003 standard ( equivalent to the EN81-1: 1998 standard), featuring professional product design, high quality, passing national type testing certification.

Cabin Design

Wellift residential home elevators or villa elevator cabin uses new materials, new craft decoration;

It’s fashionable, beautiful and useful. Excellent choices for users, that ranges from various painted steel,

Mirror stainless steel, hairline stainless steel, vibration stainless steel, etching stainless steel, etc.

You may choose the finishing matches that suit the building design.

Interface

Wellift residential home elevators or villa elevator ergonomic COP Design with high resolution convenience for operation & better sensitivity ensue the entire feeling comfortable.

Standard Design

Wellift standard cabin is of simple and fashionable design, which is harmonious with various building styles.
1. Three types of landing door frame are available to suit different building designs.
2. Cabin wall is with optional designs. Materials are painted steel, stainless steel, mirror steel etc. for choice.
3. Ceiling is optional in standard styles.
4. The platform is high-quality plastic floor, or reserve space to lay down stone plate according to client's favor.
5. Optional color patterns of landing doors

The car and landing door of residential home elevators or villa elevator have been heightened with special design:

1. The car has been lengthened from standard 2.0m to 2.1m;
2. The landing door has been lengthened from standard 1.9m to 2.0m.

3. Dimension of cabin and opening door can be customized according to the actual site condition.

Function for Residential Home Elevators and villa elevator

Please feel free to contact us if you have any need for our products. Also you can visit our company website www.wellift.com to download product catalogues.
