Various Dumbwaiter Elevator / Service Lift Speed 0.4-1.0M/S Load 100-500KG
Various Dumbwaiter Elevator / Service Lift Speed 0.4-1.0M/S Load 100-500KG
Specifications
Brand Name :
WELLIFT
Model Number :
S500
Certification :
Special Equipment Type-examination Certificate
Place of Origin :
China
MOQ :
One Unit
Price :
USD3000 --- USD10000 per unit
Payment Terms :
T/T, L/C
Supply Ability :
1000 Unit per month
Delivery Time :
30 work days
Packaging Details :
Export package
name :
Service Lift
Shaft :
without shaft (100kg to 300kg)
Main Power :
380V, 3PH, ±7% 50Hz
Machine room :
without
Standard Control :
PLC Control
Capacity :
100kg - 300kg
Rated speed :
≤1.0 M/S
Cabin Material :
Stainless Steel
Type :
window type, floor type
Standard Door :
Manual up / down
Description

Dumbwaiter Elevator and Service lift speed 0.4~1.0m/s load 100kg~500kg

Our Dumbwaiter elevator and Service Lift are of high configurations and complete functions, and are built with dependable quality to last a lifetime.

1. If you need Service Lift, please send complete information to us, we will offer the detail diagram to you for reference.

2. If you building have been finished, please offer us the layout, we can design the dumbwaiter according to the actual site condition for you.

3. If you need dumbwaiter, you also can refer to our standard size as below:

Model

Load Kg

Type

Car Size

Shaft size

Top layer height

Pit depth

Preserved door opening size

CW

Width

CD

Depth

CH

Height

SW

SD

P

JW

JH

SH

TW12-100

100

Window

Type

Up/down

Bi-parting door

600

600

800

920

920

≥3000

-----

750

1050

650

TW12-100

100

600

700

800

920

1020

≥3000

-----

750

1050

650

TW12-100

100

700

700

800

1020

1020

≥3000

-----

850

1050

650

TW12-200

200

800

800

800

1120

1120

≥3000

-----

950

1050

650

TW12-250

250

1000

1000

1000

1320

1280

≥3500

-----

1200

1250

650

Model

Load Kg

Type

Car Size

Shaft size

Top layer height

Pit depth

Preserved door opening size

CW

Width

CD

Depth

CH

Height

SW

SD

P

JW

JH

SH

TW12-200

200

Floor

Type

Side

opening collapsible

door

800

800

1000

1120

1100

≥2800

≥700

1060

1250

---

TW12-200

200

800

900

1000

1120

1200

≥2800

≥700

1060

1250

---

TW12-200

200

900

900

1000

1220

1200

≥2800

≥700

1160

1250

---

TW12-250

250

1000

1000

1000

1320

1280

≥2800

≥700

1260

1250

---

TW12-300

300

1000

1000

1170

1320

1280

≥3000

≥700

1260

1420

---

Standard Specification of Dumbwaiter elevator / Service Lift

Load(Kg) 100, 200, 300, 400, 500
Speed(m/s) 0.4, 0.75, 1.0
Most Stops 12
Max. Journey 50m

Dumbwaiter elevator / Service Lift Standard Configurations

1.

The control system adopts PLC control, serial communication and frequency control (Optional)

2

Equipped with service lift-use traction machine

3

Special door slide technology introduced from Italy

4

New generation of electromechanical integrated hall door lock-master/slave double lock (imported) together with electric locking system is more safe and reliable

5

All door system components, such as landing door, jamb and landing door device, are assembled tested in factory before delivered as a complete system, as well as the car door(optional)and door system

6

Equipped with service lift-use water-and oil-proofing buttons and digital calling board

7

Elevator steel frame is made of high corrosion-resistant hot-dip galvanized sheet of one-step forming structure which increases the structural strength of the elevator in addition to anti-corrosion, and is easier and more convenient for installation

8

Equipped with service lift-use rail -cold-drawn T-type solid rail

9

Door opening method: electric unlocking and manual up/down bi-parting door.

Perfectness Improvement

1.

New generation of door-motor system together with wholly delivered landing door system after factory assembling and testing ensures high installation quality and less failures.

2

Water- and oil-proof buttons and digital calling board is more suitable for special working environment of service lift and dumbwaiter lift.

Control system function for Dumbwaiter elevator / Service Lift

Calling landing section

Water- proof and oil-proof calling board and digital display panel

Specially designed for working environment of service lift and dumbwaiter lift.

Sweet arrival prompt--Friendly arrival bell

Electrically locking function

The station calling board is equipped with electric lock for opening /closing the control circuit of lift

Calling response function

After pressing the calling button, the digital button LED for the called floor will light up.

And the memory will be canceled and the LED will be off after arrival

Control section

Fault display function

Display the diagnosed fault via corresponding code.

Contactor adhesion protection function

If the contactor coil fails to break after power loss, then prevent it from rerunning for safety purpose

Door opening/closing indication function

The landing door opens after the lift reaches the floor, and the status is displayed in digital to prompt the lift is operating in the current floor.

Running fault protection function

The lift stops after exceeding normal running time for 10 seconds to avoid burning of motor.

Running direction display function

The running direction is displayed via Up/Down flashing arrow.

Door-motor section

Equipped master/slave double lock function for landing door device as well as locking detection function

Electric locking door-motor system function

Avoid contact of door vane during operating, thus to improve the safety and reliability of lift

Electric unlocking of hall door via door-motor system

Push the opening button for each floor to unlock electrically after the lift reaches the floor

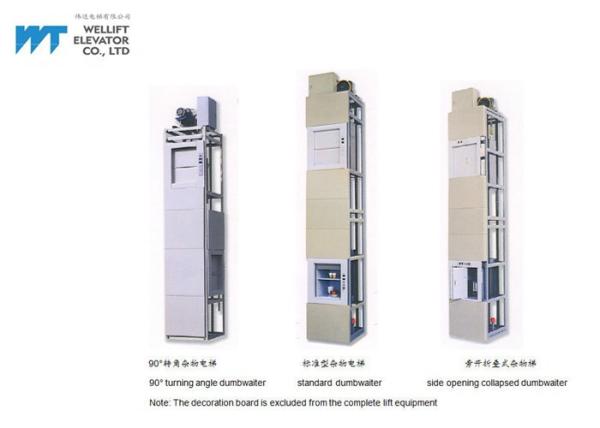

Lift structure

The service lift with capacity of 100kg-300kg is of frame structure. Machine room or well is not required

Various Dumbwaiter Elevator / Service Lift Speed 0.4-1.0M/S Load 100-500KG

Various Dumbwaiter Elevator / Service Lift Speed 0.4-1.0M/S Load 100-500KG

Please feel free to contact us if you have any need for our products. Also you can visit our company website www.wellift.com to download product catalogues.
