1.

The control system adopts PLC control, serial communication and frequency control (Optional)

2

Equipped with service lift-use traction machine

3

Special door slide technology introduced from Italy

4

New generation of electromechanical integrated hall door lock-master/slave double lock (imported) together with electric locking system is more safe and reliable

5

All door system components, such as landing door, jamb and landing door device, are assembled tested in factory before delivered as a complete system, as well as the car door(optional)and door system

6

Equipped with service lift-use water-and oil-proofing buttons and digital calling board

7

Elevator steel frame is made of high corrosion-resistant hot-dip galvanized sheet of one-step forming structure which increases the structural strength of the elevator in addition to anti-corrosion, and is easier and more convenient for installation

8

Equipped with service lift-use rail -cold-drawn T-type solid rail

9

Door opening method: electric unlocking and manual up/down bi-parting door.

1.

New generation of door-motor system together with wholly delivered landing door system after factory assembling and testing ensures high installation quality and less failures.

2

Water- and oil-proof buttons and digital calling board is more suitable for special working environment of service lift and dumbwaiter lift.

Calling landing section

Water- proof and oil-proof calling board and digital display panel

Specially designed for working environment of service lift and dumbwaiter lift.

Sweet arrival prompt--Friendly arrival bell

Electrically locking function

The station calling board is equipped with electric lock for opening /closing the control circuit of lift

Calling response function

After pressing the calling button, the digital button LED for the called floor will light up.

And the memory will be canceled and the LED will be off after arrival

Control section

Fault display function

Display the diagnosed fault via corresponding code.

Contactor adhesion protection function

If the contactor coil fails to break after power loss, then prevent it from rerunning for safety purpose

Door opening/closing indication function

The landing door opens after the lift reaches the floor, and the status is displayed in digital to prompt the lift is operating in the current floor.

Running fault protection function

The lift stops after exceeding normal running time for 10 seconds to avoid burning of motor.

Running direction display function

The running direction is displayed via Up/Down flashing arrow.

Door-motor section

Equipped master/slave double lock function for landing door device as well as locking detection function

Electric locking door-motor system function

Avoid contact of door vane during operating, thus to improve the safety and reliability of lift

Electric unlocking of hall door via door-motor system

Push the opening button for each floor to unlock electrically after the lift reaches the floor

Lift structure

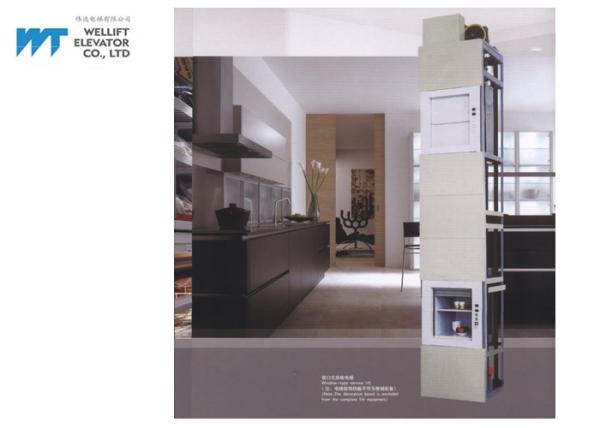

The service lift with capacity of 100kg-300kg is of frame structure. Machine room or well is not required
