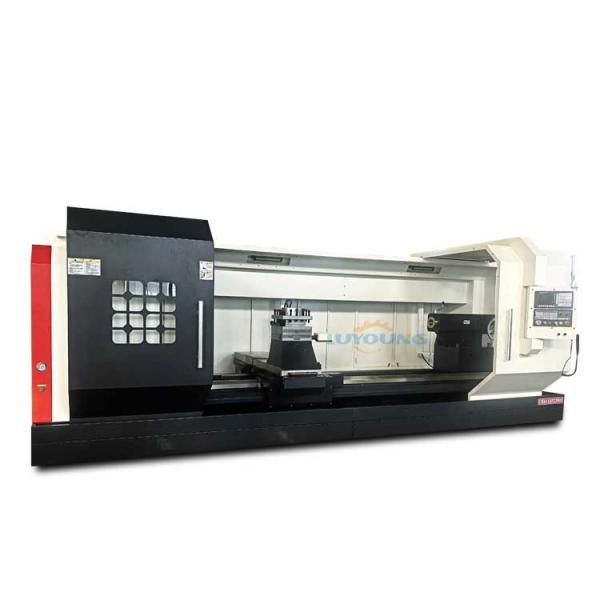

Big Size Ck61140x3000 Distance Between Two Centers Cnc Turning Machine
Big Size Ck61140x3000 Distance Between Two Centers Cnc Turning Machine
Big Size Ck61140x3000 Distance Between Two Centers Cnc Turning Machine
Big Size Ck61140x3000 Distance Between Two Centers Cnc Turning Machine
Big Size Ck61140x3000 Distance Between Two Centers Cnc Turning Machine
Big Size Ck61140x3000 Distance Between Two Centers Cnc Turning Machine
Big Size Ck61140x3000 Distance Between Two Centers Cnc Turning Machine
Big Size Ck61140x3000 Distance Between Two Centers Cnc Turning Machine
Specifications
Brand Name :
cnc lathe machine
Model Number :
CK61140
Certification :
CE
Place of Origin :
SHANDONG
MOQ :
1/SET
Price :
$25000-$38000
Payment Terms :
T/T
Supply Ability :
30/SET
Delivery Time :
30DAYS
Packaging Details :
non-fumigation wooden box
Through Bar Diameter :
Metric φ140/MT6
Tool Post Stations :
8, 6, 4
Distance Between Centres :
3000mm
Cnc Or Not :
Cnc
Precision :
High Precision
Total Power :
15kw
Function :
Metal Machining
Number Of Axes :
2
Bed Type :
Flat Bed
Structure :
Flat Bed Lathe
Coolant System :
Automatic
Control System :
CNC
Spindle taper :
A2-15
Description

Big size ck61140x3000 distance between two centers cnc turning machine

Big Size Ck61140x3000 Distance Between Two Centers Cnc Turning Machine

Big Size Ck61140x3000 Distance Between Two Centers Cnc Turning Machine

Specification

SPECIFICATIONS
Units
CK61100
CK61125
CK61140
Swing over bed
mm
1000
1250
1400
Swing over cross slide
mm
610
850
1000
Distance between centers
mm
1500/3000/4000/5000/6000
1500/3000/4000/5000/6000
1500/3000/4000/5000/6000
Guideway width
mm
755
755
755
Max. load capacity
T
6
6
6
Spindle bore
mm
130
130
130
Spindle bore taper
-
Metric φ140/MT6
Metric φ140/MT6
Metric φ140/MT6
Spindle nose type
-
A2-15
A2-15
A2-15
Spindle speed steps
-
VF. 4 steps
VF. 4 steps
VF. 4 steps
Spindle speed range
rpm
4-300
4-300
4-300
Chuck
mm
φ800 4-jaw manual
φ1000 4-jaw manual
φ1000 4-jaw manual
Turret/tool post
-
Eletric 4 position
Eletric 4 position
Eletric 4 position
Tool size
mm
40 x 40
40 x 40
40 x 40
X axis travel
mm
520
620
720
Z axis travel
mm
1350/2850/3850/4850/5850
1350/2850/3850/4850/5850
1350/2850/3850/4850/5850
X axis rapid traverse
mm/min
4000
4000
4000
Z axis rapid traverse
mm/min
6000
6000
6000
Tailstock quill diameter
mm
φ160
φ160
φ160
Tailstock quill taper
-
MT6
MT6
MT6
Tailstock quill travel
mm
300
300
300
Main spindle motor
kw
22
22
22
Coolant pump motor
kw
0.125
0.125
0.125
Weight for 1500
kg
10000
11000
12000
Weight for 3000
kg
11500
12500
13500
Weight for 4000
kg
12500
13500
14500
Weight for 5000
kg
13500
14500
15500
Weight for 6000
kg
14500
15500
16500
Dimension for 1500
mm
5000x2100x2100
5000x2250x2300
5000x2250x2300
Dimension for 3000
mm
6500x2100x2100
6500x2250x2300
6500x2250x2300
Dimension for 4000
mm
7500x2100x2100
7500x2250x2300
7500x2250x2300
Dimension for 5000
mm
8500x2100x2100
8500x2250x2300
8500x2250x2300
Dimension for 6000
mm
9500x2100x2100
9500x2250x2300
9500x2250x2300
Product Description
CK61140 CNC turret horizontal lathe machine for steel with turning, high-efficiency automated machine tools, the whole machine with integrated protection structure, beautiful
appearance. Mainly used for complex shape parts or high precision parts processing, can automatically complete internal and external Round surface, conical cotton, round face, end face, a variety of threads, drilling, hinge, boring and other turning. The machine is tested in strict accordance with the inspection procedure. Each machine adopts laser interferometer to detect X and Z axis positioning accuracy and repeat positioning accuracy to ensure the accuracy and reliability of the machine.
Products feature
Standard Configuration :
♥- System:GSK980. X/Z axis servo motor.
♥- Manual 3-jaw chuck.
♥- 4-station electric tool post.
♥- Manual tailstock
♥- Cooling system.
♥- Lighten system.
♥- Automatic lubrication system.
Optional Configuration:
♦- CNC system: Siemens, Fanuc, KND.
♦- Hydraulic chuck/Pneumatic chuck.
♦- Hydraulic tailstock/Pneumatic tailstock.
♦- Horizontal 6-station turret/8-station turret.
♦- Auto bar feeder
♦- Chip conveyor
