Specifications
Brand Name :
cnc lathe machine
Model Number :
CK6180
Place of Origin :
SHANDONG
Certification :
CE
MOQ :
1/SET
Price :
$15000-$25000
Payment Terms :
T/T
Supply Ability :
30/SET
Delivery Time :
30DAYS
Packaging Details :
non-fumigation wooden box
Distance Between Centres :
3000mm
Spindle Speed Ranges :
100~1600r/min
Positioning Accuracy :
0.01
Tool Post Stations :
6, 4,8
Coolant System :
Yes
Spindle Head Type :
A2-5
Machine Dimension :
2/2.3*1.5*1.7
Cnc Control :
GSK Or FANUC
Cnc Control System :
GSK
Spindle Motor Rate :
7.5kw
Max Turning Length :
Over 500mm
Usage :
Metal Machining
Power :
10kw/h
Through Spindle Hole :
70mm
Diameter Of Sleeve :
75mm
Tool Width :
25mm
Center Distance :
750/1000/1500
Spindle Motor Power :
Over 10kW
Spindle Motor :
11kw
Spindle Head :
A2-6/MT6
Machinery Test Report :
Provided
Description

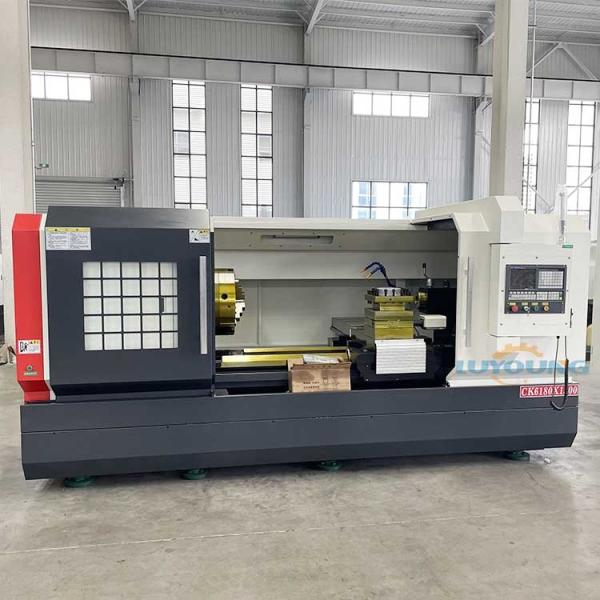

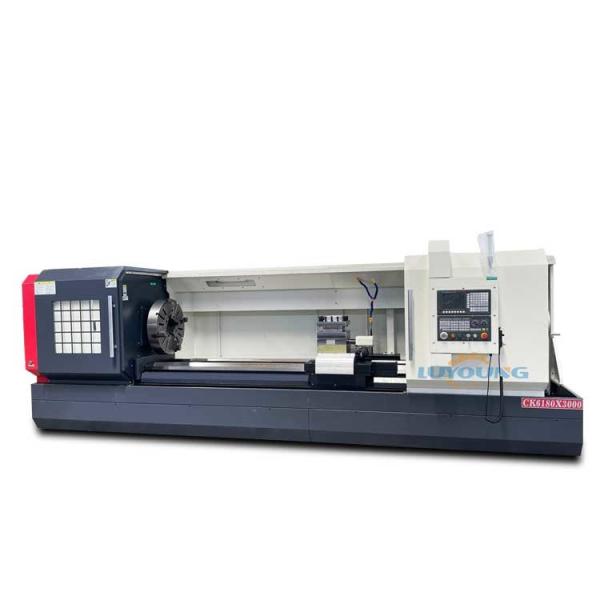

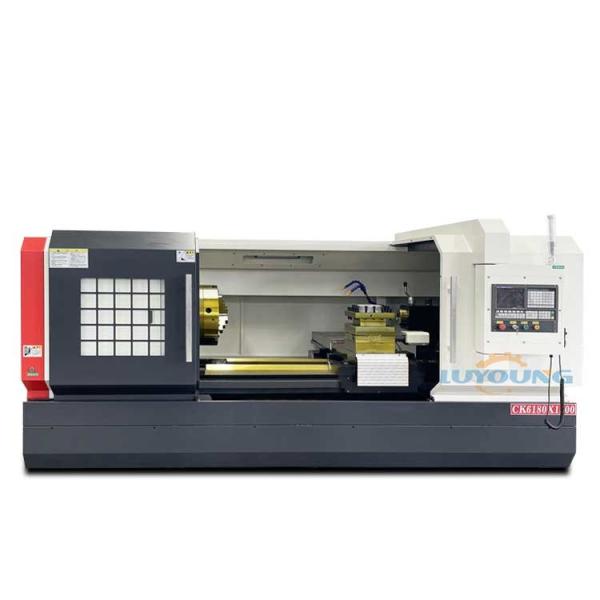

CK6180 CNC Lathe Machine with GSK or FANUC Control and heavy duty lathe

Specification
specification
CK6180A-1
Max. swing over bed (mm)
800
Max. swing dia. over cross slide(mm)
500
Max.processing length(mm)
1000
Form
Three gears No grade to change frequency
Number of spindle speed
No grade
Range of spindle speed(r/min)
25-850 rpm
The spindle terminal structure
C11
Diameter of spindle bore (mm)
105
The taper of spindle front-end
(Metric)120 1:20
Power of main motor (KW)
11KW
Max.travel of tool post (mm)
X:530 Z:1200
Fast moving feed speed (mm/min)
X:4000 Z:5000
Resetting accuracy(mm)
X:0.012 Z:0.016
Processing accuracy(mm)
IT6-IT7
Surface roughness
Ra1.6
Sleeve diameter of tailstock (mm)
100
Sleeve travel of tailstock (mm)
250
Cone hole taper of tailstock’s sleeve
MT6
Standard configuration
Four-station vertical electrical knife rest
Alternative configuration
Horizontal Six-station electrical knife rest
Restting accuracy (mm)
0.01
Length of section of knife handle (mm)
30*30
Length*width*height
3200*1820*1780
Net weight (Kg)
4100

Product Description
CK6180 flat Bed cnc lathe series CNC lathe is a kind of economical and practical universal processing machine tool, the product structure is mature, the performance quality is stable and reliable, widely used in the machining of automotive, petroleum, military and other industries. The series of machine tools have complete specifications, which can realize the inner and outer surface of shaft, sleeve and disk, cone, arc, thread, boring and reaming processing, and can also realize non-circular curve processing. The machine has high efficiency and good consistency, which is especially suitable for rotating processing of various and small and medium-sized batch parts. Easy programming, simple operation, according to the needs of users to choose different CNC systems and nearby. CK6180 CNC lathe operating status obvious information display electrical system to use the indicator light to do the operation display, electrical components to have status indication, fault indication, there are obvious safety operation identification. The electrical system should reflect the humanized design, such as the operation of the 6180 CNC lathe and the average height and distance of the human body, reflecting the characteristics of convenient operation, comfort and easy observation, especially to touch the emergency stop button at any time to ensure rapid operation in emergency situations; The color of CNC lathes is not only in line with the standard, but also beautiful and obvious.
Product Feature
1. ck6180 CNC machine tool has beautiful appearance, reasonable structure, wide use and easy operation. 2. The spindle is supported by high-precision rolling bearing with high rotation accuracy. High precision ball screw is used to drive the longitudinal drag plate, which has good dynamic performance and high positioning accuracy. 3. The guide rail of the machine tool is made of wear-resistant cast iron and quenched by super audio frequency, and the hardness is above HRC45℃, which can ensure the processing accuracy for a long time. 4. Considering the easy vibration during turning, the high strength base is designed and the bed is widened, so it is especially suitable for strong turning. 5. Workpiece clamping form: 1. Three-jaw chuck clamping. 2. Spring chuck clamping, for user choice 6. Automatic feeding rack can be selected according to user requirements.
