Specifications
Condition :
New
Spindle Taper :
BT40
No. of Spindles :
Single
Type :
VERTICAL
Dimension(L*W*H) :
4300*3200*3100
Weight (T) :
13
Table Size (mm) :
1700*800
CNC Control System :
GSK
Table Travel (X) (mm) :
1500 mm
Table Travel (Y) (mm) :
800 mm
Table Travel (Z) (mm) :
700 mm
Positioning Accuracy (mm) :
0.01 mm
Repeatability (X/Y/Z) (mm) :
0.003
Range of Spindle Speed(r.p.m) :
0 - 8000 r.p.m
Max. Table Load(kg) :
1500 kg
Min. Time of Tool Change(s) :
6
Tool Magazine Capacity :
16, 24
Key Selling Points :
Automatic
Warranty :
1 Year
Place of Origin :
Shandong, China
Brand Name :
lu young
Voltage :
380V
Marketing Type :
New Product 2024
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Machining Capacity :
Heavy Duty
Rapid Feed Speed(mm/min) :
0 - 24000 mm/min
After-sales Service Provided :
Engineers available to service machinery overseas
Machine Type :
Stronger Rigidity Vertical Machine Center
Spindle speed :
50-8000 Rpm
Control system :
FANUC/SIEMENS/KND
Spindle taper :
BT40-150mm
X, Y servo motor :
3.0kw
Z servo motor :
3.0kw
Use source gas pressure :
0.6-0.8mpa
maximum load workbench. :
1500
Price :
$36,000.00/sets >=1 sets
Description
VMC machine 5 axis high speed cnc milling machine VMC1580 cnc milling machining center
Machining Capacity Heavy Duty 5 Axis VMC1580 CNC Milling Machine for High Speed Machining
Specification
Item
VMC1580
Size of worktable(length×width)mm
1700*800
T slot (mm)
5-22x150
Max loading weight on worktable
1500
X-Axis travel(mm)
1500
Y-Axis travel(mm)
800
Z-Axis travel(mm)
700
Distance between spindle nose and table
170-840
Distance between spindle
center and column(mm)
810
Spindle taper
BT50-155
Max. spindle speed( rpm)
8000/10000/12000
Spindle motor power(Kw)
18.5kw
Rapid feeding speed: X,Y,Z axis m/min
16/16/16 (24/24//24 liner guidway)
Fast cutting speed m /min
10m/min
Positional accuracy
±0.01 mm
Repeat positional accuracy
±0.005mm
Auto Tool changer type
16 tools head type tool changer(optional 24 arm type auto tool changer)
Max. tool length
300mm
Max. Tool diameter
Φ80(adjacent tool)/φ150(not adjacent tool)
Max.tool weight
8kg
Tool changing time(tool-to-tool)
7sec
Air pressure
0.6 Mpa
Machine weight
13000KG
Overall sizse(mm)
4300*3200*3100
Machining Capacity Heavy Duty 5 Axis VMC1580 CNC Milling Machine for High Speed Machining

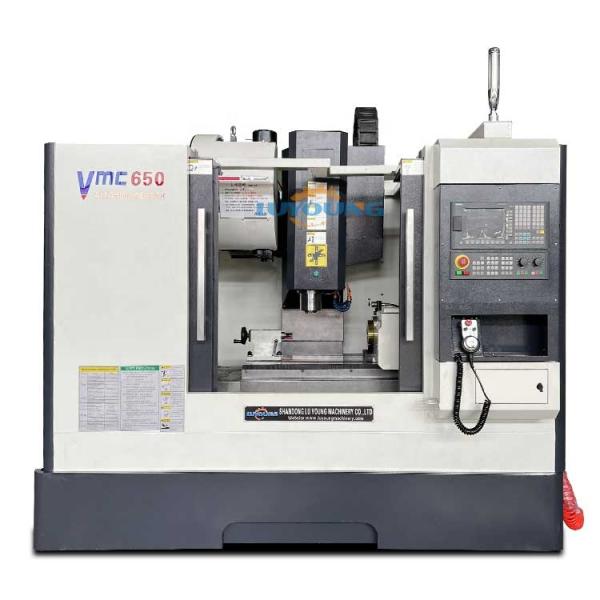

VMC650

Table size:900*400(mm)vmc650
Travel of 3 axis(x.y.z)
700*450*500(mm)

Machining Capacity Heavy Duty 5 Axis VMC1580 CNC Milling Machine for High Speed Machining

VMC850/VMC855

Table size:1000*500(mm)vmc850
Travel of 3 axis(x.y.z)
1000*500*500(mm)
Table size:1000*550(mm)vmc855
Travel of 3 axis(x.y.z) 1000*500*500(mm)
Machining Capacity Heavy Duty 5 Axis VMC1580 CNC Milling Machine for High Speed Machining

VMC1060/VMC1160

vmc1060
Table size:1300*600(mm)Travel of 3 axis(x.y.z)
1000*600*600(mm)
vmc1160 Table size:1300*600(mm)
Travel of 3 axis(x.y.z) 1100*600*600(mm)
Machining Capacity Heavy Duty 5 Axis VMC1580 CNC Milling Machine for High Speed Machining
VMC1270/VMC1370
Table size:1300*600(mm)Travel of 3 axis(x.y.z)
1000*600*600(mm)
vmc1370 Table size:1300*600(mm)
Travel of 3 axis(x.y.z) 1100*600*600(mm)
Machining Capacity Heavy Duty 5 Axis VMC1580 CNC Milling Machine for High Speed Machining

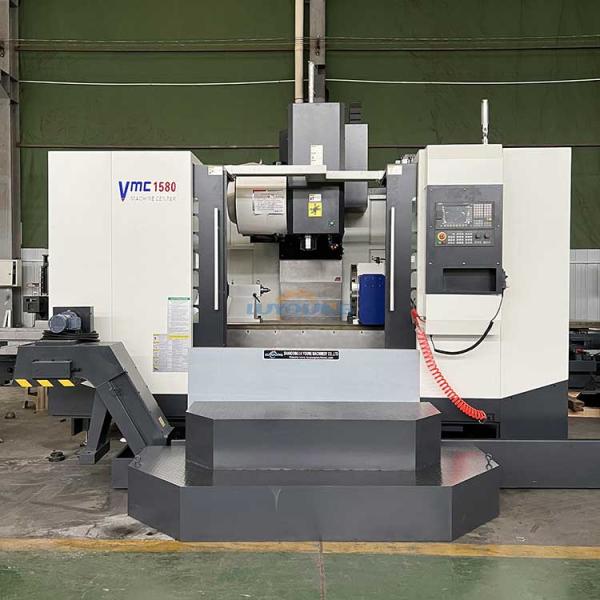

VMC1580
Table size:1700*800(mm)
Travel of 3 axis(x.y.z)
1500*800*700(mm)
Machining Capacity Heavy Duty 5 Axis VMC1580 CNC Milling Machine for High Speed Machining
Product Description
The CNC turning and milling center lathe machine vmc1580 5-axis high-speed CNC vertical machining center Main Functions of CNC Vertical Machining Center CNC vertical machining center use popular inverted T-shape column structure, it is morden machine tool with automatic tool changer and 3/4-axis CNC system. Continous & automatic milling, drilling, expanding, hinges and tapping on 4 surfaces' machining processes after once clamped, suitable for medium batch process all kinds of flat surface, hole, complicated surfaces machining. Saving processes, shorten production cycle, improved processing accuracy, it is the ideal machining equipment for automobile; construction mechanical; air; aerospace.
Machining Capacity Heavy Duty 5 Axis VMC1580 CNC Milling Machine for High Speed Machining

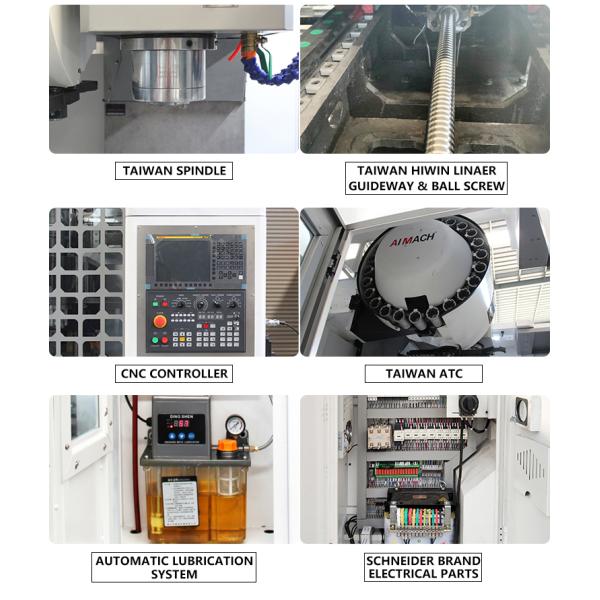

Products feature
Main Features of VMC machine 5 axis high speed cnc milling machine VMC1580 cnc milling machining center 1. Rigid base with integral structure adopted 2. Good durability with cast iron machine bed made through super audio quenching 3. Good dynamic performance with advanced guide rail laminating technology 4. High precision, high-rigidity spindle, high speed 5. Sufficient precise lubrication with automatic lubrication system 6. Row knife structure which can change knifes very fast, high positioning accuracy and simple maintenance 7. Wide range of machining products due to the travel distance of X direction is up to 270mm and variety of knife tools can be installed on the machine tool 8. Spring chuck with high accuracy and high efficiency 9. Good protection function with fully-closed safe glass window 10. Modular design and optional accessories available on customer's needs
Company Profile
Machining Capacity Heavy Duty 5 Axis VMC1580 CNC Milling Machine for High Speed Machining
Company specializing in CNC machinery research and development in 20 years, we have good technology, and advanced team, to provide efficient service, for the ball more than 40 countries research and development, production, sales of the company.CNC lathe, CNC milling machine, machining center Our company has independently developed a series has established a large number of special machine tools for many enterprises, whose products are reliable.Price discount, deeply loved by new and old customers.High-quality finished products, perfect pre-sales and after-sales service, is our company's quality purpose, is the pursuit of all employees of our company, is also the guarantee of the majority of users' trust.
Packing & Delivery
Machining Capacity Heavy Duty 5 Axis VMC1580 CNC Milling Machine for High Speed Machining


Our packing is standard sea export plywood box, which can guarantee the quality of the goods and also reduce the loss.
The mode of transportation is by sea.
You can also pack and transport according to your requirements

our services
Machining Capacity Heavy Duty 5 Axis VMC1580 CNC Milling Machine for High Speed Machining
1. The warranty period of our products is one year. If there is any damage in the warranty period, we will send it to you for free.We provide 24-hour online technical service and contact us at any time.
2. 365 days without false service, uninterrupted supply, pre-sales consultation, after-sales service and other technical support We also offer free technical training and overseas services.
Exhibition
Machining Capacity Heavy Duty 5 Axis VMC1580 CNC Milling Machine for High Speed Machining
1. Our customers come from more than 40 different countries and promote the most suitable products for different countries to provide the best service;
2 we participated in many exhibitions, the Chinese machinery exhibition, guangzhou commodities fair, through the exhibition to expand overseas market, we invite customers to visit our factory, also can be customized according to customer demand, through our products and services for customers
FAQ
Warranty period is how long?

A: Our warranty period is one year, during the warranty period we will repair the product for free. Standard parts and accessories
are supplied when shipped using our machines. In the correct operation, if there is any damaged parts or accessories, we will
immediately use air mail or courier instead.

What kind of packaging?

A: We use plywood boxes to ensure the packaging quality durable, fully protect the safety of the cabinet, the appearance of bright
and clean, smooth and beautiful, durable, low cost, heavy load, fear of the sun and rain without moths and so on.

Delivery date is how long?

Our delivery date is one month. 30 days

Does the CNC turning and milling center lathe machine vmc1580 5-axis high-speed CNC vertical machining center can be customized?

Of course, if our standard configuration can not meet your needs, please tell us that we redesign and produce the machine to meet
your needs
