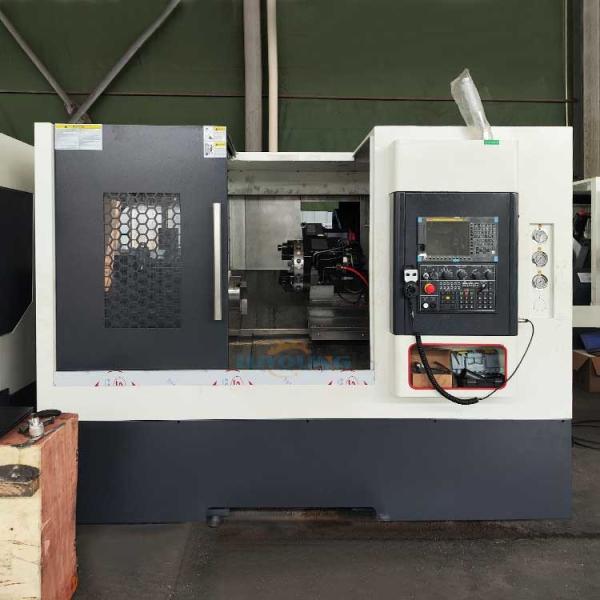

FANUC BMT55 Slant Bed Cnc Lathe Live Tool Turret 4 Axis Cnc Lathe Machine Tool
FANUC BMT55 Slant Bed Cnc Lathe Live Tool Turret 4 Axis Cnc Lathe Machine Tool
FANUC BMT55 Slant Bed Cnc Lathe Live Tool Turret 4 Axis Cnc Lathe Machine Tool
FANUC BMT55 Slant Bed Cnc Lathe Live Tool Turret 4 Axis Cnc Lathe Machine Tool
FANUC BMT55 Slant Bed Cnc Lathe Live Tool Turret 4 Axis Cnc Lathe Machine Tool
FANUC BMT55 Slant Bed Cnc Lathe Live Tool Turret 4 Axis Cnc Lathe Machine Tool
FANUC BMT55 Slant Bed Cnc Lathe Live Tool Turret 4 Axis Cnc Lathe Machine Tool
FANUC BMT55 Slant Bed Cnc Lathe Live Tool Turret 4 Axis Cnc Lathe Machine Tool
FANUC BMT55 Slant Bed Cnc Lathe Live Tool Turret 4 Axis Cnc Lathe Machine Tool
FANUC BMT55 Slant Bed Cnc Lathe Live Tool Turret 4 Axis Cnc Lathe Machine Tool
FANUC BMT55 Slant Bed Cnc Lathe Live Tool Turret 4 Axis Cnc Lathe Machine Tool
FANUC BMT55 Slant Bed Cnc Lathe Live Tool Turret 4 Axis Cnc Lathe Machine Tool
Specifications
Brand Name :
cnc slant bed lathe machine
Model Number :
TCK56
Place of Origin :
SHANDONG
Certification :
CE
MOQ :
1/SET
Price :
$25000-$38000
Payment Terms :
T/T
Supply Ability :
30/SET
Delivery Time :
30DAYS
Packaging Details :
non-fumigation wooden box
Voltage :
220V/380V/415V/Other
Max Swing Diameter :
500mm
Bar Diameter :
52/75
Tailstock Sleeve Diameter :
80
Spindle Head Connection :
C6
Net Weight :
3500kgs
Tailstock Quill Travel :
100mm
Spindle Motor :
7.5kw
Positioning Accuracy :
±0.005mm
Warranty :
One year
Tailstock Sleeve Travel :
80
Applicable Industries :
Manufacturing Plant
Spindle Motor Power :
15/11kW
Spindle Head Form :
A2-5(6
Machine Weight :
3500kg
Tailstock Max Travel :
450
Power :
7.5kw
Z Axis Travel :
300
Turret Stations :
12
Precision :
High precision
Function :
Auto
Description
TCK56 Slant Bed FANUC BMT55 Live Tool 12 Station Power Turret 4 Axis Cnc Lathe Machine Tool
FANUC BMT55 Slant Bed Cnc Lathe Live Tool Turret 4 Axis Cnc Lathe Machine Tool
Specification
parameter
TCK56
Max swing over bed Dia.( mm)
Φ560
Max swing over cross slide Dia.( mm)
Φ330
The distance between two centers( mm)
500/750
X axis travel( mm)
270
Z axis travel( mm)
500/750
X,Z axis feed speed(m/min)
30/36
X/Z axis feed motor powr(kw)
2.4
X/Z axis repeated positioning accuracy
0.005/0.006
X/Z-axis positioning accuracy( mm)
0.01/0.015
Spindle speed( rpm)
10-3000rpm
Spindle nose
A2-6
Spindle bore Dia( mm)
Φ66
Chuck
10” hydraulic chuck
Main motor(kw)
11/15KW
No.of tool holder
12 station
Y axis travel (mm)
90
Tool change time(s)
0.2
Tools size( mm)
25×25
Boring tool size( mm)
Φ32
Tailstock travel( mm)
440
taper of center
MT.NO.4
Coolant capacity(L)
150
L*W*H( mm)
2318*1585*1770
Machine weight(kg)
4500KG
Product Description
The TCK56 Slant Bed FANUC BMT55 Live Tool 12 Station Power Turret 4 Axis Cnc Lathe Machine Tool cnc bar automatic lathe product is a semi-closed slant-bed turning and milling
machine with X, Y, Z and C axes servo control. The structure and external dimensions are compact and reasonable. The spindle (C axis) is driven by a servo motor. It can realize the turning of the outer circle, the end surface and the thread of various materials, such as shafts and discs, and various surface milling and drilling in radial and axial directions, and is suitable for efficient machining of small parts.
Product Feature
Standard configuration:

1) GSK980TB3 controller;
2) 8 stations electric tool post;
3) Linear guideways;
4) With manual tail stock;
5) 8'' manual chuck;
6) Cooling system;
7) Lighten system;
8) Automatic lubrication system;

Optional configuration:

1) CNC system: Siemens, Fanuc, etc.
2) Hydraulic chuck, hydraulic tailstock .
3) 8-station hydraulic turret;
4) Living tools
4 in end+4 in side
3 in end+3 in side
3 in end +2 in side
4 in end
3 in side
5)Automatic Chip conveyor;
Packing & Delivery
1.Non-fumigation packaging, we use seaworthy plywood.
2. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
3.Water-proof and damp proof, water resistant film wraped all the machine.
4.Fully sheathed case,prevention of collision and keep the goods intact.
Our service
1. Warranty for one year.
2.Supply 7×24 hours online technology support.
3.Professional solution one by one.
4.Free training for customers online or in our factory.
5.The oversea service is available.
