CNC Steel Plate Punching Marking Machine

Detailed Product Description

1.CNC Plate Marking and Punching

2. Thickness of range f punching : 6~20/25mm

3. Integrated machine with mechanical,electrical and hydraulic system.PLC control and servo motor drive.

Equipment Features

1.C shape framework features , great rigidity and provides spacious working area.

2.There are three working stations.Stations can change automatically.The clamp system is suitable for workpiece with different thicknesses.There is

stop locater at zero position.Workpiece is supported by woking table with rolling balls.

3.X and Y axis are divided by servo motor and ball screw,the punching position is controlled by bi-axis CNC controlling system.

4.The processing data,which can be used repeatedly,can be input into the controlling system and the processing can be done automatically.

Equipment advantages

1. Integrated machine with mechanical,electrical and hydraulic system.PLC control and servo motor drive.
2. Modular assembling for main functional part,easy maintenance,and with self-diagnostic function.
3. Punching and marking operations are on one plate with less labor force and high stable working accuracy.
4. For programming,either input punching diameter ,position and quantity of workpiece or directly share the data souce with design department on the local network.

Main Technical Specifications

After-sale service

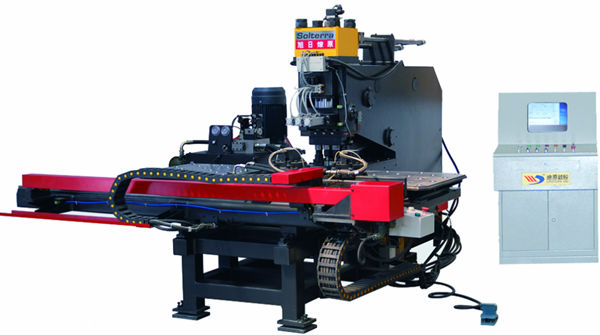

Machine Images

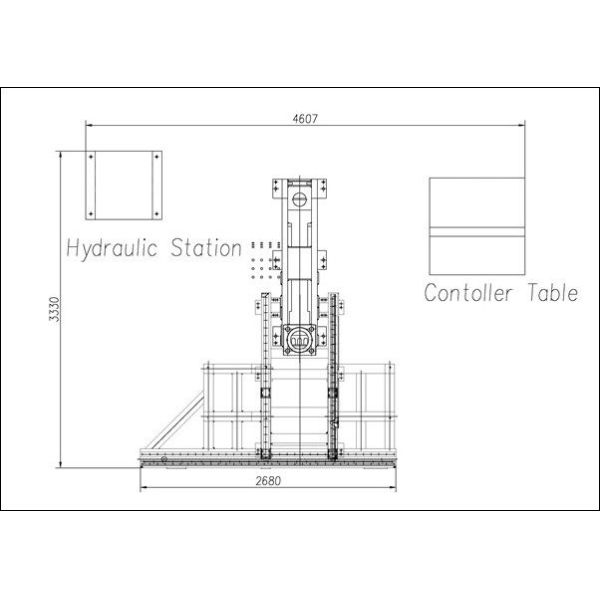

Drawling Shown as belows:

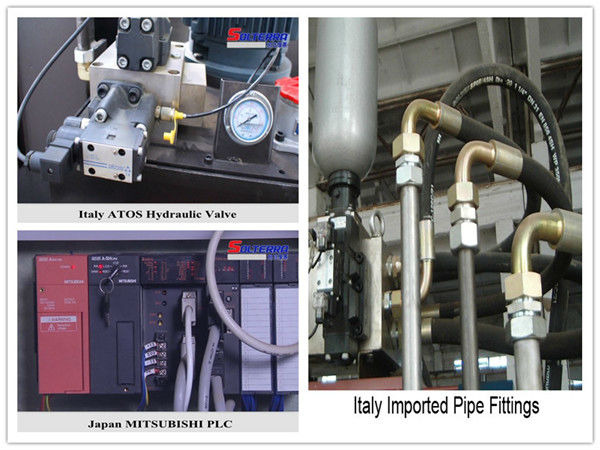

The Main Parts of the machine

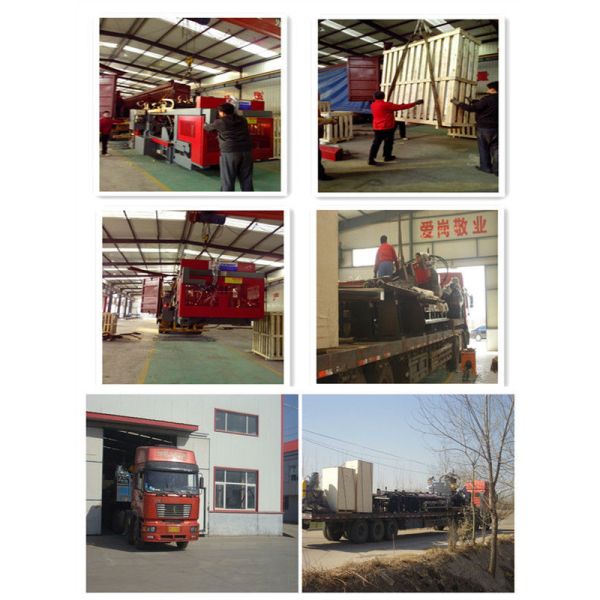

Package of the Machine

Company Profile

Jinan Liaoyuan Machine Co., Ltd, as one of earliest enterprises, With more than 20 years’

development, has developed into a integrated High-tech enterprises. And we are dedicated to produce CNC

Machines, including drilling machine, Band saw,Marking Machine, Notching Machine for Power

transmission tower and steel Structures.

Customers visit Jinan Liaoyuan Machine Co.,Ltd

Contact information

Question 1. Are you a Manufacturer or a trading company?

Answer 1. We are not a trading company,We are the top Machine Manufacturer,Which involves Raw materail casting,Machine body processing,Machine assembling,Painting,Machine quality Inspecting and etc.

Q 2. What is the minimum quantity for order ?

A2: Normaly One Set. and We will give some discounts if you can buy one complete set of Machine.

Q3. Do you have stock product ready to deliver?

A 3. We have many machines in stock, So We can guarantee the fast delivery time and make sure you can check the machine on LIVE-DEMONSTRATION at any time.

Q4. How do you deliver the finished products?

A 4, For FCL, We delivered by Sea

For LCL, We delivered by Sea and by Plane for only urgent requirement

For Spare Parts,We delivered by Courier,TNT, FEDEX,DHL,UPS,EMS, and Etc.

Q5,How can you guarantee the after-sales service?

A 5, We have a first-class engineers for the machine installation, tranining, and after-sales, we also have branch office in ovesea to keep the good after-sales service,They have a professional work team with exquisite experience.

Q6, What's delivery time for the machines.

A 6, We will arrange the shipment within 20 days after receiving the payment.

Q7, Do you inspect the finished products?

A7, Yes, Each step of production products will be camed out inspection by QC department before shipping
