MachineU > China Products > Electrical Equipment & Supplies > Wires, Cables & Cable Assemblies > Wiring Harness

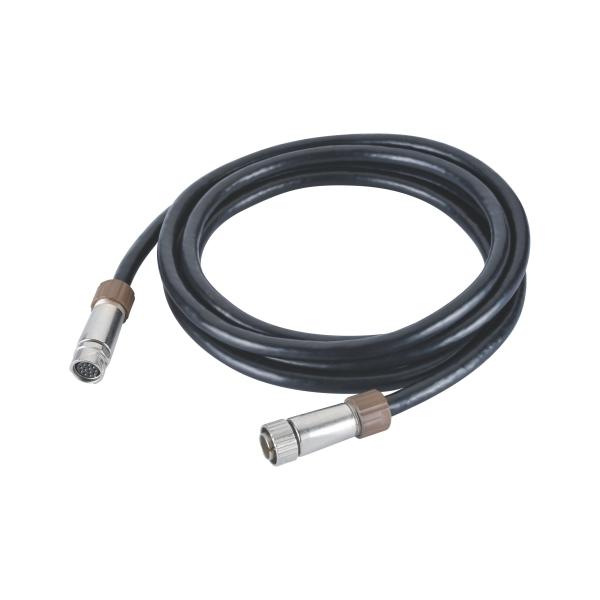

EMC Electrical Wire Harness HRS 12Pin Male To Female Industrial Camera Link Cable
EMC Electrical Wire Harness HRS 12Pin Male To Female Industrial Camera Link Cable
Specifications
Brand Name :
CABLEFORCE
Certification :
UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Place of Origin :
Guangdong, China
MOQ :
100
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
60000 pcs/month
Delivery Time :
2~3 weeks
Packaging Details :
Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Connector Type :
Camera Link Cable
Connector No. :
Assignment Male 12Pin to Assignment Female 12Pin
Rated Current :
1.5A
Rated Voltage :
30V
Cable Specification :
0.14mm² (AWG 26)
Locking System :
Bayonet
Bending Radius :
10×OD
Drag Chain Bending :
2 Million times
Description
Electrical Wire Harness HRS 12Pin Male To Female Industrial Camera Link Cable
Connector Technical Data
Contacts No. Assignment Male 12Pin to Assignment Female 12Pin
Rated current 1.5A
Rated voltage 30V
Impulse voltage 500V
Locking system Bayonet
Termination Soldering
Wire gauge 0.14mm²(AWG 26)
Rated temperature Flexible: -25℃ ~ +80℃
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Contact Male: Brass, Female: Phosphor bronze
Contacts plating Au(Gold)
Bending radius 10×OD
Drag chain bending 2 Million times
Description
The M12 metric size A-Coding connectors, based on IEC 61076-2-101 standard, it is the most commonly used connector in the factory automation. M12 A-Coding connectors mainly designed for sensor and actuator devices. CABLEFORCE M12 A-Coding connectors are developed and designed for harsh industrial and climatic environments, e.g. High temperature range endurance, Hydrolysis resistant, Oil resistant, Corrosion resistant, UV-Resistant, Abrasion resistant, Bending and Drag Chain applicable. M12 A-Coding is a specified single keyway design; including B, C, D, X, S, T, K, L, Y-Coding.

Cableforce Core Benefits

● Free technical consultation
● Free technical drawings
● Samples & prototyping
● Custom labels & packaging
● Using best in class materials
● Certified cables on request
● Guaranteed for life
● Safe and reliable system that is easy to install
● CE, IP67, UL certified
● Manufactured, assembled and tested in our facility
● Excellent weathering, UV and temperature resistance
● High impact strength even
● Ingress protection up to lP68
● Vibration proof connections
● RoHS and REACH compliant
● Excellent chemical resistance: to fuels, oils, alkalies, weak acids
● Free of halogen, LSZH



FAQ

● What is a M12 connector?

The M12 connector is a circular connector with a 12-mm locking thread that is used primarily in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus. M12 connectors are designed for washdown and corrosive environments. They are available with 3, 4, 5, 8, and 12 pins.


● Can i have a sample for test?
Yes, sample order is welcomed, the lead time will be 3-7 days according to your request.

● Do you accept OEM & ODM service?
Yes, we accept OEM service. We wil produce according to your requirment. ODM are also welcomed. Our enginers have more than 10 years experience for waterproof connector industry. We provide our best service for your refer.

● What is the after-sale service?
If any problem cause by our side, we would surely help customers to solve these problems. Refund money, or resend goods, or other ways.
EMC Electrical Wire Harness HRS 12Pin Male To Female Industrial Camera Link Cable
